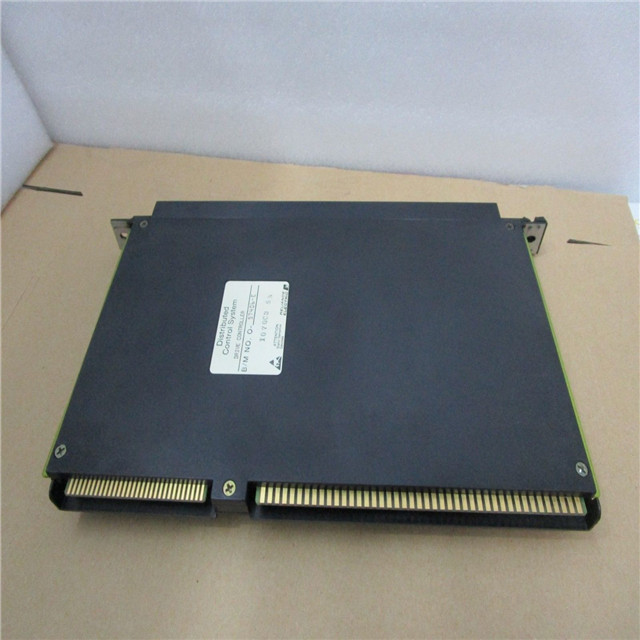

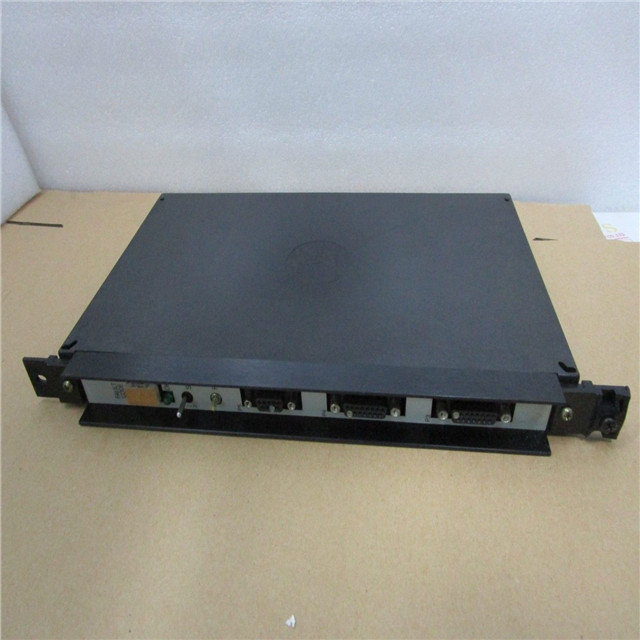

TRICONEX DO 3401 Digital Output Module

​

​

3401 TRICONEX DO 3401 Digital Output Module

​

Points 16, commoned

Nominal output voltage 24 VDC

Specified operational voltage range 15 to 30 VDC

Absolute maximum output voltage 33 VDC

Absolute maximum reverse input

voltage – 0.6 VDC

Output current

Switching 4.8 A, self-limiting

3.0 A, typical

Degraded mode 0.7 A, self-limiting

1.5 A, typical

Field alarms Loss of field power, output point shorted On or Off

Loop-back thresholds 0–5 VDC = Off region

6–14 VDC = transition region

15–30 VDC = On region

Leakage to load (Off state) 1 mA

Diagnostic glitch duration 2 ms, maximum 500 s, typical

Diagnostic fault coverage

Maximum toggle rate 20 ms

Minimum toggle rate Not applicable

On state voltage drop 1.0 VDC @ 1.5 A

Loop-back scan time 1.0 ms for all 16 points

Functional earth to protective earth isolation 500 VDC, minimum

Functional earth to functional earth (logic) isolation 800 VDC, minimum

​​

​

​

​
