Advantech BB-USOPTL4
USB Converters, High Retention USB to RS-422/485 Iso. Converter
Overview

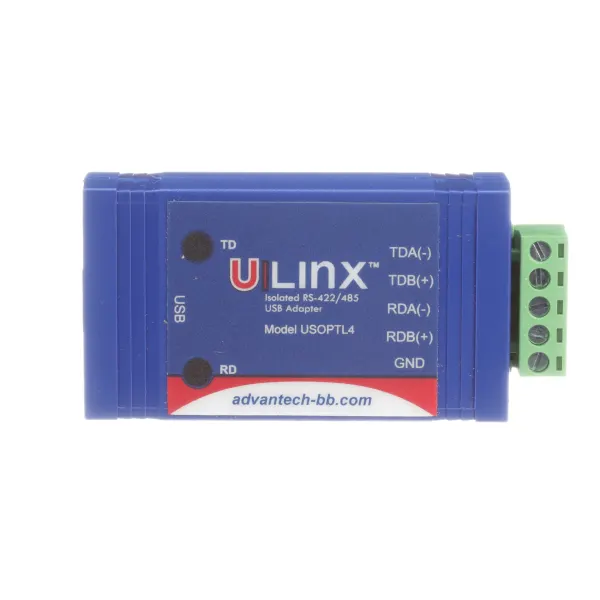

Model BB-USOPTL4 is a USB to one port RS-422/485 converters. Supporting 2-wire RS-485 or 4-wire RS-422/485 communications, these devices are great for applications requiring long range or multi-drop capabilities. Both models use pluggable terminal blocks on the RS-422/485 side. Two LEDs indicate data transmit or receive. Model BB-USOPTL4 includes circuitry with 2000 Volts isolation protection against ground loops and voltage spikes. Both products draw power from the USB port so no power supply is required. Simply install the drivers supplied on CD ROM and plug the converter into an available USB port on your computer or USB hub. The device show ups as an additional COM port in the Windows Device Manager, and is compatible with Windows applications.
Features:
2000 V RMS optical isolation
15KV ESD surge protection
Adds a COM port to your PC
LEDs for transmit and receive lines
USB 1.0, 1.1 and 2.0 compatible (12 Mbps)
Automatic configuration on Windows 2000, XP, Vista. 7 (32/64 bit), 8 (32/64 bit)
No power supply required (powered from USB bus)
