Banner Engineering DX80N2X1S-P6
Wireless, DX Performance, 2.4GHz, Node, 65mW, 1-Wire Serial Interface, 18657
Overview

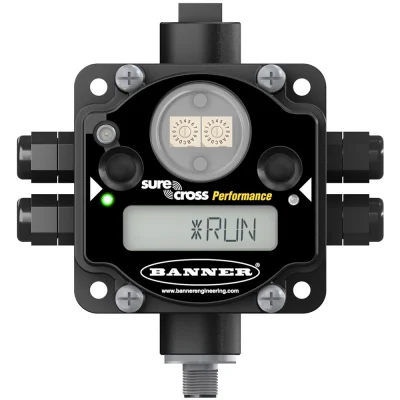

Banner DX80N2X6S-P6 Sure Cross Series — Sure Cross® Performance Node:
The Sure Cross® wireless system is a radio frequency network with integrated I/O that operates in most environments to eliminate the need for wiring runs. Wireless networks are formed around a Gateway, which acts as the wireless network master device, and one or more Nodes.
Features:
Wireless industrial I/O device with a 1-wire serial interface
Selectable transmit power levels of 250 mW or 1 Watt for 900 MHz models and 65 mW for 2.4 GHz models
DIP switches for user configuration
Frequency Hopping Spread Spectrum (FHSS) technology and Time Division Multiple Access (TDMA) control architecture ensure reliable data delivery within the unlicensed Industrial, Scientific, and Medical (ISM) band
Transceivers provide bidirectional communication between the Gateway and Node, including fully acknowledged data transmission
Lost RF links are detected and relevant outputs set to user-defined conditions
