[수입판매] SICK TMM55E-PMH060 Tilt/Angle Sensor

SICK TMM55E-PMH060

​

Tilt/Angle Sensor; 2 axes inclinometer w/analog output and +/-60deg range

​

​

Overview

SICK Family of TMM55, TMS/TMM61, TMS/TMM88 Series – Non-Contact Inclination Sensors | Measurement with Precision:

​

SICK inclination sensors provide non-contact measurement of the angle of an object in relation to the earth's gravity. Through the use of capacitive MEMS technology, SICK’s TMS/TMM family of inclination sensors is both highly precise and extremely reliable. Single dimensional sensors measure the angle of one axis with a range up to 360°, whereas two dimensional sensors are able to measure both X and Y axes simultaneously to a range of ±90°. Interfaces of analog and CANopen are available.

​

Series Features:

Compact 1 and 2 dimensional inclination sensors

Measuring ranges up to 360° ( 1-axis) or ±90° ( 2-axes)

Analog current or voltage interface, or CANopen

Resolution up to 0.01 °

Space-optimized design for applications with limited installation area

Usage under the harshest environments thanks to fully encapsulated electronics

Simple commissioning using PGT-12-Pro hand-held programmer, or fixed plug and play

Configurable filtering for background vibration suppression

​

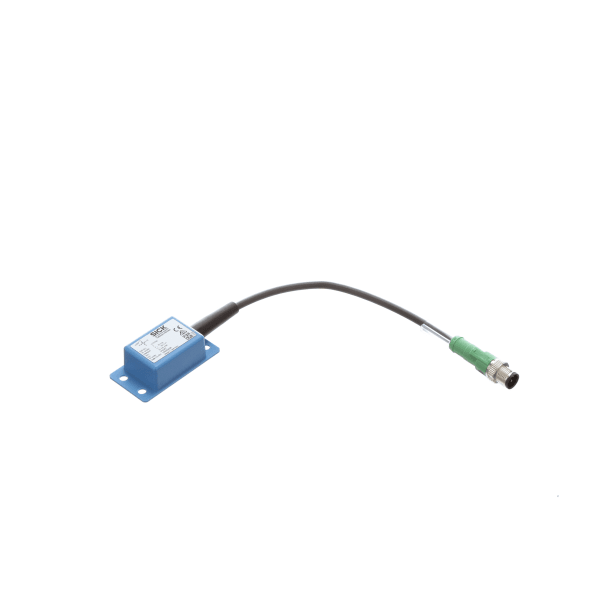

The TMM55 inclination sensors are characterized by their compact design and ruggedness. As well as simple 4-hole mounting, the M12 male connector on the cable outlet also offers a great deal of flexibility when mounting the sensor mechanically. With their rugged and UV-resistant plastic housings, the inclination sensors are also ideally suited to outdoor use. The information about the inclination angle is transmitted via analog current or voltage signals. To ensure high levels of accuracy, the inclination sensors are calibrated at the factory.

​

The TMS/TMM88 inclination sensor is used for reliable leveling of the driver’s cab. Thanks to its efficient filter algorithms to suppress vibrations and its rugged design, it is particularly well suited for use in harsh ambient conditions. Its high accuracy over the entire measuring range and its outstanding temperature stability offer further advantages in such conditions. The compact TMS/TMM61 inclination sensor is used to level the spray boom. Thanks to the sensor, the spray boom level can be adjusted for different terrains, for example. The TMS/TMM61 is suitable for this precise leveling task as it offers high accuracy across the entire measuring range, outstanding temperature stability and compensated cross sensitivity as well as configurable vibration suppression.

​

Features:

Compact, two-dimensional inclination sensor

Fixed measuring ranges: ±10°, ±45°, ±60°

Analog current or voltage interface

Resolution as low as 0.01°

Small and easy-to-mount ABS plastic housing

Protection class up to IP 67

​

Applications:

Agricultural and forestry machinery

Construction machinery and special-purpose vehicles

Solar thermal energy and photovoltaics

Automated guided systems

Crane and lifting technology

Wind power plant

​

​

​​

​

​

​
