[수입판매] Sensata - BEI Sensors 01002-8683

(주)엠이티 M.E.T Co.,Ltd 2022. 5. 23. 17:47

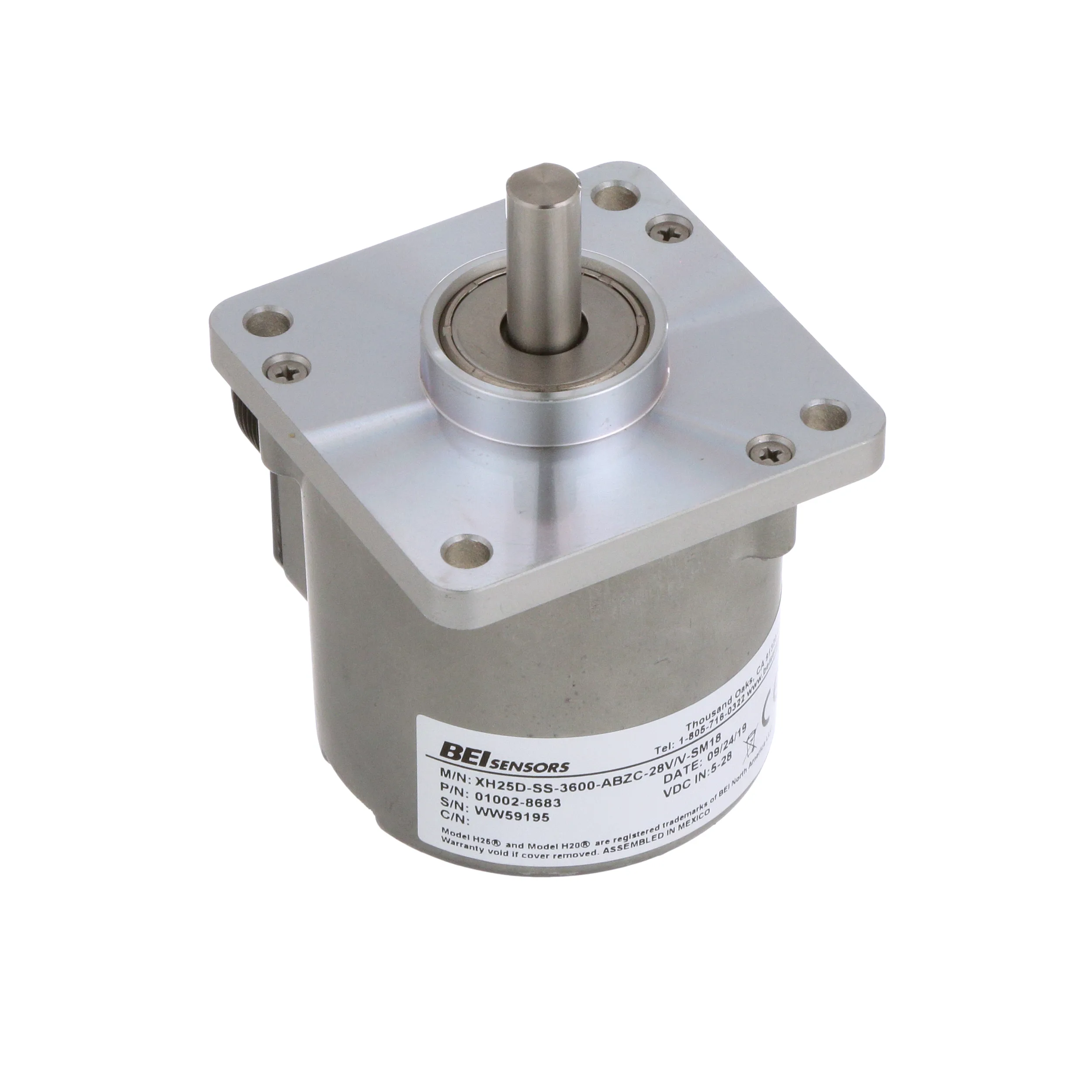

Sensata - BEI Sensors 01002-8683

Encoder, Incremental, Optical, 5-28VDC, 3/8" Shaft, 3600 Cycles/turn, 2 Channel

Overview

BEI Model H25 Incremental Encoders

H25 Incremental Optical Encoders are the flagship of the BEI Sensors product line. Designed from the ground up, they provide instantaneous information on the position of a rotating shaft by producing one square wave cycle per increment of shaft movement. This increment is referred to as the resolution of the encoder and is built directly into the internal hardware of the device on the code disc. By rotating this code disc in the path of a light source, it acts like a shutter and alternately shuts off or transmits the light to a photodetector. By counting this number of cycles, you can tell the position of the shaft, relative to its starting position.

Features:

EMI shielding

40 lb. ABEC 7 bearings

Matched thermal coefficients on critical components

Custom high-efficiency optics

NEMA 4 and 13 requirements (when ordered with the shaft seal or cable gland)

Applications:

Machine control

Process control

Wood processing

Oil well logging

Industrial weighing

Agricultural machinery

Textile

Equipment

Web process control

Robotics

Food processing
