[GIGAIPC] 산업용 임베디드 PC QBiX Pro Series (3.5" Embedded Systems) QBiX-Pro-RPLA1335H-A2

(주)엠이티 M.E.T Co.,Ltd 2024. 11. 4. 13:21

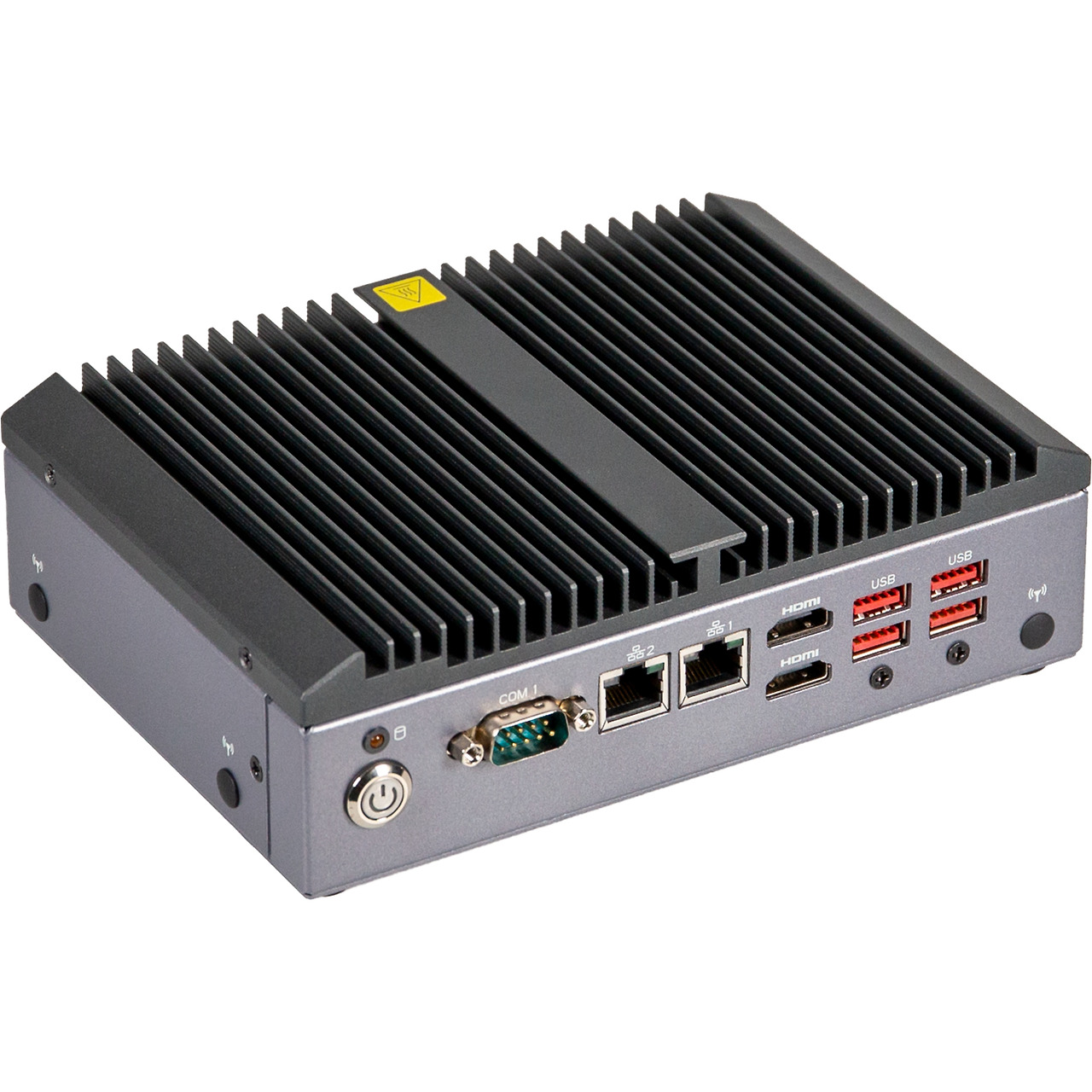

[GIGAIPC] 산업용 임베디드 PC QBiX Pro Series (3.5" Embedded Systems) QBiX-Pro-RPLA1335H-A2

Key Features

Industrial system with Intel® Core™ i5-1335U Processor/ Fanless Design/ Dual Channel DDR4 up to 64GB/ 2 x HDMI



• System Size : 178W x 125D x 52.7H (mm)

• Intel® Core™ i5-1335U Processor

• Dual Channel DDR4, 2 x SO-DIMMs

• 2 x HDMI for Dual display

• 2 x 2.5GbE LAN Ports

Specification


Dimension

178W x 125D x 52.7H(mm)


CPU

Intel® Core™ i5-1335U Processor

Intel® 7, 10 cores, 2P+8E, 12 threads, up to 4.6 GHz


Chipset

SoC


Memory

2 x DDR4 SO-DIMM sockets, Max. Capacity 64 GB

Support Dual Channel DDR4 3200 MHz memory modules


Ethernet

2 x 2.5GbE LAN Ports (Intel® I226V)


Graphics Support

Integrated Graphics Processor - Intel® Iris® Xe Graphics :

2 x HDMI 2.0 ports, supporting a maximum resolution of 4096x2160 @60Hz

(2 independent display outputs)


Audio

Realtek® ALC269


Storage

1 x 2.5" HDD/SSD (SATA 6Gb/s)


Expansion-Slots

1 x 2280 M.2 M-Key (PCIe Gen 4x4, SATA 6Gb/s)

1 x 2230 M.2 E-Key

1 x Full-size Mini PCIe with SIM slot


Front I/O

2 x RJ45 LAN Ports

4 x USB 3.2 Gen 2x1

2 x HDMI

1 x Power button with LED

1 x HDD LED

1 x COM Port (RS-232/422/485 & RI/5V/12V)

1 x External Antenna Hole (Optional)


Rear l/O

2 x USB 2.0

2 x COM Ports (RS-232/422/485)

1 x GPIO (8 bits)

1 x Headphone Jack

1 x Screw Type DC Jack


Side I/O

2 x External Antenna Holes (Optional)


TPM

Onboard TPM 2.0 security chip

INFINEON SLB9672VU2.0


Power

+9V~36VDC (Adapter 19.5V/135W)


Operation Temperature

Operating temperature: 0°C to 50°C

Operating humidity: 0-90% (non-condensing)

Non-operating temperature: -40°C to 85°C

Non-operating humidity: 0%-95% (non-condensing)

Use wide temperature range memory and storage


Vibration During Operation

Operation: IEC 60068-2-64, 5 Grms, random, 5 ~ 500 Hz, 1 hr / Per Axis, With SSD/M.2 2280

Non-operation: IEC 60068-2-6, 2 G, Sine, 10 ~ 500 Hz, 1 Oct/min, 1 hr / Per Axis


Shock During Operation

Operation: IEC 60068-2-27, 50 G, half sine, 11 ms duration, With SSD


Packing Content

Carton size: 505 x 333 x 231 (mm)

Packing Capacity: 5pcs

Single Box size: 313 x 191 x 95 (mm)

Single Box weight: Approx. 3kg

Including:

Screw I Head for 2.5" HDD M3x8L x 4 (P/N: 25KSG-130081-K1R)

Thermal Pad for Memory x 1 (P/N: 25ST3-200086-T5R)

SATA Cable x 1 (P/N: 25CRI-070000-S9R)

Power Cord : Optional (by region)

PSU ADP 19.5V 135W 100-240VAC x 1 (P/N: 25EP4-201352-C1S)


Mounting

Wall mount P/N: 25HB2-CGAA20-CHR x 1 (Optional)

VESA 75/100 P/N: 25HB1-TPL021-S8R x 1 + 25KSD-000002-C0R x 1 (Screw) (Optional)
