[GIGAIPC] 산업용 임베디드 PC QBiX Pro Series (3.5" Embedded Systems) QBiX-Pro-APLC4200H-B2

(주)엠이티 M.E.T Co.,Ltd 2024. 11. 4. 13:30

[GIGAIPC] 산업용 임베디드 PC QBiX Pro Series (3.5" Embedded Systems) QBiX-Pro-APLC4200H-B2

Key Features

Industrial system with Intel® Pentium® N4200 Processor/ 1 x GPIO (8 bits)



• System Size : 178W x 125D x 52.7H(mm)

• Intel® Pentium® N4200 Processor

• Dual Channel DDR3L, 2 x SO-DIMMs

• HDMI, D-sub for Dual display

• 2 x GbE LAN Ports

Specification


Dimension

178W x 125D x 52.7H(mm)


CPU

Intel® Pentium® N4200 Processor

14nm, 4 cores, 4 threads, up to 2.5 GHz

TDP 6W


Chipset

SoC


Memory

2 x DDR3L SO-DIMM sockets, Max. Capacity 8 GB

Support Dual channel DDR3L 1866 MHz memory modules


Ethernet

2 x GbE LAN Ports (Realtek® RTL8111H)


Graphics Support

Integrated Graphics Processor - Intel® HD Graphics 505:

1 x HDMI 1.4 port, supporting a maximum resolution of 3840x2160 @30Hz

1 x VGA port, supporting a maximum resolution of 1920x1080 @60Hz (with compatible displays)

(2 independent display outputs)


Audio

Realtek® ALC897


Storage

1 x 2.5" HDD/SSD (SATA 6Gb/s)


Expansion-Slots

1 x 2242 M.2 M-Key (SATA 6Gb/s)

1 x Full-size Mini PCIe with SIM slot (PCIe x1 + USB2.0) -- support 3G/4G module

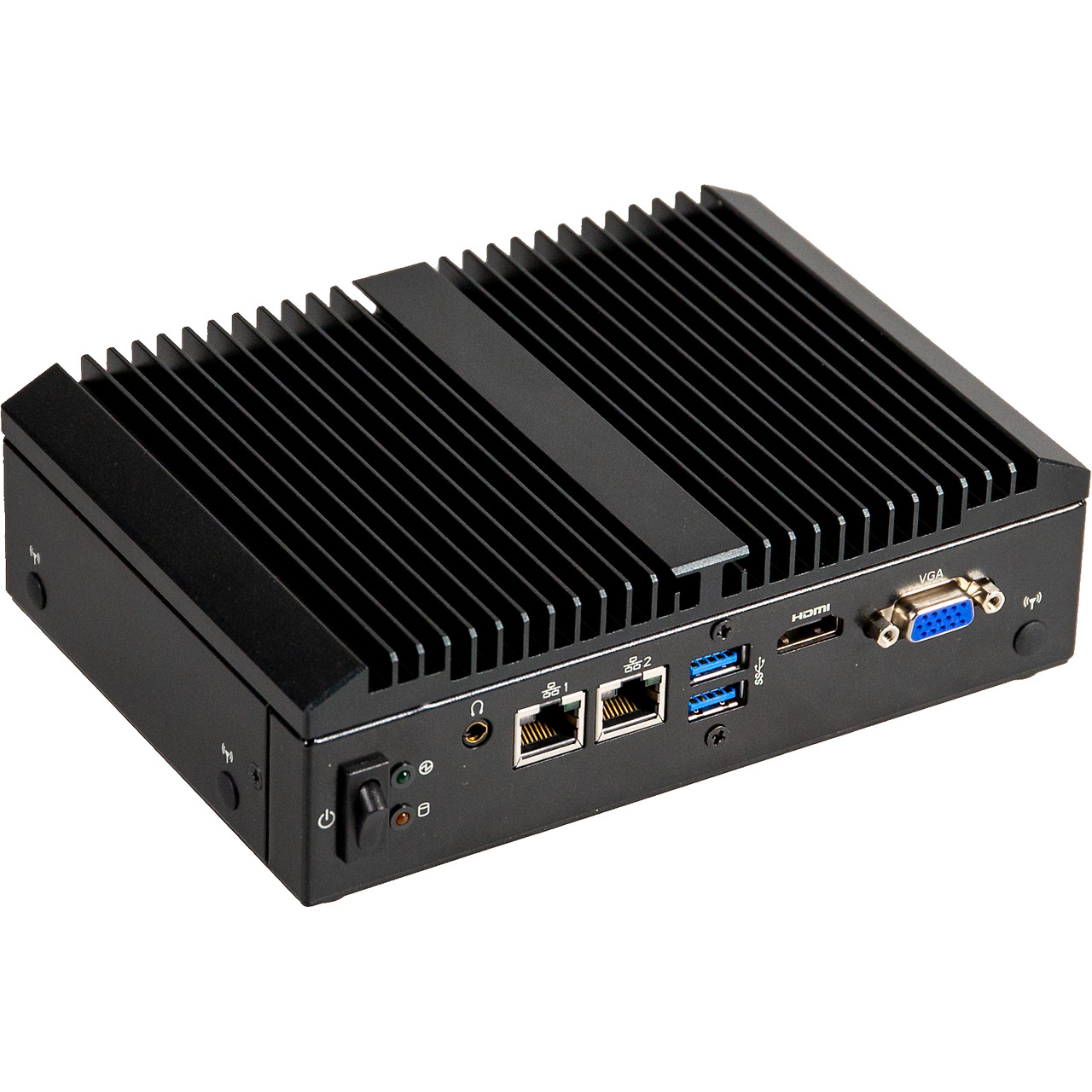

Front I/O

2 x RJ45 LAN Ports

2 x USB 3.2 Gen 1

1 x HDMI

1 x VGA

1 x Power switch

1 x Power & HDD LED

1 x Headphone jack

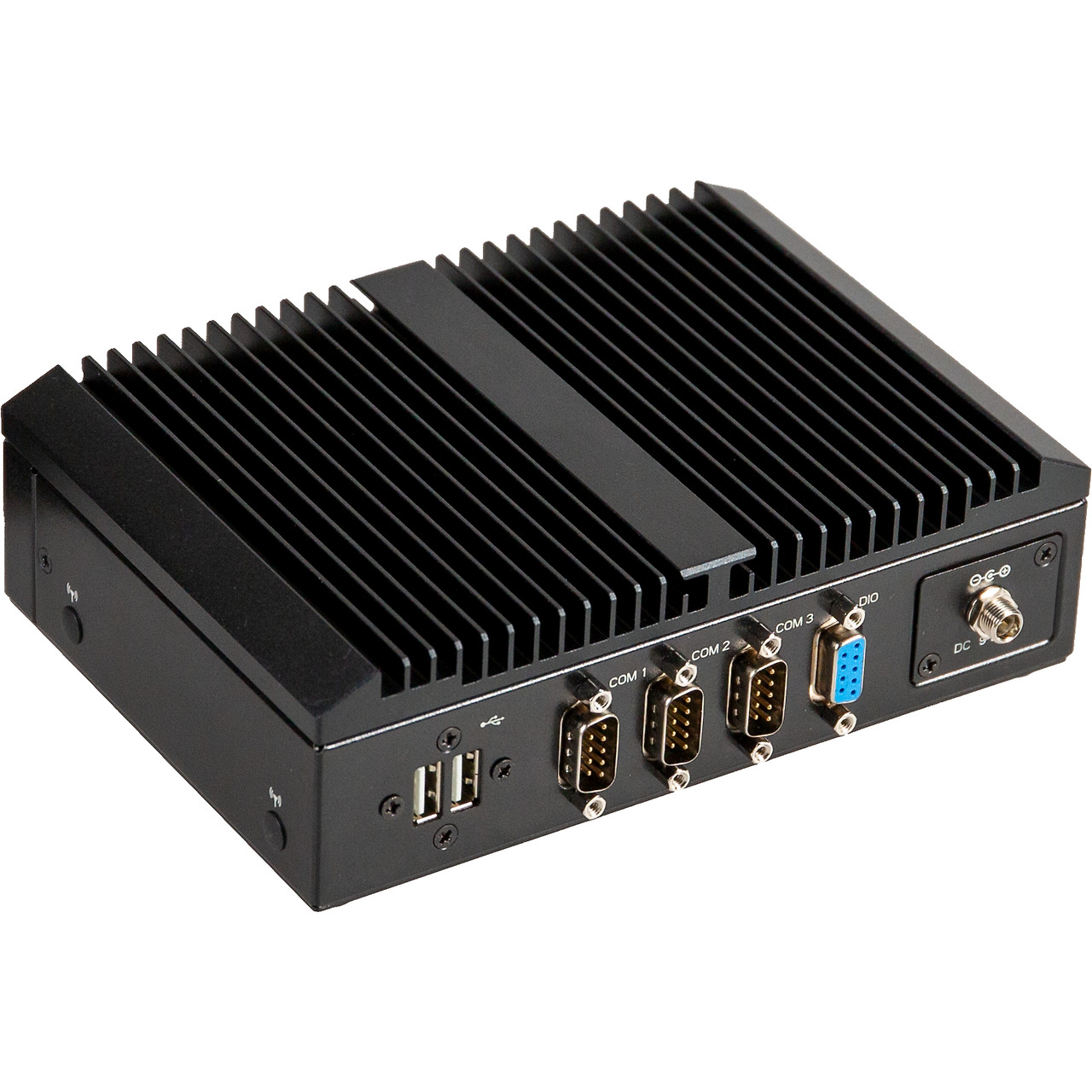

Rear l/O

2 x USB 2.0

1 x COM Port (RS-232/422/485 & RI/5V/12V)

2 x COM Ports (RS-232)

1 x GPIO (8 bits)

1 x Screw Type DC Jack


Side I/O

2 x External Antenna Holes (Optional)


Power

+9V~36VDC (Adapter 19V/65W)


Operation Temperature

Operating temperature: 0°C to 50°C

Operating humidity: 0-90% (non-condensing)

Non-operating temperature: -20°C to 70°C

Non-operating humidity: 0%-95% (non-condensing)

Use wide temperature range memory and storage


Vibration During Operation

Operation: IEC 60068-2-64, 5 Grms, random, 5 ~ 500 Hz, 1 hr / Per Axis, With SSD/M.2 2242

Non-operation: IEC 60068-2-6, 2 G, Sine, 10 ~ 500 Hz, 1 Oct/min, 1 hr / Per Axis


Shock During Operation

Operation: IEC 60068-2-27, 50 G, half sine, 11 ms duration, With SSD


Packing Content

Carton size: 505 x 333 x 231 (mm)

Packing Capacity: 5pcs

Single Box size: 313 x 191 x 95 (mm)

Single Box weight: Approx. 1.5kg

Including:

Screw I Head For 2.5" HDD M3x8L x 4 (P/N: 25KSG-130081-K1R)

SATA Cable x 1 (P/N: 25CF4-170020-S9R)

Power Cord : Optional (by region)

PSU ADP 19V 65W 100-240VAC x 1 (P/N: 25EP1-100651-A3S)
