[GIGAIPC] 산업용 임베디드 PC QBiX Lite Series (Digital Signage Players) QBiX-Lite-TGLA1135G7-A1
Key Features
Industrial system with Intel® Core™ i5-1135G7 Processor/ Fan Design/ Dual Channel DDR4 up to 64GB/ 2 x HDMI/ 2 x DP
• System Size: 234W x 155D x 30H (mm)
• Intel® Core™ i5-1135G7 Processor
• Dual Channel DDR4, 2 x SO-DIMMs
• 2 x HDMI
• 2 x Display Ports
• 2 x GbE LAN Ports
• 2 x USB Type-C Ports
Specification
Dimension
234W x 155D x 30H (mm)
CPU
Intel® Core™ i5-1135G7 Processor
10nm SuperFin, 4 cores, 8 threads, up to 4.2 GHz
Chipset
SoC
Memory
2 x DDR4 SO-DIMM sockets, Max. Capacity 64 GB
Support Dual channel DDR4 3200 MHz memory modules
Ethernet
2 x GbE LAN Ports (Intel® I219V and Intel® I211AT)
Graphics Support
Integrated Graphics Processor - Intel® Iris® Xᵉ Graphics:
2 x HDMI 2.0 ports, supporting a maximum resolution of 4096x2160 @60Hz
2 x DP 1.4 ports, supporting a maximum resolution of 7680x4320 @30Hz
1 x DP 1.4 through USB type C (8k), supporting a maximum resolution of 7680x4320 @30Hz
(4 independent display outputs)
Audio
Realtek® Audio Codec
Storage
1 x 2.5" HDD/SSD (SATA 6Gb/s)
Expansion-Slots
1 x 2280 M.2 M-Key (PCIe x2, SATA 6Gb/s)
1 x 2230 M.2 E-Key
1 x 3052 M.2 B-Key with SIM slot (Support 5G)

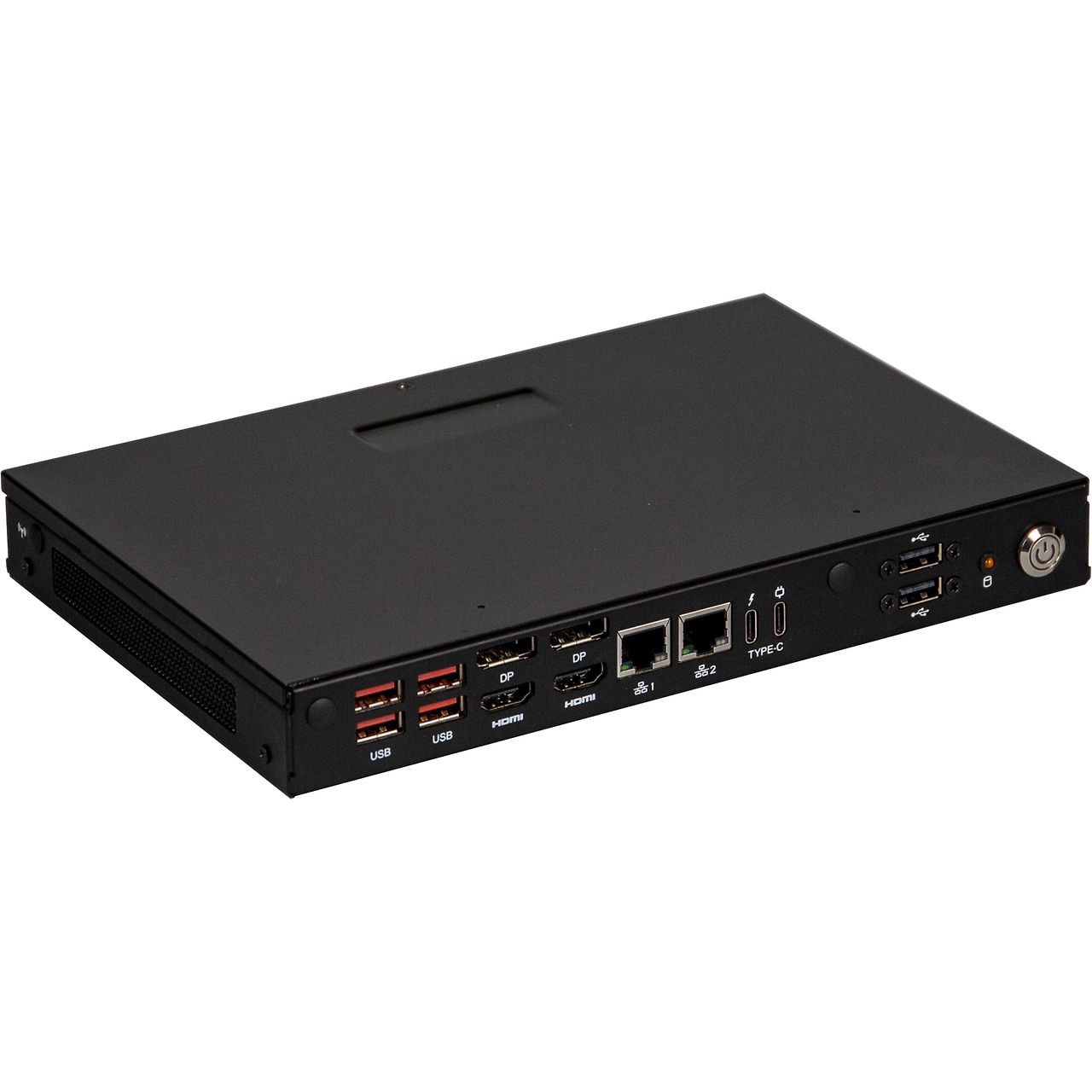

Front I/O
1 x USB type C (USB 3.2 Gen 2x1, DP Alt Mode & PD Out -30W)(-100W requests to use 250W adapter)
1 x USB type C (USB 3.2 Gen 2x1, PD input-100W)
4 x USB 3.2 Gen 2x1
2 x HDMI
2 x DP
2 x RJ45 LAN Ports
2 x USB 2.0
1 x HDD LED
1 x Power button with LED
2 x External Antenna Holes (Optional)

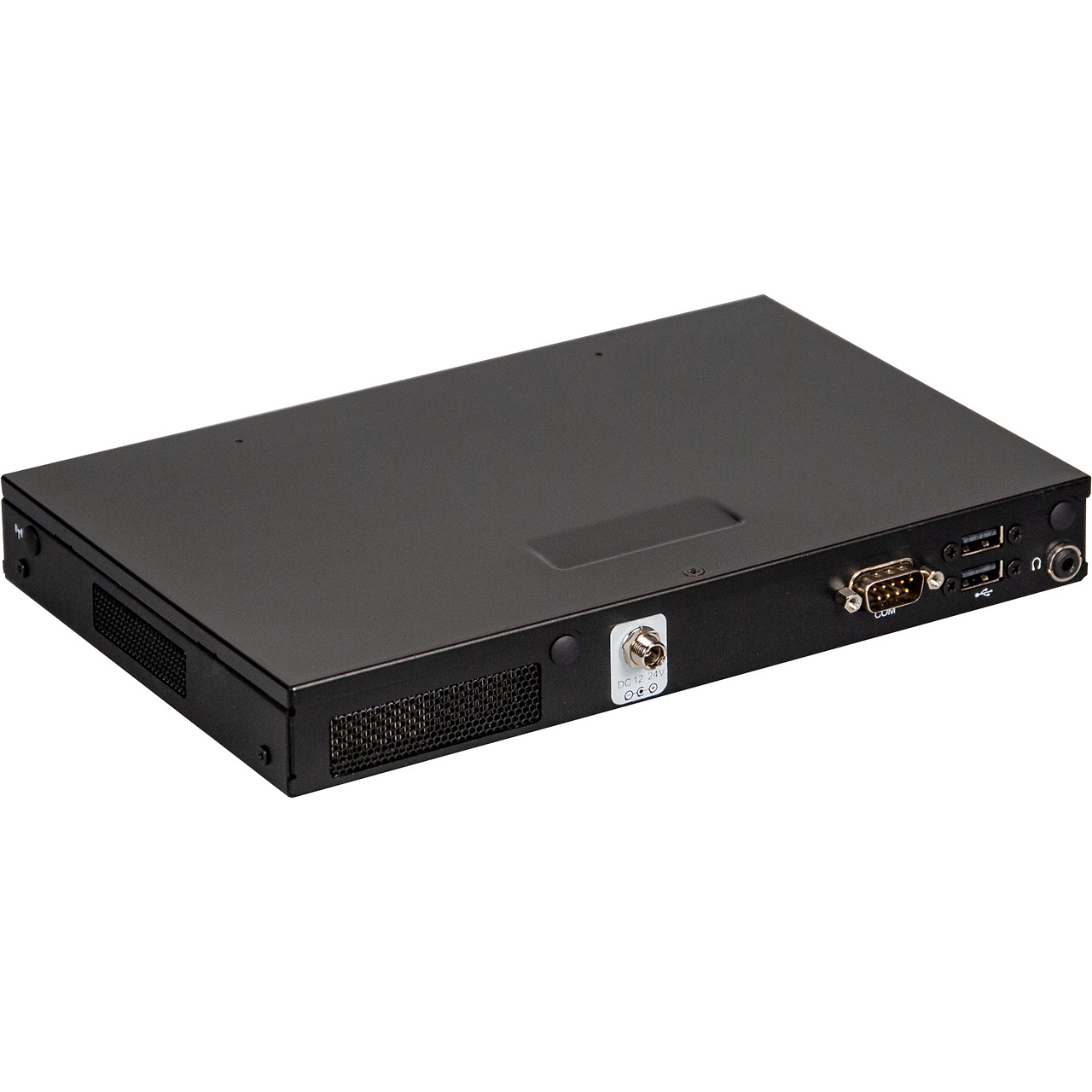

Rear l/O
1 x COM Port (RS-232)
2 x USB 2.0
1 x Headphone Jack
1 x Screw type DC Jack
2 x External Antenna Holes (Optional)
Side I/O
1 x External Antenna Hole (on each side)
Power
+12V~24VDC (Adapter 19.5V/135W)
Operation Temperature
Operating temperature: 0°C to 50°C
Operating humidity: 0-90% (non-condensing)
Non-operating temperature: -40°C to 85°C
Non-operating humidity: 0%-95% (non-condensing)
Use wide temperature range memory and storage
Vibration During Operation
Operation: IEC 60068-2-64, 1 Grms, random, 5 ~ 500 Hz, 1 hr / Per Axis, With SSD/M.2 2280
Non-operation: IEC 60068-2-6, 2 G, Sine, 10 ~ 500 Hz, 1 Oct/min, 1 hr / Per Axis
Shock During Operation
Operation: IEC 60068-2-27, 50 G, half sine, 11 ms duration, With SSD
Packing Content
Carton size: 481 x 300 x 375 (mm)
Packing Capacity: 5pcs
Single Box size: 336 x 279 x 90 (mm)
Single Box weight: Approx. 2.2kg
Including:
Bracket for Wall Mount x 2 : 25HB1-SD4000-R0R
Screws for Wall Mount x 4 : 25KS9-130600-S0R
PSU ADP 19.5V 135W 100-240VAC x 1 : 25EP4-201352-C1S
Power Cord : Optional (by region)
Thermal Pad for Memory x 1 : 25ST3-200086-T5R
SATA Cable x 1 : 25CRI-180002-S9R
Screws for 2.5" HDD x 8 : 25KS2-13004G-S0R
Mounting
Wall mount (Default)
VESA 75/100 (Optional)
