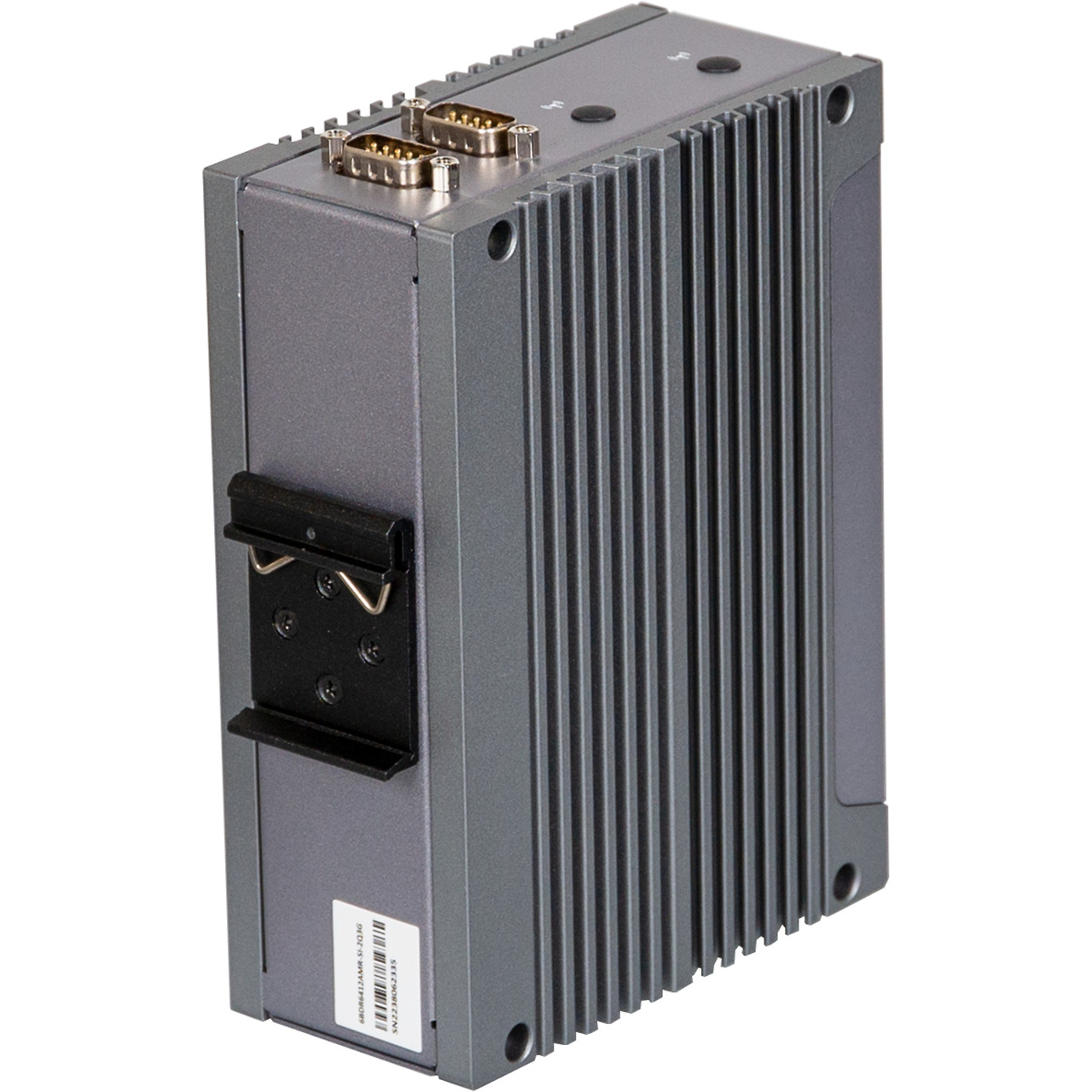

[GIGAIPC] 산업용 임베디드 PC QBiX DIN Rail Series (Din Rail Embedded Systems) QBiX-DR-EHLA6412H-A1
Key Features
DIN Rail industrial system with Intel® Celeron® J6412 Processor
•System Size : 160W x 118D x 62.6H (mm)
•Intel® Celeron® J6412 Processor
•Single Channel DDR4 3200 MHz
•4 x COM Ports (RS-232/422/485 & RI/5V/12V)
•1 x GPIO Port (8 Bits)
•2 x GbE LAN Ports
Specification
Dimension
160W x 118D x 62.6H (mm)
CPU
Intel® Celeron® J6412 Processor
10nm, 4 cores, 4 threads, up to 2.60 GHz
TDP 10W
Memory
1 x DDR4 SO-DIMM socket, Max. Capacity 32 GB
Support Single Channel DDR4 3200 MHz memory modules
Ethernet
2 x GbE LAN Ports (Intel® I210AT)
Graphics Support
Integrated Graphics Processor-
Intel® UHD Graphics for 10th Gen Intel® Processors:
1 x HDMI 2.0 port, supporting a maximum resolution of 4096x2160 @60Hz
1 x VGA port, supporting a maximum resolution of 1920x1200 @60Hz
(2 independent display outputs)
Audio
Realtek® Audio codec
Storage
1 x 2.5” HDD/SSD (SATA 6Gb/s)
Expansion-Slots
1 x 2280 M.2 M-Key (SATA 6Gb/s)
1 x 2230 M.2 E-Key
1 x 3052/3042 M.2 B key with SIM Slot –4G/5G Support
1 x Vertical USB 2.0
Front I/O
2 x RJ45 LAN Ports
2 x USB 3.2 Gen 1
2 x USB 2.0
1 x HDMI
1 x VGA
2 x COM Ports (RS-232/422/485 & RI/5V/12V)
1 x Power button with LED
1 x WiFi/HDD LED
1 x Remote control connector
1 x Headphone Jack
1 x External Antenna Hole (Optional)
Rear l/O
1 x Din Rail Mounting Support
Side I/O
1 x GPIO (8 bits)
1 x 3-pin Terminal Block
2 x COM Ports (RS-232/422/485 & RI/5V/12V)
2 x External Antenna Holes (Optional)
Power
+9V~36VDC (Full Range)
Operation Temperature
Operating temperature: 0°C to 50°C
Operating humidity: 0-90% (non-condensing)
Non-operating temperature: -40°C to 85°C
Non-operating humidity: 0%-95% (non-condensing)
Use wide temperature range memory and storage
Vibration During Operation
Operation: IEC 60068-2-64, 3 Grms, random, 5 ~ 500 Hz, 1 hr / Per Axis, With SSD/M.2 2280
Non-operation: IEC 60068-2-6, 2 G, Sine, 10 ~ 500 Hz, 1 Oct/min, 1 hr / Per Axis
Shock During Operation
Operation: IEC 60068-2-27, 50 G, half sine, 11 ms duration, With SSD
