DWIN 산업용 디스플레이 스크린 모듈 TFT LCD HMI UART

(주)엠이티 M.E.T Co.,Ltd 2022. 1. 13. 16:31



DWIN 산업용 디스플레이 스크린 모듈 TFT LCD HMI UART

2인치 2.4인치 2.8인치 3인치 3.5인치 4인치 4.1인치 4.3인치 5인치 5.6인치 7인치 8인치 8.8인치 9.7인치 10.1인치 10.4인치 11.6인치 12.1인치 15인치 15.6인치 18.5인치 21.5인치





[공급 가능 모델]

자세한 사항은 견적시에 안내드립니다.

아래 표 외 기타 시스템 스크린(HDMI 인터페이스, 안드로이드, 리눅스), 비디오 스크린, Wall Mounted 스크린 등 공급 가능합니다.



Size
Resolution
Model
LCD
Remark


2.0


320*240


DMG32240C020_03W


IPS


CTP&RTP, cost-effective.


2.4


320*240


DMG32240C024_03W


TN


CTP&RTP, cost-effective.




2.8




320*240


DMG32240F028_01W


TN


COF structure, RTP. Ultra-thin product.


DMG32240C028_03W


TN


COB structure, RTP&CTP. Easy to install.




3.0




640*360


DMG64360K030_01W


IPS


Medical-grade product, high reliability.


DMG64360T030_01W


IPS


Industrial-grade product with low-cost T5L0.










3.5


320*240


DMG32240C035_03W


IPS
RTP&CTP, its suitable for users with cost requirments.


480*320


DMG48320C035_03W


IPS


RTP&CTP, high cost-effective .


480*320


DMG48320F035_01W


IPS
COF structure, WTC=Black WTCZ01=White WTCZ02=Integrated black


640*480


DMG64480T035_01W


IPS


Industrial-grade application, with RTC, using low-cost T5L0.


800*480


DMG80480T035_01W


IPS

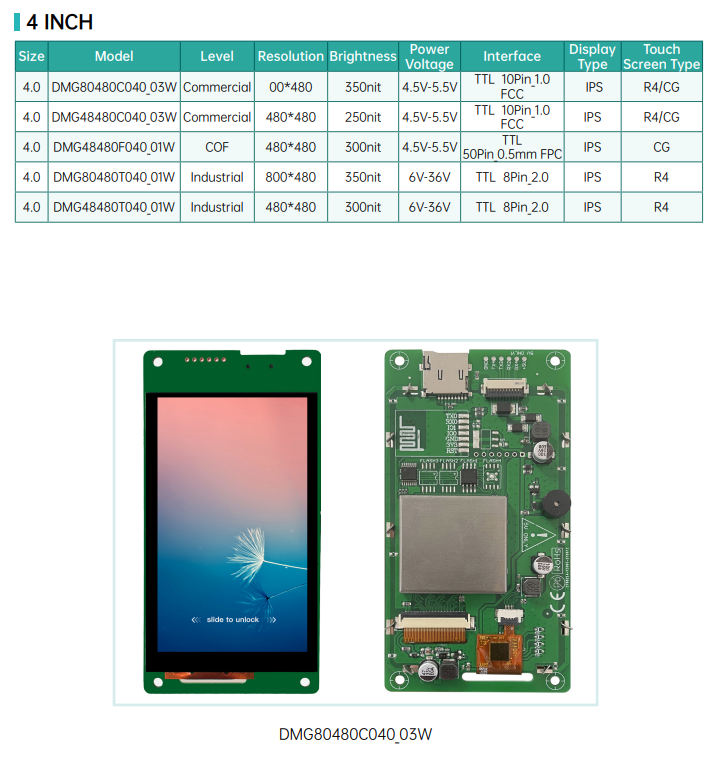

4.0






480*480


DMG48480C040_03W


IPS


RTP&CTP, special structure screen.


DMG48480T040_01W


IPS
1:1 square screen, with RTC, using low-cost T5L0.


DMG48480F040_01W


IPS
COF structure, variety colors are available, uses 2.5D process.




800*480


DMG80480C040_03W


IPS
RTP&CTP, uses 2.5D process, reserved Wi-Fi interface.


DMG80480T040_01W


IPS
Industrial-grade product with conformal coating, RTC, cost-effective.




4.1




720*720


DMG72720C041_03W


IPS


Incell, ultra-thin product.


DMG72720T041_06W


IPS


Incell, embedded smart screen.

Size
Resolution
Model
LCD
Remark
























4.3








480*272
DMG48270C043_03W
TN
RTP&CTP, reserved Wi-Fi interface.
DMG48270C043_04W
TV-TN
T5L0 chip, cost-effective, 15W shell can be pre- installed.
DMG48270C043_05W
TN
T5L0+8MB Flash.
DMG48270F043_01W
TV-TN
RTP, COF structure, ultra-thin product.
DMG48270C043_15W
TN
With shell, waterproof and dustproof, IP65, buckle installation, reliable installation.












800*480
DMG80480C043_01W
IPS
RTP&CTP, cost-effective, horizontal structure.
DMG80480C043_02W
IPS
RTP&CTP, portrait structure.
DMG80480T043_01W
IPS
Industrial-grade product with conformal coating.
DMG80480T043_09W
IPS
UV protection, highlight.
DMG80480C043_06W
TN
COF structure, using 10Pin_1.0 cable.
DMG80480F043_01W
IPS
C O F , W T C = B l a c k W T C Z 0 1 = W h i t e WTCZ02=Integrated black
DMG80480T043_A5W
IPS
Integrated touch panel with shell.


















5.0








800*480
DMG80480C050_04W
IPS
T5L0, cost-effective.
DMG80480C050_03W
TN
RTP&CTP, cost-effective.
DMG80480C050_04W
IPS
T5L0, cost reduction solution, 15W shell can be pre-installed.
DMG80480T050_A5W
IPS
Integrated touch panel.




850*480
DMG85480F050_01W
IPS
COF structure, variety of colors are available, ultra-thin product.
DMG85480C050_03W
IPS
RTP&CTP, reserved Wi-Fi interface.




1280*720
DMG12720C050_03W
IPS
Incell, portrait structure, reserved Wi-Fi interface.
DMG12720T050_06W
IPS
Incell, horizontal structure.
1280*720
DMG12720T050_01W
IPS
Incell, T5L0, with conformal coating, reserved Wi-Fi and USB interface.

Size
Resolution
Model
LCD
Remark




5.6


640*480


DMG64480C056_03W


TN


RTP&CTP, cost-effective.


DMG64480T056_01W


TN
T5L1, COB stucture, reserved Wi-Fi and USB interface.






































7.0


























800*480


DMG80480Y070_01N


TV-TN


Cost-effective, using DWIN T5L chip.


DMG80480Y070_02N


TV-TN


Cost-effective, using DWIN T5L0 chip.


DMG80480F070_01W


TN


T5L0, COF structure, ultra-thin product.


DMG80480L070_01W


TN


RTP, T5L1, pre-installed TA mode, cost-effective.


DMG80480C070_04W


TN
T5L0, cost-effective, 15W shell can be pre- installed.


DMG80480C070_03W


TN


T5L1, RTP&CTP, cost-effective.


DMG80480C070_15W


TN


T5L0, RTP, cost-effective RTP, 16MB Flash.


DMG80480T070_15W


TN
Industrial-grade integrated RTP, built-in speaker.


DMG80480T070_A5W


TN


Integrated five-wire RTP, buckle installation.


DMG80480T070_05W


TN
Industrial-grade product with conformal coating, RTC.


DMG80480T070_09W


TN


UV protection, highlight.








1024*600


DMG10600C070_03W


IPS


Cost-effective with Wi-Fi module.


DMG10600T070_A5W


IPS


Integrated CTP, built-in speaker


DMG10600T070_01W


IPS


T5L2, industrial-grade with conformal coating.


DMG10600T070_09W


IPS


T5L2 , UV protection, highlight.


1280*800


DMG12800T070_01W


IPS


T5L2, industrial-grade with RTC.

Size
Resolution
Model
LCD
Remark




















8.0












800*600
DMG80600Y080_01NR
TV-TN
T5L1, TA instruction system only.
DMG80600Y080_02NR
TV-TN
T5L0, cost-effective, TA instruction system only.
DMG80600L080_01W
TN
T5L1, RTP, cost-effective.
DMG80600C080_03W
TN
RTP&CTP, cost-effective.
DMG80600T080_02W
TN
T5L1, industrial-grade with conformal coating.
DMG80600T080_09W
TN
UV protection, highlight.




1024*768
DMG10768C080_03W
IPS
RTP&CTP, cost-effective.
DMG10768T080_01W
IPS
Industrial-grade with conformal coating, with RTC.




1280*800
DMG12800T080_01W
IPS
T5L2, high resolution industrial-grade product, with RTC.
DMG12800C080_03W
IPS
T5L2, cost-effective, with onboard speakers, with RTC.




8.8




1920*480
DMG19480C088_03W
IPS
RTP&CTP, long strip screen, generally used in smart home.
DMG19480T088_01W
IPS
T5L2, industrial-grade, long strip screen, with speakers, with RTC.




9.7




1024*768
DMG10768C097_03W
TN
RTP&CTP, reserved Wi-Fi interface.
DMG10768T097_01W
TN
T5L2, industrial-grade with conformal coating and RTC.














10.1










1024*600
DMG10600Y101_01N
TV-TN
T5L2, cost-effective.
DMG10600C101_03W
IPS
RTP&CTP, used for indoor equipment.
DMG10600C101_15W
TN
T5L2, integrated RTP wth RTC, with shell.
DMG10600T101_01W
IPS
T5L2, industrial-grade with conformal coating and RTC.
DMG10600T101_09W
IPS
UV protection, high brightness with RTC.




1280*800
DMG12800L101_01W
IPS
RTP&CTP, cost-effective, with RTC and shell.
DMG12800T101_01W
IPS
T5L2, RTP&CTP, industrial-grade with conformal coating.

Size
Resolution
Model
LCD
Remark










10.4




800*600
DMG80600C104_03W
TN
RTP&CTP, Commercial-grade with Wi-Fi interface and conformal coating.
DMG80600T104_01W
TN
T5L1, industrial-grade with conformal coating, with RTC.






1024*768
DMG10768T104_01W
IPS
T5L2, industrial-grade with conformal coating, 16MBFlash.
DMG10768C104_03W
IPS
RTP&CTP, with onboard speaker, Wi-Fi 10
module, offline voice module.
DMG10768T104_09W
IPS
UV protection, high brightness, with RTC.




11.6




1920*1080
DMG19108C116_02W
IPS
CTP, high resolution with video play function, running DGUS system, with RTC.
DMG19108C116_03W
IPS
AIOT LCM, HD short video playback function, TA instruction.

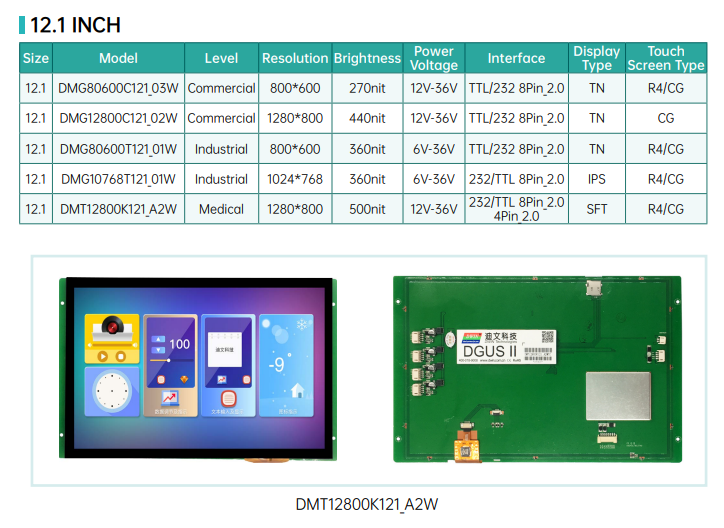

12.1






800*600
DMG80600Y121_01N
TV-TN
T5L1, cost-effective
DMG80600C121_03W
TN
RTP&CTP, music play, Wi-Fi interface reserved.
DMG80600T121_01W
TN
T5L1, industrial-grade product, with RTC.
1024*768
DMG10768T121_01W
IPS
RTP&CTP, industrial-grade with conformal coating and RTC.
1280*800
DMG12800C121_02W
TN
CTP, Wi-Fi interface reserved.






15.0






1024*768
DMG10768Y150_01N
TV-TN
Cost-effective.
DMG10768C150_03W
TN
RTP, cost-effecitve, Wi-Fi interface reserved.
DMG10768T150_01W
IPS
RTP&CTP, industrial-grade with conformal coating and RTC.






15.6
1364*768
DMG13768C156_03W
TN
CTP, Commercial-grade, high resolution.




1920*1080
DMG19108C156_03W
IPS
RTP&CTP, AIOT LCM, HD short video play function, TA instruction.
DMG19108C156_02W
IPS
CTP, high resolution with video play function, running DGUS system.
18.5
1364*768
DMG13768C185_03W
TN
CTP, Ultra HD, with speakers.




21.5




1920*1080
DMG19108C215_02W
IPS
CTP, high resolution with video play function, running DGUS system.
DMG19108C215_03W
IPS
RTP&CTP, AIOT LCM, HD short video play function, TA instruction.

Size
Resolution
Model
LCD
Remark




















8.0












800*600
DMG80600Y080_01NR
TV-TN
T5L1, TA instruction system only.
DMG80600Y080_02NR
TV-TN
T5L0, cost-effective, TA instruction system only.
DMG80600L080_01W
TN
T5L1, RTP, cost-effective.
DMG80600C080_03W
TN
RTP&CTP, cost-effective.
DMG80600T080_02W
TN
T5L1, industrial-grade with conformal coating.
DMG80600T080_09W
TN
UV protection, highlight.




1024*768
DMG10768C080_03W
IPS
RTP&CTP, cost-effective.
DMG10768T080_01W
IPS
Industrial-grade with conformal coating, with RTC.




1280*800
DMG12800T080_01W
IPS
T5L2, high resolution industrial-grade product, with RTC.
DMG12800C080_03W
IPS
T5L2, cost-effective, with onboard speakers, with RTC.




8.8




1920*480
DMG19480C088_03W
IPS
RTP&CTP, long strip screen, generally used in smart home.
DMG19480T088_01W
IPS
T5L2, industrial-grade, long strip screen, with speakers, with RTC.




9.7




1024*768
DMG10768C097_03W
TN
RTP&CTP, reserved Wi-Fi interface.
DMG10768T097_01W
TN
T5L2, industrial-grade with conformal coating and RTC.














10.1










1024*600
DMG10600Y101_01N
TV-TN
T5L2, cost-effective.
DMG10600C101_03W
IPS
RTP&CTP, used for indoor equipment.
DMG10600C101_15W
TN
T5L2, integrated RTP wth RTC, with shell.
DMG10600T101_01W
IPS
T5L2, industrial-grade with conformal coating and RTC.
DMG10600T101_09W
IPS
UV protection, high brightness with RTC.




1280*800
DMG12800L101_01W
IPS
RTP&CTP, cost-effective, with RTC and shell.
DMG12800T101_01W
IPS
T5L2, RTP&CTP, industrial-grade with conformal coating.

Size
Resolution
Model
LCD
Remark










10.4




800*600
DMG80600C104_03W
TN
RTP&CTP, Commercial-grade with Wi-Fi interface and conformal coating.
DMG80600T104_01W
TN
T5L1, industrial-grade with conformal coating, with RTC.






1024*768
DMG10768T104_01W
IPS
T5L2, industrial-grade with conformal coating, 16MBFlash.
DMG10768C104_03W
IPS
RTP&CTP, with onboard speaker, Wi-Fi 10
module, offline voice module.
DMG10768T104_09W
IPS
UV protection, high brightness, with RTC.




11.6




1920*1080
DMG19108C116_02W
IPS
CTP, high resolution with video play function, running DGUS system, with RTC.
DMG19108C116_03W
IPS
AIOT LCM, HD short video playback function, TA instruction.










12.1






800*600
DMG80600Y121_01N
TV-TN
T5L1, cost-effective
DMG80600C121_03W
TN
RTP&CTP, music play, Wi-Fi interface reserved.
DMG80600T121_01W
TN
T5L1, industrial-grade product, with RTC.
1024*768
DMG10768T121_01W
IPS
RTP&CTP, industrial-grade with conformal coating and RTC.
1280*800
DMG12800C121_02W
TN
CTP, Wi-Fi interface reserved.






15.0






1024*768
DMG10768Y150_01N
TV-TN
Cost-effective.
DMG10768C150_03W
TN
RTP, cost-effecitve, Wi-Fi interface reserved.
DMG10768T150_01W
IPS
RTP&CTP, industrial-grade with conformal coating and RTC.






15.6
1364*768
DMG13768C156_03W
TN
CTP, Commercial-grade, high resolution.




1920*1080
DMG19108C156_03W
IPS
RTP&CTP, AIOT LCM, HD short video play function, TA instruction.
DMG19108C156_02W
IPS
CTP, high resolution with video play function, running DGUS system.
18.5
1364*768
DMG13768C185_03W
TN
CTP, Ultra HD, with speakers.




21.5




1920*1080
DMG19108C215_02W
IPS
CTP, high resolution with video play function, running DGUS system.
DMG19108C215_03W
IPS
RTP&CTP, AIOT LCM, HD short video play function, TA instruction.





사업자 정보 표시
주식회사 엠이티 | 김영삼 | 대전광역시 유성구 테크노11로 46 | 사업자 등록번호 : 314-86-33419 | TEL : 042-934-8257 | 통신판매신고번호 : 제 2014-대전유성-0334호 | 사이버몰의 이용약관 바로가기
