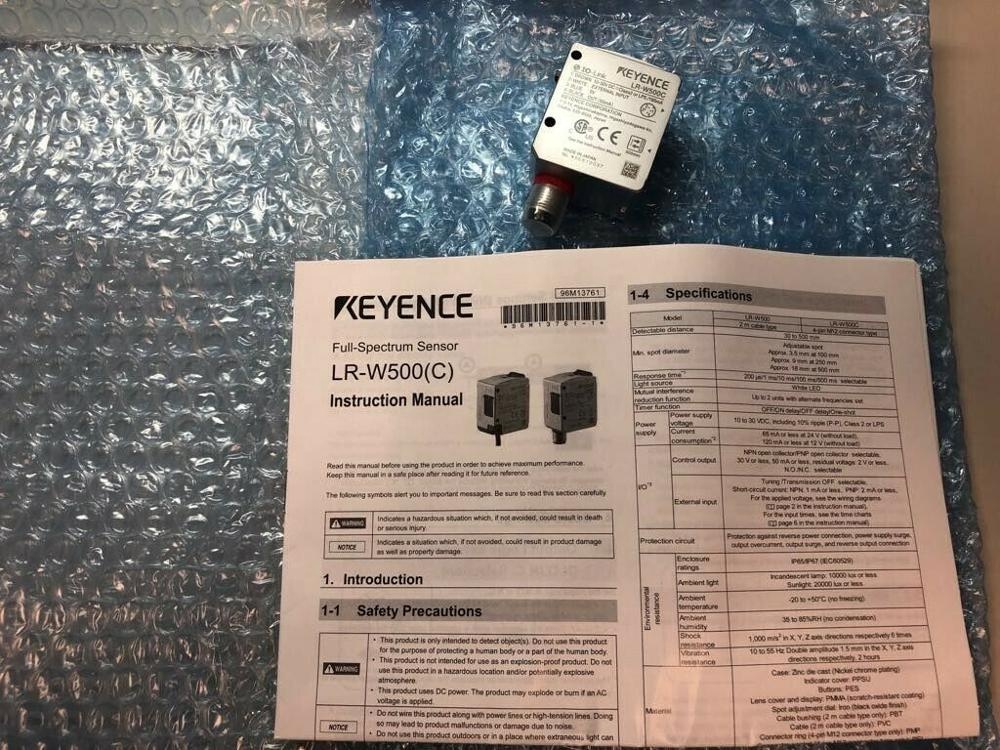

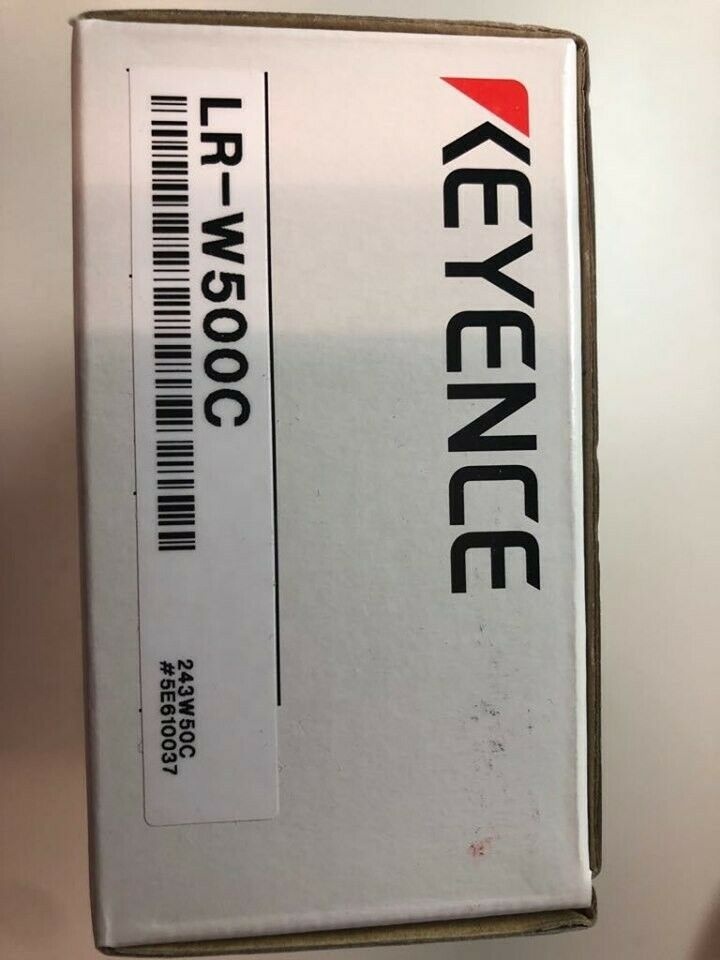

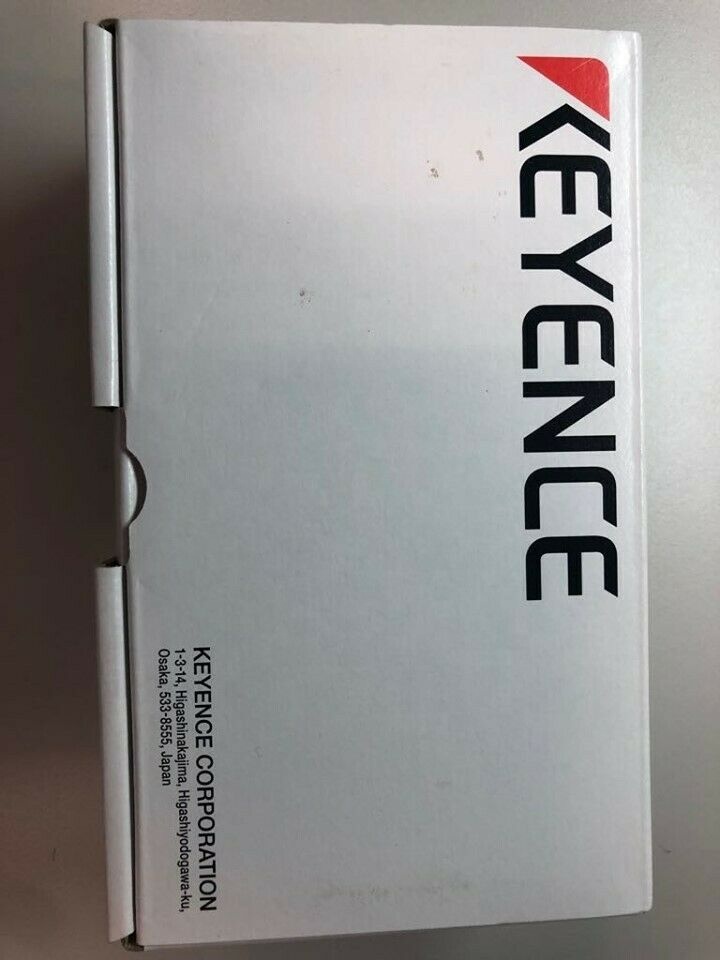

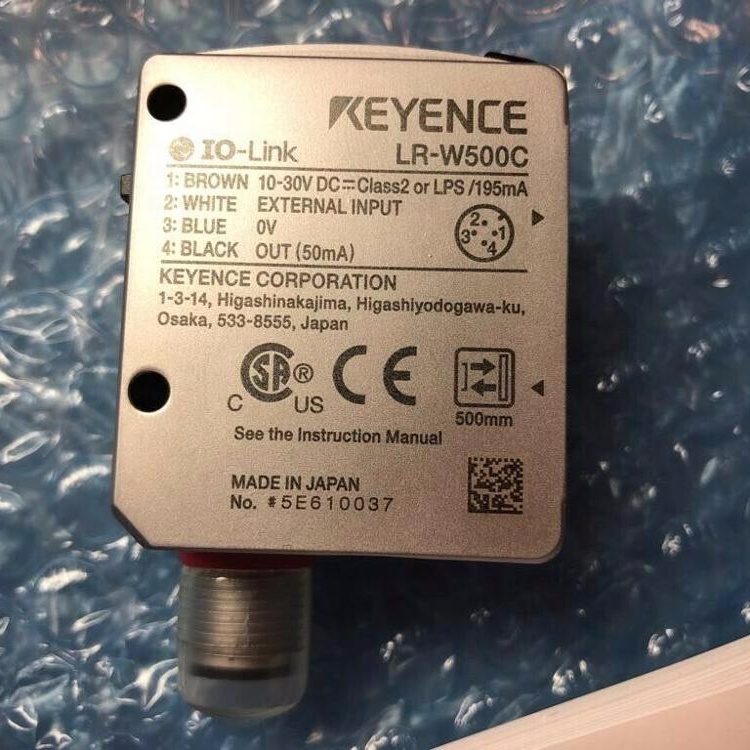

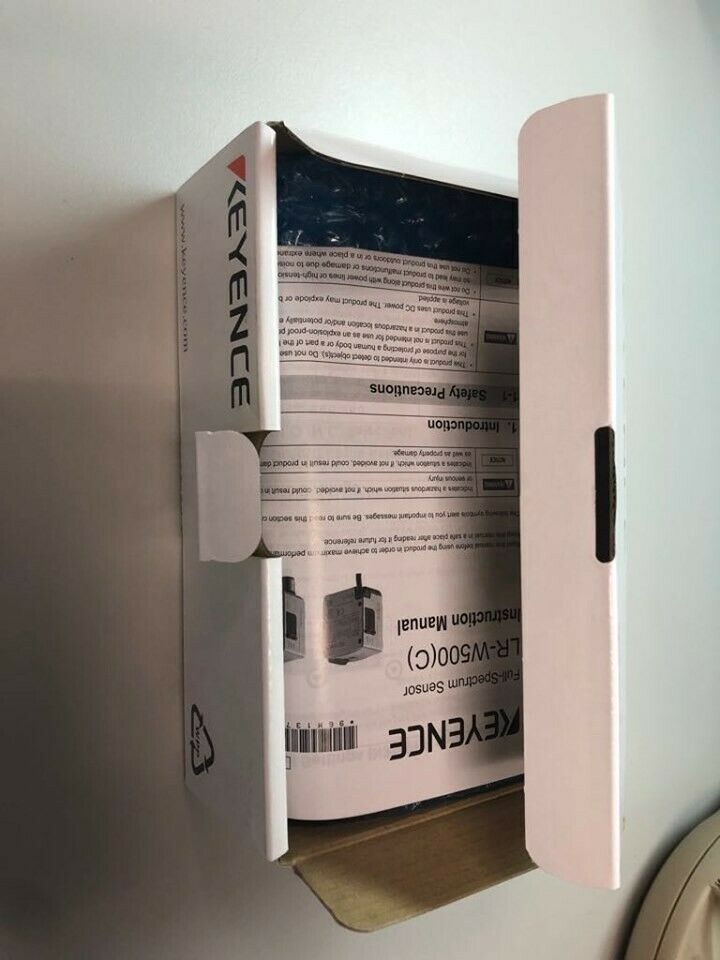

KEYENCE Full Spectrum Color Sensor LR-W500C , M12 connector type in LR-W series by KEYENCE America 키옌스 풀 스펙트럼 컬러 센서 신품 수입
Model
|
LR-W500C
|
|||
Type
|
M12 connector 4-pin type
|
|||
Detecting distance
|
30 to 500 mm
|
|||
Min. spot diameter
|
Adjustable spot
Approx. ø3.5 mm at 100 mm
Approx. ø9 mm at 250 mm
Approx. ø18 mm at 500 mm
|
|||
Response time
|
200 µs/1 ms/10 ms/100 ms/500 ms selectable *1
|
|||
Light source
|
White LED
|
|||
Mutual interference reduction function
|
Up to 2 units when alternate frequencies set
|
|||
Timer
|
OFF/ON delay/OFF delay/One-shot
|
|||
Power supply
|
Power voltage
|
10 to 30 VDC, including 10% ripple (P-P), Class 2 or LPS
|
||
Current consumption
|
65 mA or less (without load) at 24 VDC;
120 mA or less (without load) at 12 VDC *2
|
|||
I/O
|
Control output
|
NPN open collector/PNP open collector selectable
30 VDC or less, 50 mA or less, remaining voltage: 2 V or less
N.O./N.C. selectable
*3
|
||
External input
|
Tuning /Transmission OFF selectable
Short circuit current: 1 mA or less for NPN/2 mA or less for PNP
For the applied voltage, see the wiring diagrams in the instruction manual.
For the input times, see the time charts in the instruction manual.
*3
|
|||
Protection circuit
|
Protection against reverse power connection, power supply surge, output overcurrent, output surge, and reverse output connection
|
|||
Environmental resistance
|
Enclosure rating
|
IP65/IP67 (IEC60529)
|
||
Ambient light
|
Incandescent lamp: 10,000 lux or less, Sunlight: 20,000 lux or less
|
|||
Ambient temperature
|
-20 to +50 °C (No freezing)
|
|||
Relative humidity
|
35 to 85 % RH (No condensation)
|
|||
Vibration resistance
|
10 to 55 Hz, Double amplitude 1.5 mm, 2 hours in each of the X, Y, and Z directions
|
|||
Shock resistance
|
1,000 m/s2, 6 times in each of the X, Y, and Z directions
|
|||
Material
|
Case: Zinc die cast (Nickel chrome plating),
Indicator cover: PPSU, Buttons: PES
Lens cover and display: PMMA (scratch-resistant coating),
Spot adjustment dial: Iron (triiron tetraoxide coated)
Connector ring: PMP, Connector socket: PEI
|
|||
Weight
|
Approx. 110 g
|
|||
*1 When alternate frequencies are set, the response time increases by approximately 20%.
*2 195 mA or less (at 10 V, with load)
*3 IO-Link: Specification v.1.1/COM2 (38.4 kbps) is supported. The setup file can be downloaded from KEYENCE website (http://www.keyence.com).
If you are using the product in an environment in which you cannot download files over the Internet, contact your nearest KEYENCE office.
|
