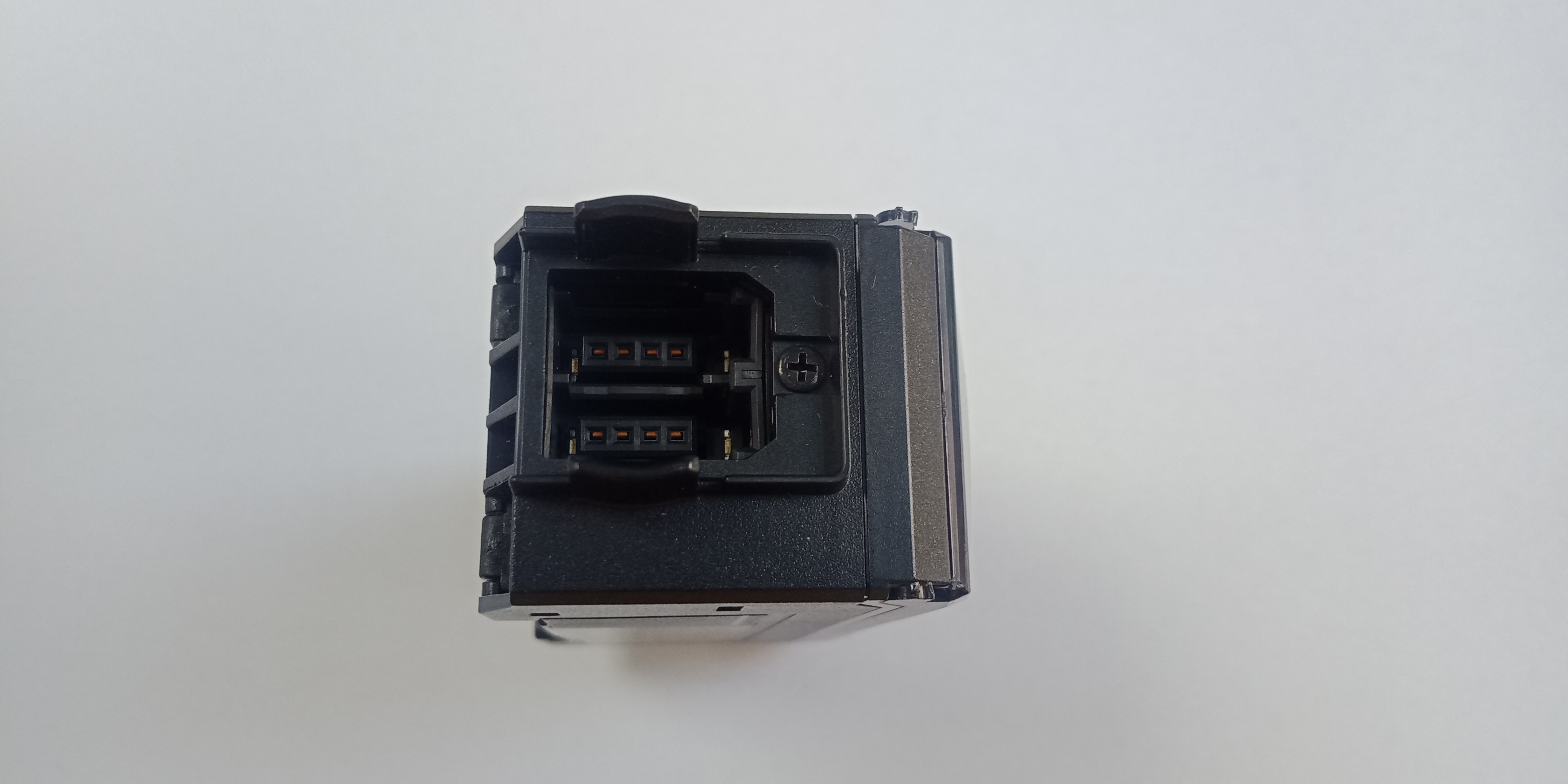

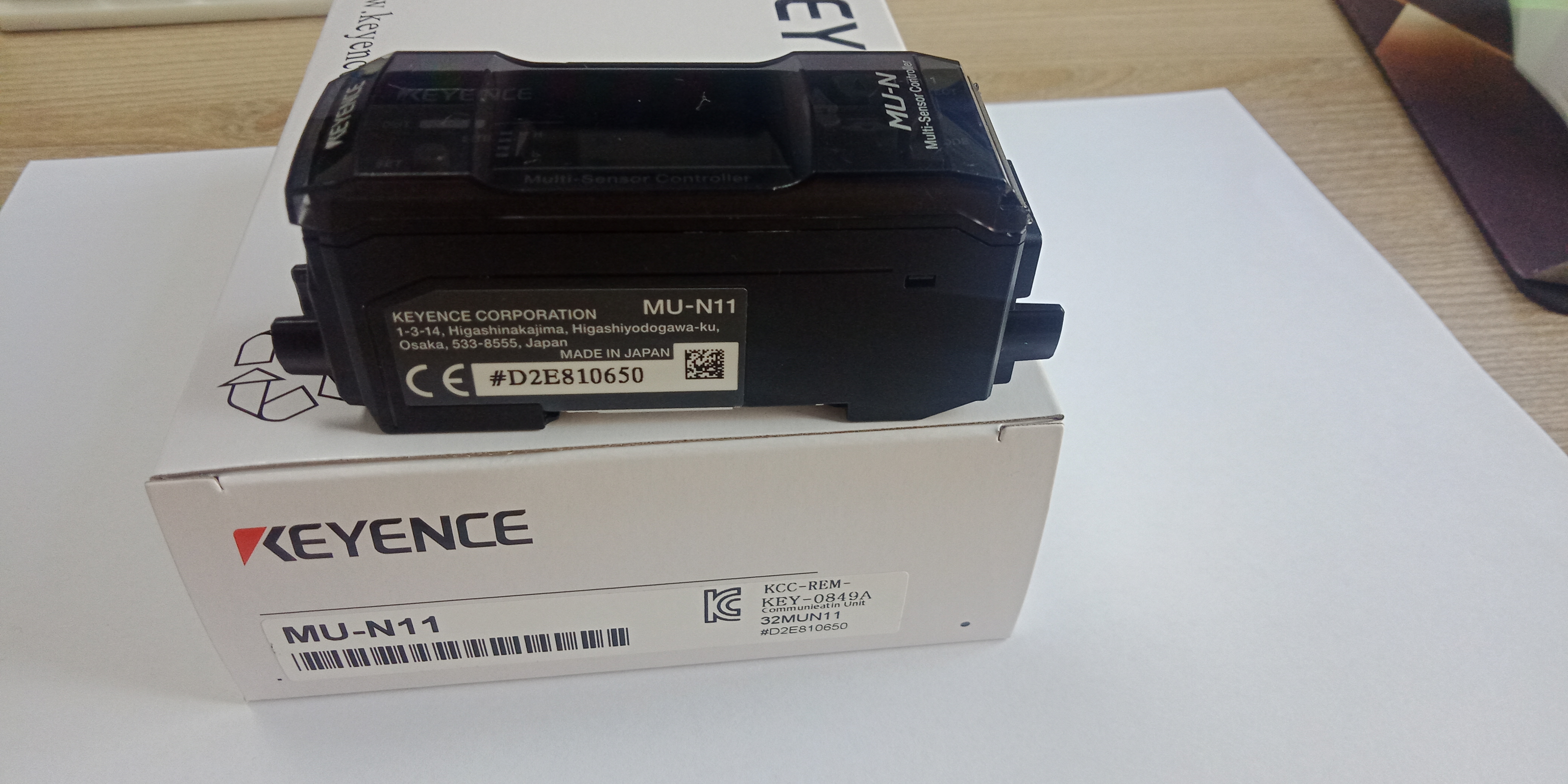

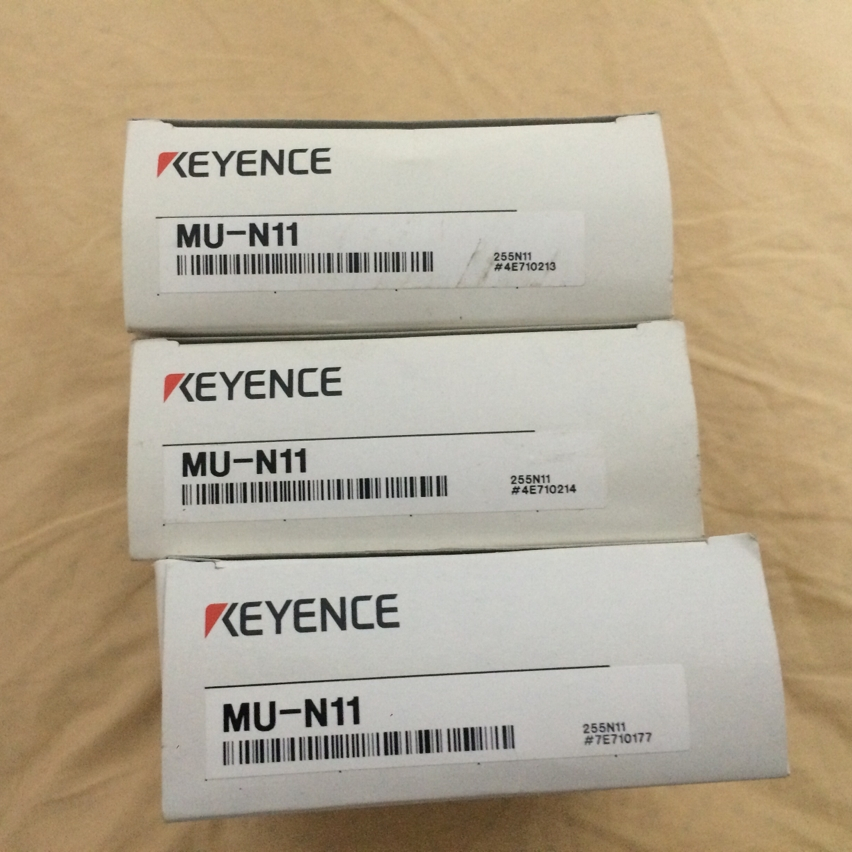

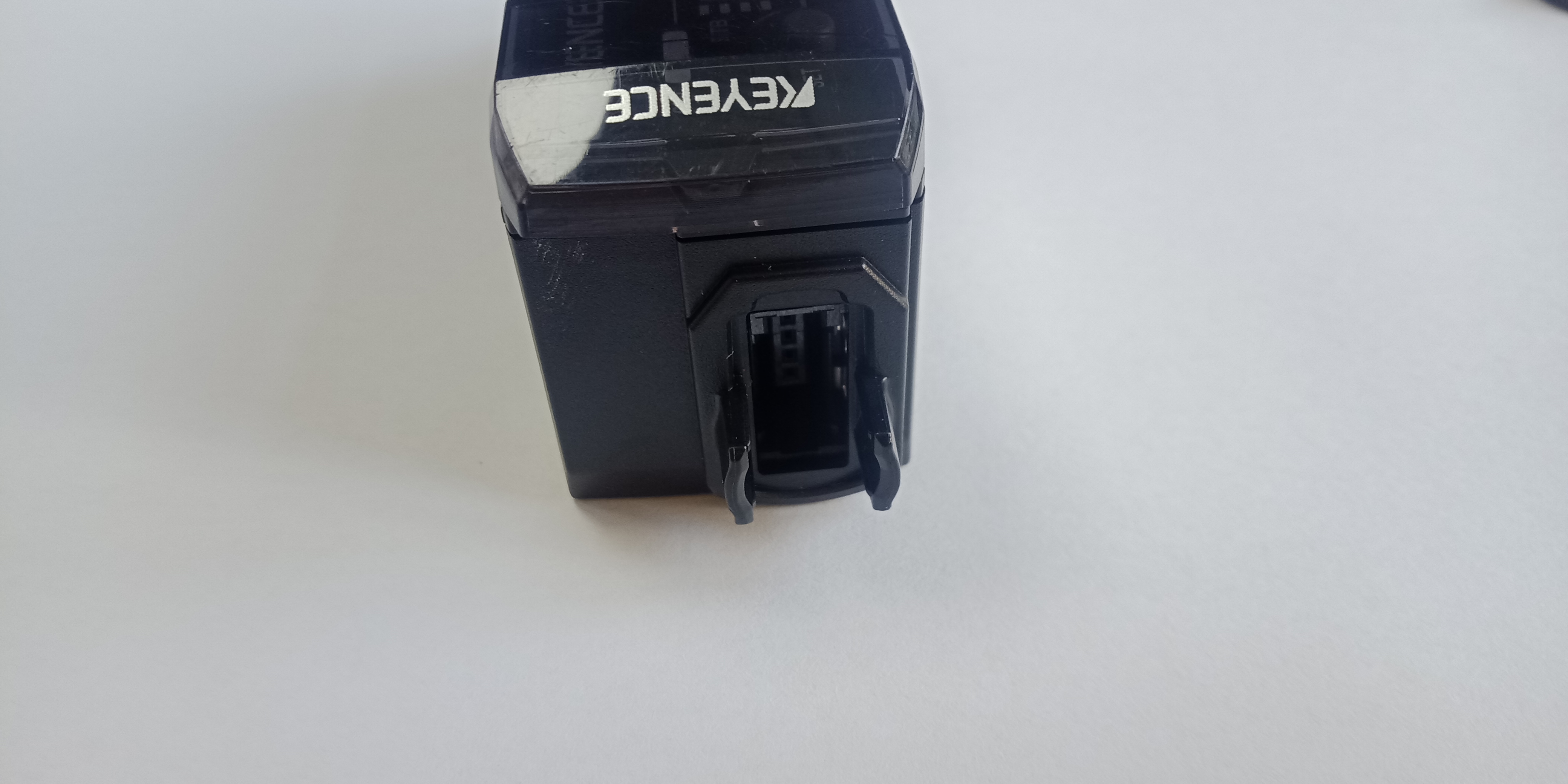

MU-N11, Multi-Sensor Controller, Main unit in LR-W series by KEYENCE America 키옌스 멀티 센서 컨트롤러 LR-W 시리즈 신품
Model
|
MU-N11
|
|||
Main unit/Expansion unit
|
Main unit
|
|||
Response time
|
Depends on the connected sensor model*1
|
|||
Power supply
|
Power supply voltage
|
24 VDC, ripple (P-P) 10% or less, Class 2 or LPS
|
||
Current consumption
|
70 mA or less (without load)*2
|
|||

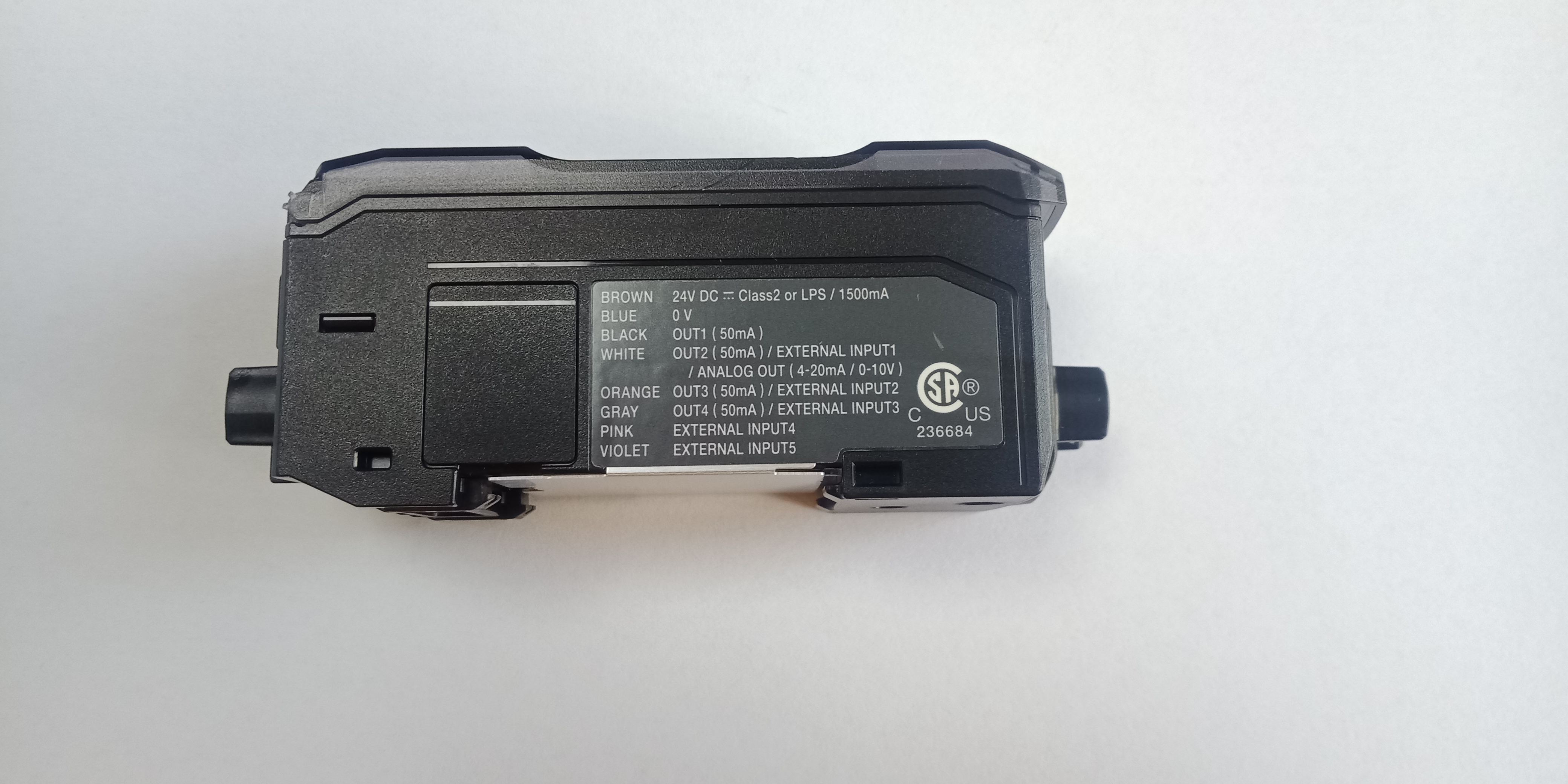

I/O
|
Control output
|
4 max.,
NPN open collector/PNP open collector selectable,
24 V or less,
Main unit: 50 mA or less*3,
Expansion unit: 20 mA or less,
Residual voltage: 2 V or less,
N.O./N.C. selectable
*1*4
|
||
External input
|
5 max.,
Short-circuit current: NPN: 1 mA or less,
PNP: 2 mA or less,
For the applied voltage, see wiring diagrams
(page 3 of the instruction manual)
*1*4
|
|||
Analog output
|
1 max.,
Current output/ Voltage output selectable,
Current output: 4 to 20 mA,
Max. load resistance: 450 ,
Voltage output: 0 to 10 V,
External load resistance: 5 kor more
*1*4
|
|||
Protection circuit
|
Protection against reverse power connection,
power supply surge, output overcurrent,
output surge, and reverse output connection
|
|||
Expansion units
|
Up to 4 expansion units*5
|
|||
Sensor
connection
specification
|
Allowable sensor current
|
150 mA or less
|
||
N-bus
connection
specification
|
Allowable passing
current
|
1200 mA or less
|
||
Environmental resistance
|
Ambient temperature
|
-20 to +50 °C -4 to 122 °F (No freezing)
|
||
Relative humidity
|
35 to 85 % RH (No condensation)
|
|||
Vibration resistance
|
10 to 55 Hz, Double amplitude 1.5 mm 0.06", 2 hours in each of the X, Y, and Z directions
|
|||
Shock resistance
|
1,000 m/s2, 6 times in each of the X, Y, and Z directions
|
|||
Material
|
Case and dust cover: Polycarbonate
Buttons: Polyacetal
Display panel: PMMA
|
|||
Weight
|
Approx. 70 g
|
|||
*1 The response time, as well as the types and number of inputs and outputs that are available, vary depending on the connected sensor model.
For details, see the specific "MU-N Series User's Manual" for the model that will be connected.
*2 1500 mA or less when a sensor is attached, 4 outputs (with loads) are used, and expansion units are connected.
*3 20 mA or less: When using the expansion unit.
*4 For more information on Control output, External input, and Analog output wire allocation, please refer to the table of "Power Cable Pin Layout" on page 3 of this manual.
*5 Up to 5 N-bus devices, including the main unit (or network unit), can be linked together.
|
