HOKUYO UXM-30LXH-EWA, 2D Laser Scanning Rangefinder power supply 10-30VDC (consumption current: Max: 1.5
UTM-30LX 2D 레이저 스캐닝 거리 측정 제품은 30m, 270° 측정 범위, IP64 보호 수준은 실외 설치, DC12V 입력, 25ms 스캔 시간에 사용할 수 있습니다.
Special:
product name

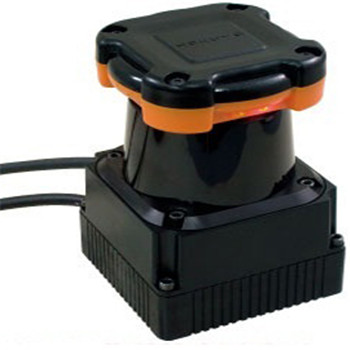

UTM-30LX 2D Laser Scanning Rangefinder
power supply
12VDC ± 10% (consumption current: Max: 1A, typical: 0.7A)
Laser light source
Semiconductor Laser Diode (λ=905nm), Laser Safety Level 1 (FDA)
Measuring distance
0.1 to 30m, Max.60m, 270°
Accuracy
0.1 to 10m: ±30mm; 10 to 30m: ±50mm
Angle resolution
0.25° (360°/1,440 steps)
Scan time
25msec/scan
noise
< 25dB
interface
USB2.0 (full speed)
Synchronous output
NPN open collector
Instruction system
Dedicated instructions SCIP Ver.2.0
connection
Power and synchronization: 2m flying lead wire
USB: 2m cable, type A connector
Environmental temperature and humidity
-10 to +50 degrees C, < 85%RH (without condensation)
vibration
Double amplitude 1.5mm 10 to 55Hz, 2 hours per axis
Impact
196m/s2, 10 Times, X, Y, Z Directions
weight
About 370g (including cable)
Main application:
– Robot environment identification (aircraft and terrestrial robots)
– Building intrusion protection (security)
- Automatic door/behavior recognition
– Automatic Navigation Vehicle (AGV) Obstacle Detection
