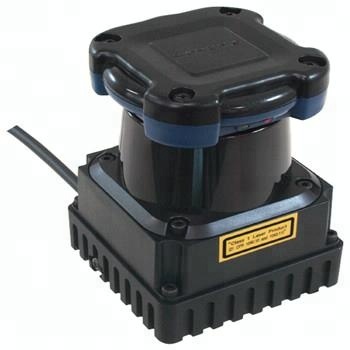

HOKUYO UTM-30LX-EW 2D laser scanning distance
호쿠요 레이저 스캐너 신품 수입
UTM-30LX-EW 2D 레이저 스캐닝 거리 측정 제품은 30m, 270° 측정 범위, IP67 보호 수준은 실외 설치에 사용할 수 있습니다. DC12V 입력, 25ms 스캐닝 시간. EW 시리즈는 실외 이동통신사의 탐색 및 장애물 회피를 위해 설계되었습니다. 3개의 에코, IP67 보호 및 이더넷 출력이 있습니다. 안개와 비와 같은 가혹한 환경에서 작업할 수 있습니다.
Speacial
product name
UTM-30LX-EW 2D Laser Scan Rangefinder
power supply
12VDC ± 10% (consumption current: Max: 1A, typical: 0.7A)
Laser light source
Semiconductor Laser Diode (λ=905nm), Laser Safety Level 1 (FDA)
Measuring distance
0.1 to 30m (White Kent Sheet), Max.60m, 270°
Accuracy
0.1 to 10m: ±30mm; 10 to 30m: ±50mm
Angle resolution
0.25° (360°/1,440 steps)
Scan time
25msec/scan
noise
< 25dB
interface
Ethernet 100BASE-TX
Synchronous output
NPN open collector
Instruction system
Dedicated instruction SCIP Ver.2.2
Number of echoes
3 echoes
Protection level
IP67
interface
Power and sync output
Ethernet 100BASE-TX, TCP/IP
Environmental temperature and humidity
-10 to +50 degrees C, < 85%RH (without condensation)
vibration
Double amplitude 1.5mm 10 to 55Hz, 2 hours per axis
Impact
196m/s2, 10 Times, X, Y, Z Directions
size
62mm*62mm*87.5mm
weight
About 210g
Main application:
– Robot environment identification (aircraft and terrestrial robots)
– Building intrusion protection (security)
- Automatic door/behavior recognition
– Automatic Navigation Vehicle (AGV) Obstacle Detection
