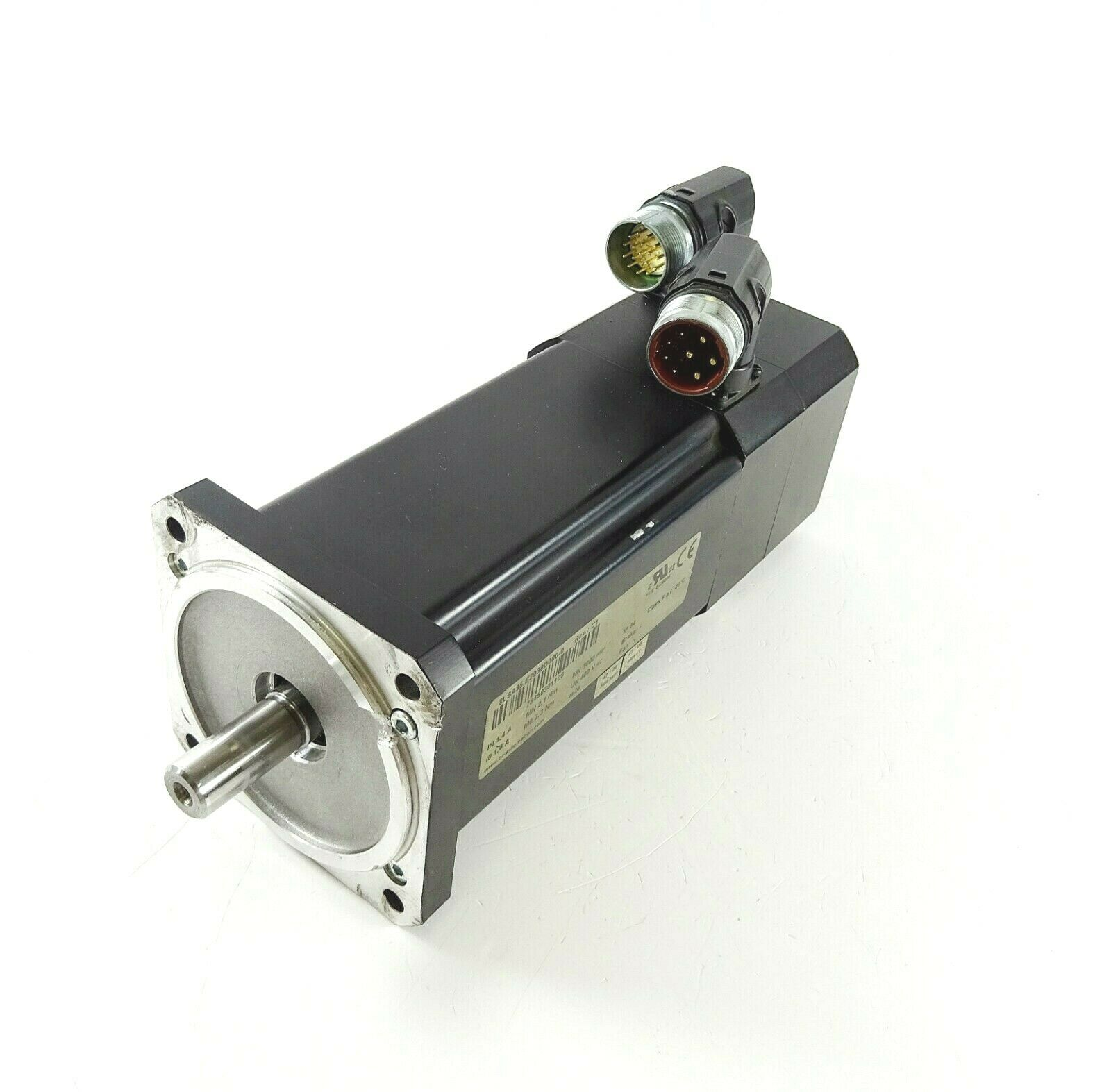

Synchronous motor, number of pole pairs: 4 pairs, nominal speed: 6,000 rpm, stall torque: 0.600 Nm, without brake, smooth shaft, angled connector (swivel), centering diameter 40 mm, j6 fit (self-cooling, construction type A), IP64 protection, without oil seal, 560 VDC, 2-pin R0 resolver
Motor
|
Nominal speed nN [rpm]
|
6000
|
|
Number of pole pairs
|
4
|
|
Nominal torque Mn [Nm]
|
0.52
|
|
Nominal power PN [W]
|
327
|
|
Nominal current IN [A]
|
0.71
|
|
Stall torque M0 [Nm]
|
0.6
|
|
Stall current I0 [A]
|
0.82
|
|
Maximum torque Mmax [Nm]
|
2.4
|
|
Maximum current Imax [A]
|
3.7
|
|
Maximum speed nmax [rpm]
|
9000
|
|
Torque constant KT [Nm/A]
|
0.73
|
|
Voltage constant KE [V/1000 rpm]
|
43.98
|
|
Stator resistance R2ph [Ω]
|
34.63
|
|
Stator inductance L2ph [mH]
|
49.6
|
|
Electrical time constant tel [ms]
|
1.4
|
|
Thermal time constant ttherm [min]
|
20
|
|
Moment of inertia J [kgcm2]
|
0.16
|
|
Weight without brake m [kg]
|
1.3
|
Holding brake
|
Holding torque of brake MBr [Nm]
|
2.2
|
|
Mass of brake [kg]
|
0.45
|
|
Moment of inertia of brake JBr [kgcm2]
|
0.12
|
Recommendations
|
ACOPOS 8Vxxxx.xx...
|
1010
|
|
ACOPOSmulti 8BVIxxxx...
|
0014
|
|
ACOPOS P3 8EIxxxx...
|
2X2X
|
|
Cross section for B&R motor cables [mm2]
|
0.75
|
|
Connector size
|
1
|
Options
|
Connection type
|
Connector
|
|
Connection direction
|
Angled (swivel connector)
|
|
Encoder
|
R0 Resolver 2-pin
|
|
Shaft end
|
Smooth shaft
|
