[수입판매] Red Lion Controls DSPSX000 Data Stations

(주)엠이티 M.E.T Co.,Ltd 2022. 3. 28. 17:58

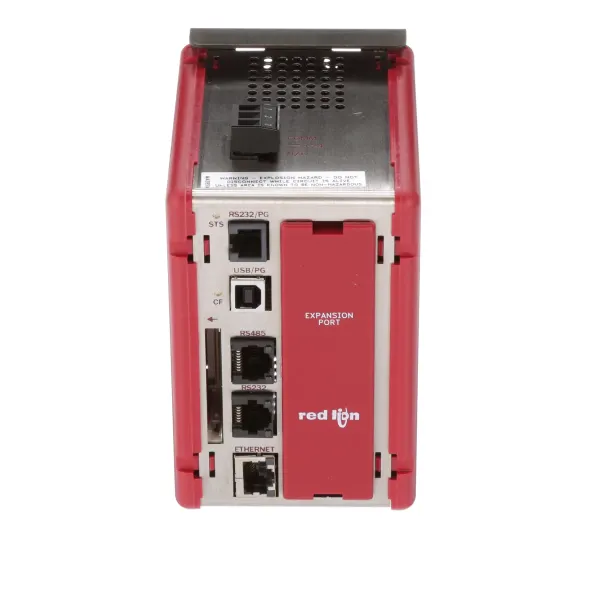

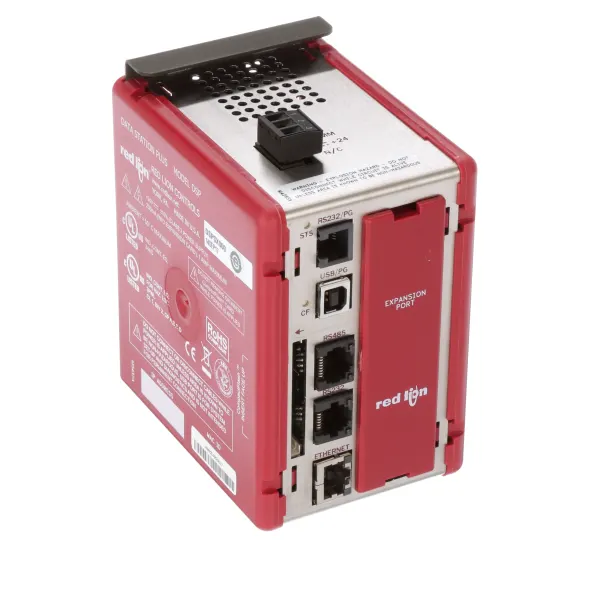

Red Lion Controls DSPSX000

Data Stations, Ethernet, USB 10BASE-T RS232, DIN Rail, 24V,4MB, QVGA, DSP Series

Overview

Red Lion DSPSX / DSPGT Series — Protocol Controller, Data Logger and Virtual HMI-VGA with Extended Temperature Range:

The Data Station Plus was designed to act as a nexus for industrial data collection and management. The unit offers multiple protocol conversion, data logging and remote machine access. With three built in serial ports and a 10 Base-T/100 Base-TX Ethernet port, the unit performs protocol conversion, allowing disparate devices to communicate seamlessly with one another. The Ethernet port supports up to ten protocols simultaneously using Crimson 3.0, so even Ethernet to Ethernet protocols can be converted. The CompactFlash card allows data to be collected and stored for later review. The files are stored in simple CSV file format allowing common applications, such as Microsoft Excel and Access, to view and manage the data. The free Websync utility provides a means to synchronize the files with a PC’s hard drive for permanent storage.

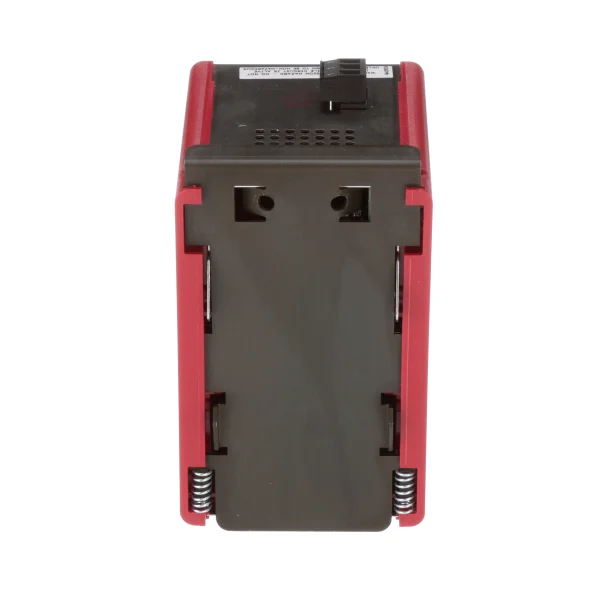

The CompactFlash card may also be used to load new configuration files into the Data Station. The built-in web server allows log files to be retrieved manually, and also provides access to the unique “virtual HMI”. The virtual HMI is programmed just like Red Lion’s G3 series of HMI. Any standard web browser such as Internet Explorer or Netscape may be used to monitor or control the HMI from a PC anywhere in the world. The USB port may be used for blazing fast file downloads, or to mount the Data Station’s CompactFlash card as an external drive to your PC. The Data Station’s DIN rail mounting saves time and panel space and snaps easily onto standard top hat (T) profile DIN rail.

Features:

Protocol Conversion Feature Converts Numerous Protocols Simultaneously

CompactFlash ® Slot Allows Process Data to be Logged Directly to CSV Files (DSPSX & DSPGT)

Virtual HMI Offers Built-in PC-based SCADA Functionality (DSPSX & DSPGT)

Webserver Provides Worldwide Access To Data Logs And Virtual HMI (DSPSX & DSPGT)

Extensive Built-in Driver List Allows Easy Data Mapping to PLCs, PCs, and SCADA Systems

Alarm Notifications can be sent via Email or Text Messages (DSPSX & DSPGT)

10 Base-T/100 Base-TX Ethernet Connection Can Connect To An Unlimited Number Of Devices Via Four Protocols Simultaneously

Independent Serial Ports Provide Virtually Unlimited Integration Methods

UL Listed for use in Hazardous Locations

​​
