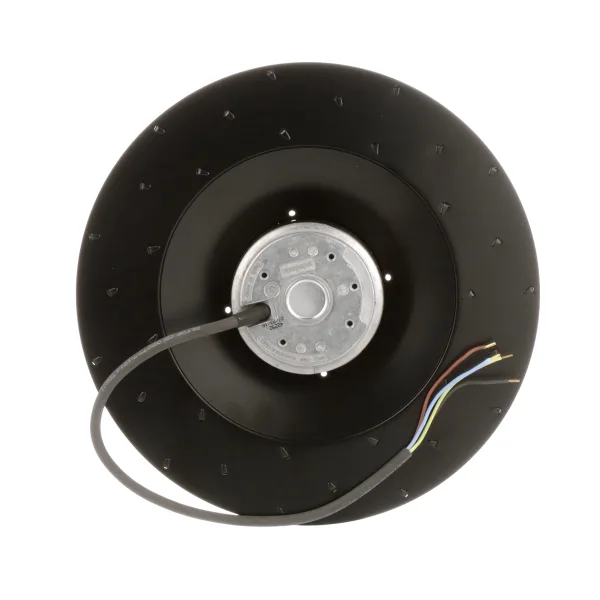

ebm-papst R2E280-AE52-05
Fan Blower, Round, Backward Curved, 230V, 225W, 2700RPM, R2E280 Series
Overview
ebm-papst R2E280 Series — AC Centrifugal Fans and Blowers with Backward Curved Blades:
ebm-papst centrifugal fans and blowers featuring backward curved blades are an ideal solution to a wide range of application requirements and are ideally suited for intake suction use. Additionally, ebm-papst centrifugal fans and blowers, specifically those used for intake suction using backward curved blades, do not require a scroll housing – increasing ease of use and versatility. The ebm-papst R2E280 series 230VAC double inlet centrifugal fan and blower integrated within the impeller that reduces installation dimensions. The fan is featured with backward curved blades. It is an ideal solution for a wide range of applications and also suitable for intake suction use. This fan does not require a scroll housing making it versatile and easy to use. These impellers are highly resistant to dust, dirt, and other contaminants, making them hydraulically efficient.
Features:
Backward-curved Impeller with 280mm diameter
Impeller: backward curved, Ø 280
Impeller Material: Sheet steel, coated in black
Impeller material is made from sheet steel and coated in black
The direction of rotation Clockwise, seen on rotor Insulation class "F", "B"
Mounting position: Shaft horizontal or rotor on bottom
Ball bearings are maintenance-free
Motor protection top wired internally
Noise level: 76dBA
Airflow: 2110m³/hour
Fan speed:2700rpm
Number of blades: 11
Direction of rotation: Clockwise, seen on rotor
Type of protection: IP44
Condensate discharges: Rotor-side
Mode of operation: Continuous operation (S1)
Bearings: Maintenance-free ball bearings
Motor protection: TOP wired internally
Cable exit: variable, axial
Protection class: I
Capacitor: FPU (P2) acc. to IEC 252
Product conforming to standards: EN 60335-1, CE
Approvals: CCC, GOST
