[수입판매] Balluff BMF00A2 Sensor 발러프 센서

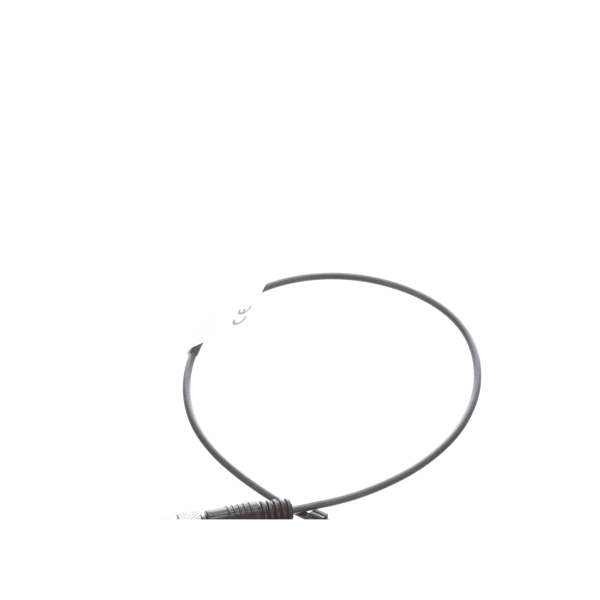

Balluff BMF00A2

​

Sensor, Magnetic Field, C-slot, Slide-in, 4mm, PNP, N/O, M8, .3m PUR Pigtail

​

​

Overview

Balluff BMF Series - Magnetic Sensor for T-slots with Multiple Switchpoints:

​

Balluff’s cylinder sensors for pull rod cylinders can be integrated into many applications. They are mounted with mounting brackets on cylinders with tie rods and DUO rails. The concept is suitable for the most common types of cylinders with any piston diameter. Features: contact-free detection of the piston position, tie rod Φ up to 17 mm, reliable switching behavior, wear-free, resistant to dirt, secure grip, easy installation.Balluff BMF Series - Magnetic Sensor for T-slots with Multiple Switchpoints:

​

Balluff’s cylinder sensors for pull rod cylinders can be integrated into many applications. They are mounted with mounting brackets on cylinders with tie rods and DUO rails. The concept is suitable for the most common types of cylinders with any piston diameter. Features: contact-free detection of the piston position, tie rod Φ up to 17 mm, reliable switching behavior, wear-free, resistant to dirt, secure grip, easy installation.

​

For cylinders and grippers a teachable magnetic sensor with two switch points replaces two standard sensors. For longer cylinders the additional switch point can be used for example for reducing the air pressure before the end of stroke position of the cylinder. IO-Link offers up to eight switchpoints and along with individual hysteresis settings. With a detection area of 60 mm, the sensor is ideally located in the middle of the cylinder offering the closest possible switchpoints. The teachable magnetic sensor for C-slots offers 10 mm more detection area vs standard offerings.

​

Features:

60 mm detection area with two teachable outputs – up to eight switchpoints with IO-Link

10 mm more traverse distance than other magnetic sensors

Sensor head length 27 mm, with remote electronics

PNP/NPN NO/NC; IO-Link PNP NO

Pigtail M12, M8 and 2 m cable

Temperature range –25 to +80 °C

​

​​

​

​

​
