[수입판매] Balluff BIS00W2 RFID Read/Write Head

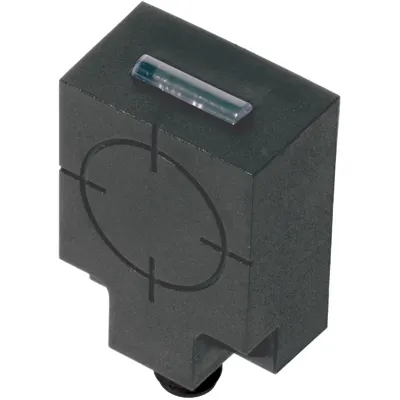

Balluff BIS00W2

​

RFID Read/Write Head, 40 x 24 x 56mm HF, M12x1, 8 Pin, BIS M Series

​

Overview

Balluff BIS M Series — High Frequency Industrial RFID System | HighTtransmission Speed for Large Volumes of Data:

​

The BIS M system uses a High Frequency or HF 13.56 MHz inductively coupled technology along with passive tags to provide mid-range RFID solutions as far as 400 mm. This system is ideal for closer range asset tracking, WIP (work in process) or production control such as palletized production or "on part" tracking and quality traceability applications. This system also offers high temperature, metal mount, hardened and disposable tagging options. Ideal for work in process (WIP) applications, the BIS M system is built to withstand the rigors of the manufacturing world. With tags built to survive temperatures of up to 220°C and systems capable of processing massive amounts of data quickly, chances are good that the M system will exceed most requirements for your data collection needs.

​

The RFID system BIS M supports global ISO standards and scores with a high transmission speed for large volumes of data. Through various combination options of data carriers and read/write heads, the system can be used for a variety of applications. The system is ideal, for example, in close-range parts tracking or for applications in production control such as palletizing or recording data on the workpiece. The main areas of application for the BIS M include internal company logistics, access control and copy protection. The powerful identification system is proven in all applications where lightning-fast data transfer and large read/write distances are required. Select the most suitable BIS M system for your application from the table.

​

BIS M Features:

4-pin standard wiring and IO-Link components

In combination with passive data carriers of average ranges up to a max. of 400 mm

Seamless integration in applications through global RFID standards ISO 15693 and ISO 14443A

All bus systems commonly used on a global basis available

Easy, fast commissioning

Balluff high-speed components (up to eight times faster than ISO 15693)

Customer-specific developments

A variety of accessories for an easy integration available at all places of use

​

BIS M uses the high frequency (HF) 13.56 MHz and supports the standard according to DIN ISO 15693. The processor units process the data captured by the read heads and relay it to the industrial fieldbus, which communicates with the PLC/PC. With type BIS V processor units, you can operate up to four read heads at once – regardless of whether they are LF, HF or UHF.

​

HF Processor Units (13.56 MHz):

Easy startup, minimal down-times: status indicators directly on the read/write head

Up to four read/write heads can be connected to the BIS V processor units

Connection via M12 plug connectors, cable length 50 m

Read/write heads for flush installation in metal

M12 designs with integrated antenna

Special read/write heads, for example, for transfer systems for simple assembly without additional mounting brackets

HF loop antennas for long ranges up to 400 mm

Customized designs possible

Tool ID components available

the same design as the BIS C read/write heads

​

Data carriers accompany the workpieces through the entire production process. In this context, they are in part exposed to extreme conditions from high temperatures, metal enclosure and environmental influences. Our data carriers withstand such environments with no questions asked. The wide product range from Balluff offers you the right product for virtually any requirement.

​

Data Carries Features:

Passive data carrier: The data and the required power are inductively coupled by the read/write head

All data carriers have a unique ID number; this number is read-only and cannot be modified

Can be used all over the world thanks to ISO 15693 conformity

EEPROM data carrier, up to 992 byte memory

FRAM data carrier with up to 128 kB for almost unlimited feed cycles

Attachment by adhesion or screws

High level of protection up to IP68/69K

A wide variety of properties, such as installation on metal, high temperature, etc.

For time-critical applications: Balluff high-speed data carriers are up to eight times faster than ISO 15693

Special key data carriers for transfer systems that are read/write on two sides

Data carriers available in compact sizes

Databolts are easy to attach to the object and can then be quickly detached

​

Read/write heads with integrated processor unit are the mediators between data carrier and PC or the controller. Benefit to you: because antenna, electronics and interface are located in one housing, an additional processor unit is eliminated. In addition, easy integration saves on installation expense. Variants with separate electronics are also suitable for tight installation conditions and provide leeway during the installation.

​

HF read/write Units Features:

Available interfaces: Serial RS232, RS485/Subnet 16, RS422, USB

New also with bus interface: Connect All-in-One RFID Reader BIS M-4008 direct to Profinet

Reliable use in harsh environments: rugged IP67 housing

Status displays directly on the housing of the reader facilitate the commissioning and minimize down times

​

​

​​

​

​

​
