[수입판매] Sensata - BEI Sensors 01070-552

(주)엠이티 M.E.T Co.,Ltd 2022. 5. 23. 17:24

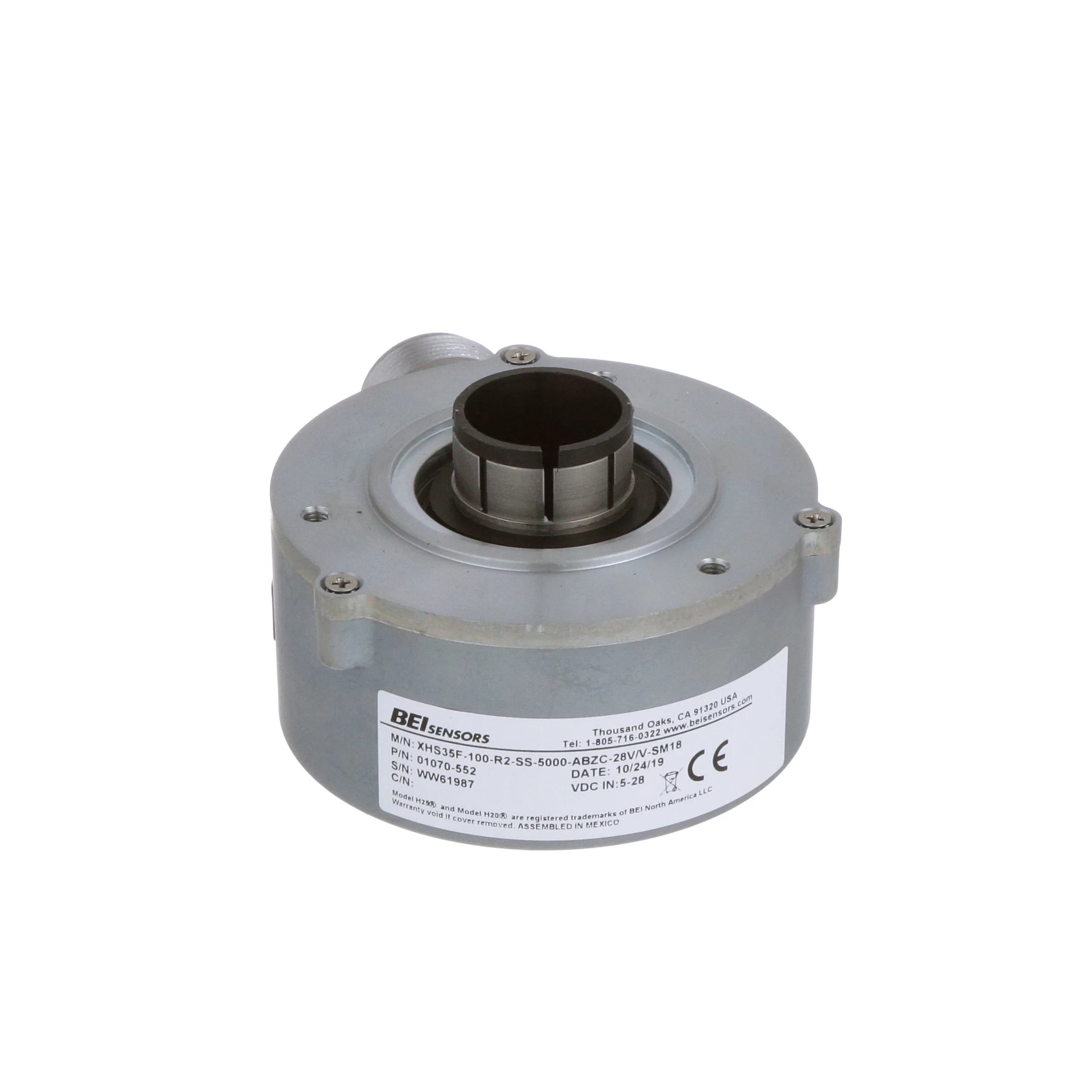

Sensata - BEI Sensors 01070-552

Encoder,Incremental,Optical,5-28Vin/out,5000 Cycles/turn,IP65,Express,1" Shaft

Overview

HS35 Incremental Optical Encoder

The HS35 Series combines the rugged, heavy-duty features usually associated with shafted encoders into a hollow shaft style. The HS35 accommodates shafts up to 1" in diameter. With optional insulating inserts, it can be mounted on smaller diameter shafts. It can be mounted on a through shaft or a blind shaft with a closed cover to maintain its environmental rating. The HS35 is also available with a dual output option (inset) to provide redundant encoder signals, dual resolutions, or to supply two separate controllers from a single encoder.

Features:

Dual bearings and shaft seals

NEMA 4, 13 and IP65 environmental ratings

Rugged metal housing

Sealed connectors or cable glands.

Applications:

Motor feedback and Vector control

Printing industries

Robotic control

Oil service industries

Web process control
