[수입판매] IDEC Corporation FC6A-N16B1

(주)엠이티 M.E.T Co.,Ltd 2022. 6. 15. 17:54

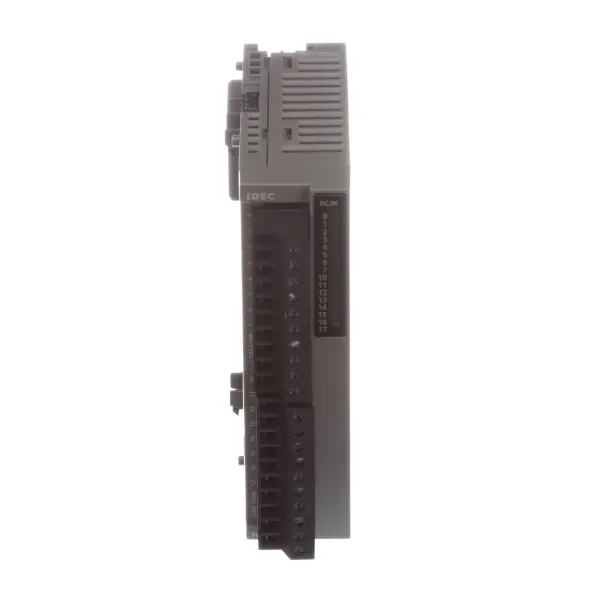

IDEC Corporation FC6A-N16B1

Module, FC6A SERIES MicroSmart, 24 VDC Input, 16 Inputs, Screw

Overview

IDEC MicroSmart Family | MicroSmart FC6A Series - 6th-Generation Smart Solution for Small-Scale Automation Systems:

The MicroSmart FC6A series is available in two types of CPUs: Plus and All-in-One. The Plus type has a dual RJ45 Ethernet port, embedded web server functions and the capability to expand up to 2060 I/O, while the All-in-One type has an embedded serial port and RJ45 Ethernet port capable of expanding up to 520 I/O.

MicroSmart FC6A Plus: The next generation IDEC MicroSmart FC6A Plus PLC stretches performance beyond micro PLC limits! With its 2,060 I/O capacity, this PLC can control large machines or entire small-scale manufacturing facilities, providing more capabilities for even the most demanding applications. A powerful micro PLC with up to 520 digital I/O and 126 analog I/O. Three models are available, each with 24V DC or 100-240V AC input power. The 16 I/O model has 9 inputs, and 7 relay or transistor outputs. The 24 I/O model has 14 inputs, and 10 relay or transistor outputs. The 40 I/O model has 24 inputs, and 16 relay or transistor outputs. Each model also includes an integral 0-10V DC analog input. The 16 and 24 I/O models can accommodate one plug-in cartridge, while the 40 I/O model can accommodate two plug-in analog cartridges.

Two models are available, each with 24V DC input power. The 16 I/O model has 8 inputs and 8 relay or transistor outputs. The 32 I/O model has 16 inputs and 16 transistor outputs. Each model also includes an integral 0-10V DC analog input with 12-bit resolution, and can accommodate up to three plug-in discrete, analog, serial communication or Bluetooth cartridges.

Features:

WindEDIT App for iOS and Android

Bluetooth communication

Embedded SD port

Modbus TCP and RTU

Data Logging

Plus Type:

Dual RJ45 Ethernet ports

Up to 33 serial ports

Maximum 2060 digital I/O

Maximum 511 analog I/O

BACnet (spring 2018)

All-in-One Type:

Embedded Ethernet port

SAE J1939 CPU

Maximum 520 digital I/O

Maximum 126 analog I/O

Embedded RS232C/RS485 user selectable
