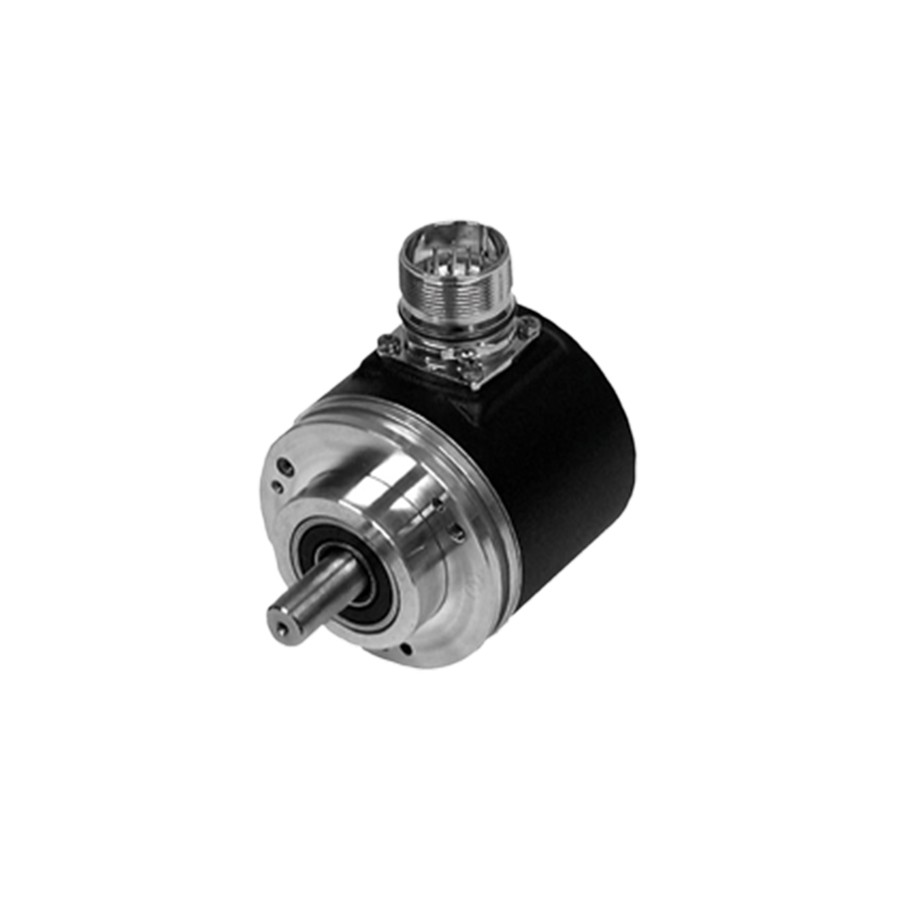

[수입판매] PEPPERL & FUCHS Singleturn absolute rotary encoder AVS58N-011YYRYGN-0014 P&F 로터리 엔코더
- YY: Connector 9416L with special assignment
- Y: Power supply 5 V DC
- 14 Bit singleturn
- Hardware encoder
- Data transfer up to 2 MBaud
- Optically isolated RS 422 interface
- Clamping flange
Functional safety related parameters
|
||
MTTFd
|
170 a
|
|
Mission Time (TM)
|
20 a
|
|
L10
|
1.9 E+11 at 6000 rpm and 20/40 N axial/radial shaft load
|
|
Diagnostic Coverage (DC)
|
0 %
|
|
Electrical specifications
|
||
Operating voltage
|
5 V DC
|
|
No-load supply current
|
max. 120 mA
|
|
Linearity
|
± 2 LSB at 14 Bit, ± 1 LSB at 13 Bit, ± 0,5 LSB at 12 Bit
|
|
Output code
|
Gray code
|
|
Code course (counting direction)
|
cw descending (clockwise rotation, code course descending)
|
|
Interface
|
||
Interface type
|
SSI
|
|
Monoflop time
|
20 ± 10 µs
|
|
Resolution
|
||
Single turn
|
14 Bit
|
|
Overall resolution
|
14 Bit
|
|
Transfer rate
|
0.1 ... 2 MBit/s
|
|
Standard conformity
|
RS 422
|
|
Connection
|
||
Connector
|
type 9416L (M23), 12-pin
|
|
Standard conformity
|
||
Degree of protection
|
DIN EN 60529, IP65
|
|
Climatic testing
|
DIN EN 60068-2-3, no moisture condensation
|
|
Emitted interference
|
EN 61000-6-4:2007
|
|
Noise immunity
|
EN 61000-6-2:2005
|
|
Shock resistance
|
DIN EN 60068-2-27, 100 g, 3 ms
|
|
Vibration resistance
|
DIN EN 60068-2-6, 10 g, 10 ... 2000 Hz
|
|
Ambient conditions
|
||
Operating temperature
|
-40 ... 85 °C (-40 ... 185 °F)
|
|
Storage temperature
|
-40 ... 85 °C (-40 ... 185 °F)
|
|
Mechanical specifications
|
||
Material
|
housing: powder coated aluminum
flange: aluminum
shaft: stainless steel
|
|
Mass
|
approx. 460 g
|
|
Rotational speed
|
max. 12000 min -1
|
|
Moment of inertia
|
50 gcm2
|
|
Starting torque
|
< 5 Ncm
|
|
Shaft load
|
||
Axial
|
40 N
|
|
Radial
|
110 N
|
