GIGAIPC 산업용 메인보드 Thin Mini ITX iTXL-1900A

(주)엠이티 M.E.T Co.,Ltd 2021. 8. 5. 17:31

자세한 견적 문의는

TEL : 1670-8257 내선) 441,442

H.P : 010-3039-3013, 010-9831-8257

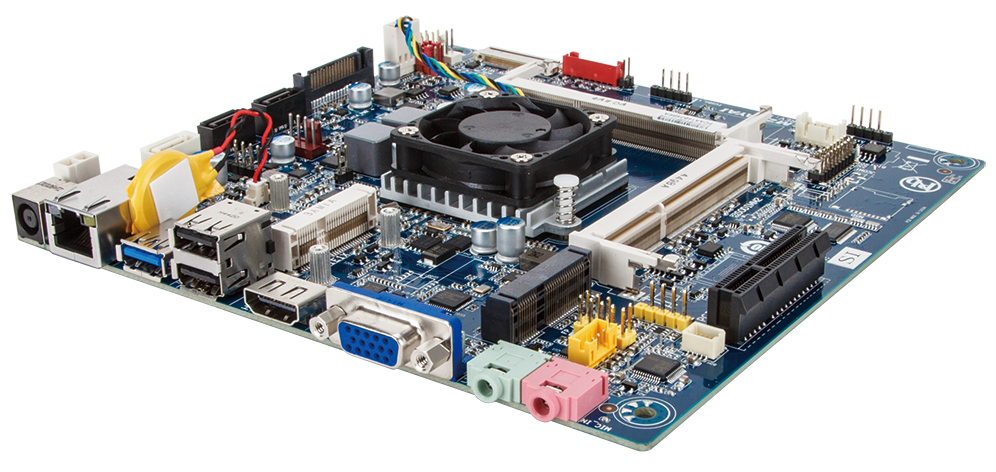

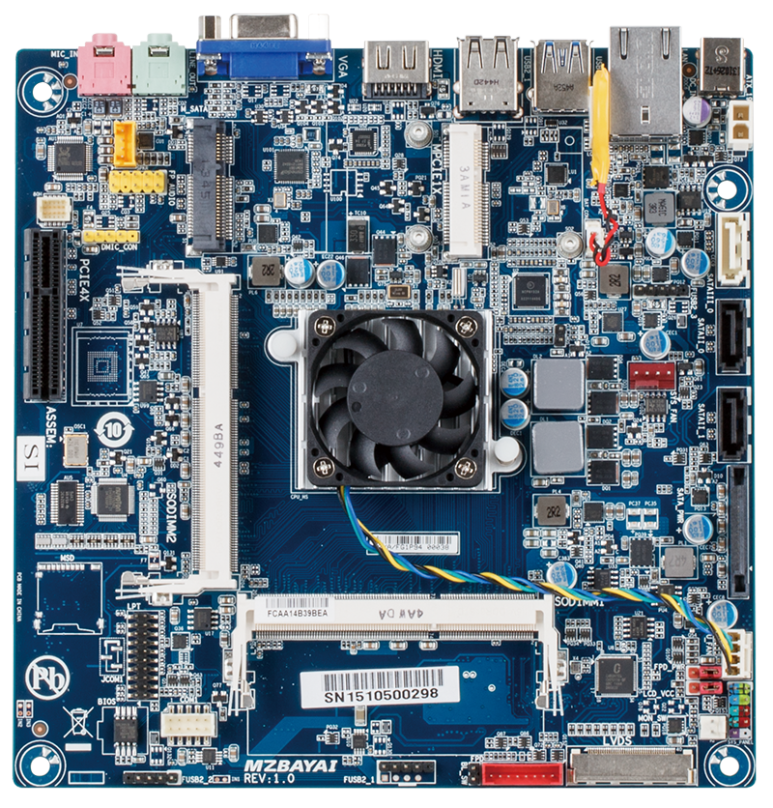

iTXL-1900A

Thin Mini-ITX Embedded Motherboard with Intel® J1900 Processor, Dual Channel DDR3L memory, 1 x COM, 2 x SATA 3Gb/s, 6 x USB

GIGAIPC 산업용 메인보드 Thin Mini ITX iTXL-1900A

기가아이피씨

산업용 메인보드, 미니 임베디드 마더보드

드라이버 & 매뉴얼 다운로드


Key Features

Thin Mini-ITX form factor

Intel® Celeron® Processor J1900

Dual Channel DDR3L, 2 x SO-DIMMs

1 x GbE LAN port

2 x SATA 3Gb/s ports, 1 x SATA 6Gb/s (optional)

HDMI, VGA, LVDS ports for multiple display

1 x PCIe x4 (2.0 x4 bus)

1 x RS232 COM port




Specification

Form Factor Thin Mini-ITX
170W x 170D(mm)
CPU Intel® Celeron® Processor J1900
22nm, 4 cores, 4 threads, up to 2.42 GHz
TDP 10W
Socket 1 x FCBGA1170
Memory 2 x DDR3L SO-DIMM sockets, Max. Capacity 8GB
Support Dual channel DDR3L 1333MHz memory modules
Ethernet 1 x GbE LAN port (Realtek® RTL8111G)
Video Integrated Graphics Processor - Intel® HD Graphics:
1 x HDMI 1.4 port, supporting max. resolution of 1920x1080 @60Hz
1 x VGA port, supporting max. resolution of 2560x1600 @60Hz
1 x LVDS port, supporting max. resolution of 1920x1080 @60Hz
(2 independent display outputs)
Audio Realtek® Audio Codec
Storage 1 x SATA 6Gb/s port (switches with mSATA)
2 x SATA 3Gb/s ports eMMC (Optional)
Expansion Slots 1 x PCIe x4 (Gen2 x1)
1 x mSATA (SATA 6Gb/s)
1 x Half-size Mini PCIe
Internal I/O 1 x 2-pin ATX main power connector
1 x SATA power connector
1 x CPU fan header
1 x System fan header
1 x Front panel header
1 x Front audio header
1 x 3W Speaker out header
1 x DMIC header
3 x USB 2.0 headers
1 x COM Header (RS-232)
1 x FPD (For LVDS 19V)
1 x FPD_SW 1x3 (For Panel Power SW)
1 x LCD_VCC Pin header
1 x Backlight Control header
1 x LPT header
1 x Micro SD connector

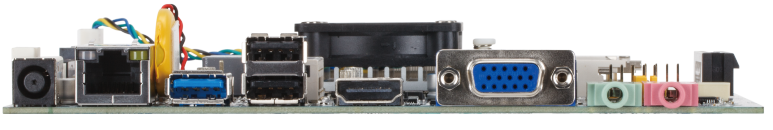

Rear I/O 2 x Audio jacks (Line out, Mic in)
1 x HDMI
1 x VGA
1 x RJ45 LAN port
2 x USB 2.0
1 x USB 3.0
1 x DC Jack (+12V/+19VDC)
OS Compatibility Windows 7 (x64)
Windows 8 (x64)
Windows 8.1 (x64)
Operating Properties Operating temperature: 0°C to 60°C
Operating humidity: 0-90% (non-condensing)
Non-operating temperature: -20°C to 70°C
Non-operating humidity: 0%-95% (non-condensing)
Packing content Capacity: 20pcs
Carton size: 550 x 451 x 330(mm)
Content:
IO Shield x 1 (P/N: 12AIO-MZBAY1-00R)
IO Shield STD x 1(P/N: 12AIO-MZBAY0-00R)
SCREW I HEAD M2x4L H=0.8 x 3 (P/N: 25KSG-130042-S0R)
SATA Power cable x 1 (P/N: 25CRI-710300-S8R)
Driver CD x 1 (P/N: 12DC1-10MZBA-00R)
Order information 9MZBAYAINR-SI (Bulk Packing)
