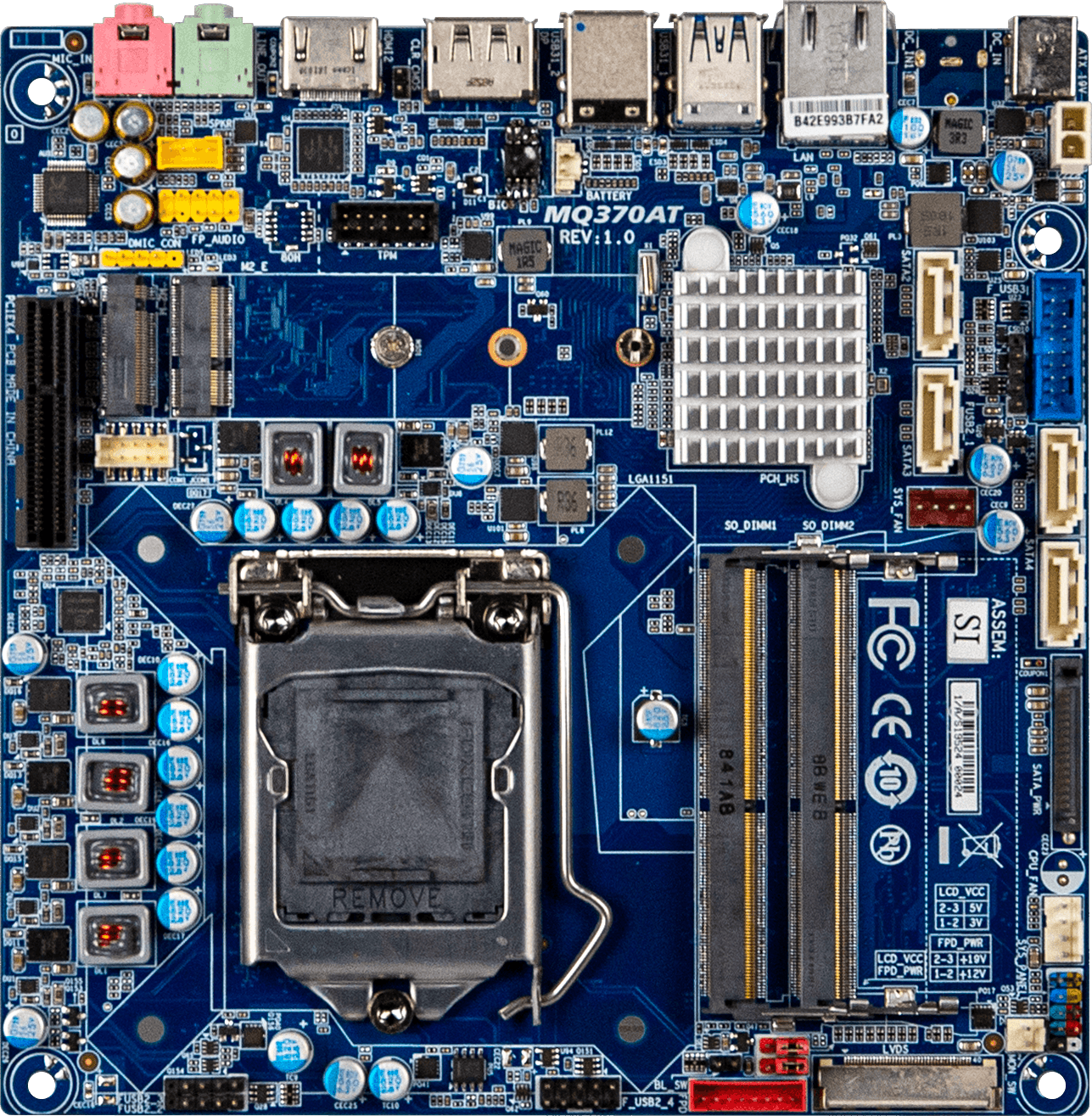

iTXL-Q370A
Thin Mini-ITX with Intel® Q370 Chipset and support for 9th/8th Generation Intel® Core™ Processors, Dual-channel DDR4 memory, PCIe, 1 x COM, 11 x USB, 4 x SATA 6Gb/s
GIGAIPC 산업용 메인보드 Thin Mini ITX iTXL-Q370A
기가아이피씨
산업용 메인보드, 미니 임베디드 마더보드
Key Features
Thin Mini-ITX form factor
Supports 9th/8th Generation Intel® Core™ Processors
Dual Channel DDR4, 2 x SO-DIMMs
1 x GbE LAN port
4 x SATA 6Gb/s ports
HDMI 2.0, Display Port, LVDS ports for multiple display
1 x RS232 COM port
Specification
Form Factor | Thin Mini-ITX 170W x 170D(mm) |
CPU | Support for 9/8th Generation Intel® Core™ i7/i5/i3 processors, Pentium® & Celeron® processors in the LGA1151 package TDP under 65W L3 cache varies with CPU |
Socket | 1 x LGA 1151 |
Chipset | Intel® Q370 Express Chipset |
Memory | 2 x DDR4 SO-DIMM sockets, Max. Capacity 32GB Support Dual channel DDR4 2666/2400 MHz memory modules |
Ethernet | 1 x GbE LAN port (Intel® i219LM) |
Video | Integrated Graphics Processor - Intel® HD Graphics support: 1 x HDMI 2.0 port, supporting a maximum resolution of 4096x2160 @60Hz 1 x DP port, supporting a maximum resolution of 4096x2160 @60Hz 1 x LVDS port, supporting a maximum resolution of 1920x1080 @60Hz (3 independent display outputs) |
Audio | Realtek® Audio Codec |
Storage | 4 x SATA 6Gb/s ports (RAID 0/1/5/10) |
Expansion Slots | 1 x PCIe x4 (Gen3 x4) 1 x 2280/2260 M.2 M-Key (PCIe x4, SATA 6Gb/s, Optane memory) 1 x 2230 M.2 E-Key |
Internal I/O | 1 x 2-pin ATX main power connector 1 x SATA Power connector 1 x CPU fan header 1 x System fan header 1 x Front panel header 1 x Front panel audio header 1 x 3W Speaker out header 1 x DMIC header 5 x USB 2.0 headers 2 x USB 3.0 headers 1 x COM header (RS-232) 1 x FPD (For LVDS 19V) 1 x FPD_SW 1x3 (For Panel Power SW) 1 x LCD_VCC Pin header 1 x Backlight Control header |

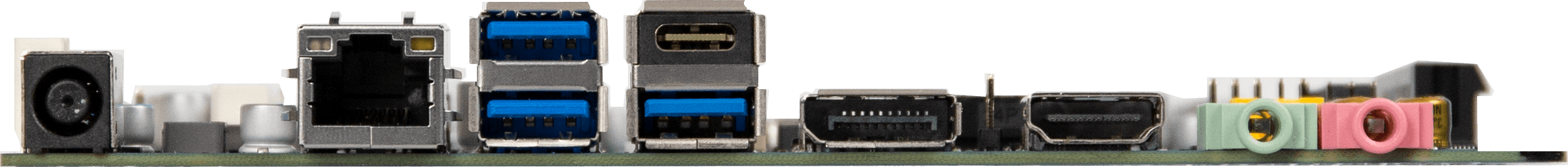

Rear I/O | 2 x Audio Jacks (Line out, Mic in) 1 x HDMI 1 x Display Port 1 x RJ45 LAN port 3 x USB 3.0 1 x USB 3.0 Type C 1 x DC Jack (+12V/+19VDC) |
TPM | 1 x TPM Header |
OS Compatibility | Windows 10 (x64) |
Operating Properties | Operating temperature: 0°C to 60°C Operating humidity: 0-90% (non-condensing) Non-operating temperature: -40°C to 85°C Non-operating humidity: 0%-95% (non-condensing) |
Packing content | Capacity: 10pcs Carton size: 465 x 351 x 217(mm) Content: IO Shield x 1 (P/N: 12AIO-MCH370-00R) SATA Power cable x 1 (P/N: 25CRI-710300-K1R) |
Order Information | 9MQ370ATMR-SI (Box Packing) |
Optional Kit | TPM 2.0 module: 9CTM000NR-00 |
