QBiX-KBLA7100H-A1

Industrial system with Intel® Core™ i3-7100U Processor/ HDMI 2.0 & mini DP output for 4K resolution/ USB 3.0 port/ COM port / M.2 2230/2280 slots

GIGAIPC 산업용 임베디드 QBiX-PLUS-KBLA7100-A1

기가아이피씨

산업 자동화, 키오스크, IoT 시스템

드라이버 & 매뉴얼 다운로드


Key Features

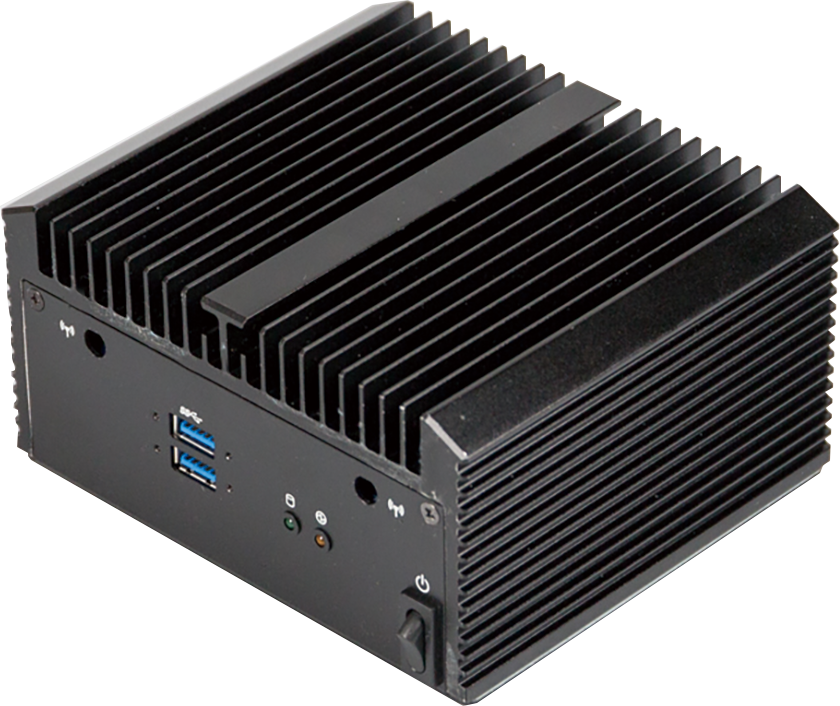

System Size : 138W x 118D x 74.2H (mm)

Intel® Core™ i3-7100U Processor

1 x RS232 COM Port

Dual Channel DDR4, 2 x SO-DIMMs

HDMI, Mini Display port for Dual display

1 x GbE LAN port

Application

Factory Automation

KIOSK / POS

Embedded & Industrial Applications

IoT system


Specification

QBiX Series of GIGAIPC embedded system is implemented with GIGAIPC QBi (10x10 Motherboards). It's designed as palm-sized, fan-less and ruggedized computing solution dedicated to thin client, POS, KIOSK, smart factory automation, industrial controller system and space-limited applications, with VESA mout 75x75 and 100x100 for options

QBiX-KBLA7100H-A1 is powered by Intel® Core™ i3-7100U Processor to provide high performance and stability. It is designed with full range +12-24V DC power inputs for operating temperature of 0°C~50°C. The system supports 2.5" HDD/SSD (SATA 6Gb/s) with vibration resistance of 5 Grms/5~500Hz and shock endurance to 50G/11ms, to meet industrial standard.

It's available with rich features of both HDMI 2.0 & mini DP output for 4K resolution, 4 x USB 3.0 port, 1 x RS-232 COM port to work with different peripherals of devices and M.2 2230/2280 slots for expansion.

Dimension 138W x 118D x 74.2H (mm)
CPU Intel® Core™ i3-7100U Processor
14nm, 2 cores, 4 threads, up to 2.4 GHz
TDP 15W
3 MB SmartCache
Chipset SoC
Memory 2 x DDR4 SO-DIMM sockets, Max. Capacity 32 GB
Support Dual Channel DDR4 2133 MHz memory modules
Ethernet 1 x GbE LAN port (Intel® i219V)
Graphic support Integrated Graphics Processor - Intel® HD Graphics 620:
1 x HDMI 2.0 port, supporting a maximum resolution of 4096x2160 @60Hz
1 x mini DP port, supporting a maximum resolution of 4096x2160 @60Hz
(2 independent display outputs)
Audio Intel® integrated Audio
Storage 1 x 2.5" HDD/SSD (SATA 6Gb/s)
Expansion Slots 1 x 2280 M.2 M-Key (PCIe x4, SATA 6Gb/s)
1 x 2230 M.2 E-Key (WiFi/BT)
Front I/O 2 x USB 3.0
1 x Power switch
2 x External Antenna (optional)
1 x HDD LED
1 x Power LED

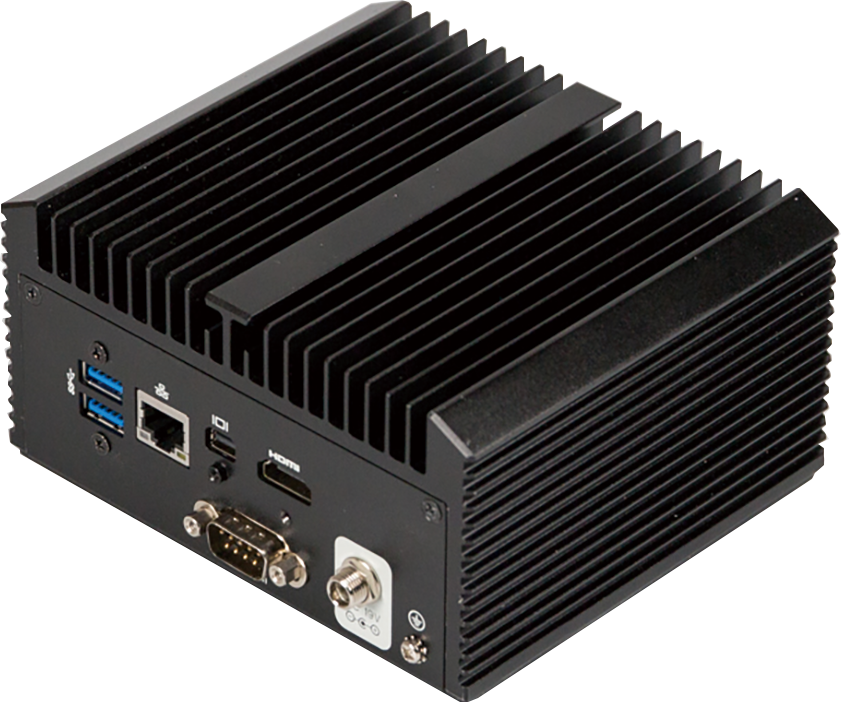

Rear I/O 1 x RJ45 LAN port
2 x USB 3.0
1 x HDMI
1 x Mini Display port
1 x COM (RS-232)
1 x Screw type DC Jack
Power +12~24VDC Full Range (Adapter 19V/65W)
Operation temperature Operating temperature: 0°C to 50°C
Operating humidity: 0-90% (non-condensing)
Non-operating temperature: -40°C to 85°C
Non-operating humidity: 0%-95% (non-condensing)
Use wide temperature range memory and storage
Vibration During Operation Operation: IEC 60068-2-64, 5 Grms, random, 5 ~ 500 Hz, 1 hr / Per Axis, With SSD
Non-operation: IEC 60068-2-6, 2 G, Sine, 10 ~ 500 Hz, 1 Oct/min, 1 hr / Per Axis
Shock During Operation Operation: IEC 60068-2-27, 50 G, half sine, 11 ms duration, With SSD
Packing content Box Packing Capacity: 6pcs
Carton size: 416x409x296(mm)
Content:
POWER CORD 3Cx18AWG SVT US x 1 (P/N: 25CP0-007001-Q0R)
PSU ADP 19V 65W 100-240VAC x 1 (P/N: 25EP2-10065L-F3S)
VESA_RS_BKT_KP x 1 (P/N: 25HB1-TPL021-S8R)
VESA-SCREW-ASM x 1 (P/N: 25KSD-000001-S4R)
SCREW I HEAD FOR 25HDD M3x8L x 4 (P/N: 25KSG-130081-K1R)
THERMAL PAD HDD x 2 (P/N: 25ST3-200052-T5R)
THERMAL PAD DRAM2 x 1 (P/N: 25ST3-200051-T5R)
CABLE SATA+Power x 1 (P/N: 25CRA-010000-S9R)
Order information 6BCKAAMR-SI (Box packing)
Optional Kit TPM 2.0 module P/N: 9CTM000NR-00
TPM Cable P/N: 25CRZ-100600-S9R
