GIGAIPC 산업용 메인보드 10x10 SBC Gemini Lake QBi-4125A

(주)엠이티 M.E.T Co.,Ltd 2021. 8. 19. 11:20

자세한 견적 문의는

TEL : 1670-8257 내선) 441,442

H.P : 010-3039-3013, 010-9831-8257

QBi-4125A

Embedded Compact Board with Intel® Celeron® J4125 Processor, Single Channel DDR4 memory, 1 x COM, 1 x SATA 6Gb/s, 6 x USB

GIGAIPC 산업용 메인보드 10x10 SBC Gemini Lake QBi-4125A

기가아이피씨

산업용 메인보드, 미니 임베디드 마더보드

드라이버 & 매뉴얼 다운로드


Key Features

Embedded IPC Motherboard

Intel® Celeron® J4125 Processor

Single Channel DDR4, 1 x SO-DIMM

2 x GbE LAN port

1 x SATA 6Gb/s ports

2 x HDMI port, eDP ports for multiple display

1 x RS232 COM port


Specification

Form Factor Embedded Compact Board
105W x 110D(mm)
CPU Intel® Celeron® J4125 Processor
14nm, 4 cores, 4 threads, up to 2.7 GHz
TDP 10W
SOCKET 1 x FCBGA 1090
MEMORY 1 x DDR4 SO-DIMM sockets, Max. Capacity 8GB
Support Single Channel DDR4 2400 MHz memory module
ETHERNET 2 x GbE LAN ports (Intel® i211AT & Realtek® RTL8111HS)
VIDEO Integrated Graphics Processor - Intel® UHD Graphics 600:
2 x HDMI 1.4 ports, supporting a maximum resolution of 4096x2160 @30Hz
1 x eDP port, supporting a maximum resolution of 3840x2160 @60Hz
(3 independent display outputs)
AUDIO Realtek® Audio Codec
STORAGE 1 x 2.5" HDD/SSD (SATA 6Gb/s)
EXPANSION SLOTS 1 x 2280 M.2 M-Key (SATA 6Gb/s)
1 x 2230 M.2 E-Key
INTERNAL I/O 1 x 2-pin Box header power connector
1 x SATA Power header
1 x CPU fan header
1 x Front panel header
2 x USB 2.0 headers
1 x Speaker out header

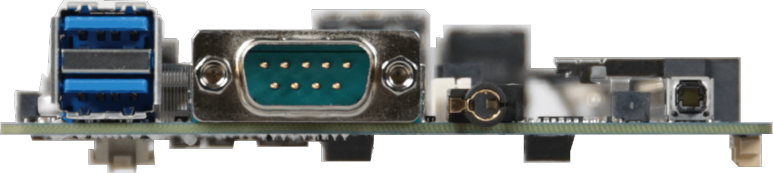

FRONT I/O 2 x USB 3.0
1 x COM port (RS232)
1 x Headphone Jack
1 x Power button

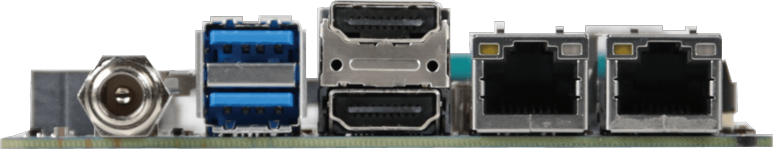

REAR I/O 2 x RJ45 LAN ports
2 x USB 3.0
2 x HDMI
1 x Screw type DC Jack (+12V~19VDC)
OS COMPATIBILITY Windows 10 (x64)
OPERATING PROPERTIES Operating temperature: 0°C to +60°C
Operating humidity: 0-90% (non-condensing)
Non-operating temperature: -40°C to +85°C
Non-operating humidity: 0%-95% (non-condensing)
PACKAGING CONTENT Capacity: 10pcs
Carton size: 465x351x217(mm)
Content:
CABLE SATA POWER 150mm x 1 (P/N: 25CRI-150621-K1R)
Order information 9MGMLKAHMR-SI (Box Packing)
OPTIONAL KIT Fanless Heatsink P/N: 12SP2-090019-00R
Heat spreader P/N: 25ST5-CGAA00-A8R
TPM 2.0 module P/N: 9CTM000NR-00
TPM Cable P/N: 25CRZ-100600-S9R
