[수입판매] HOKUYO PBS-03JN 2D LED lighting, distance measurement detection sensors

(주)엠이티 M.E.T Co.,Ltd 2022. 1. 27. 17:51

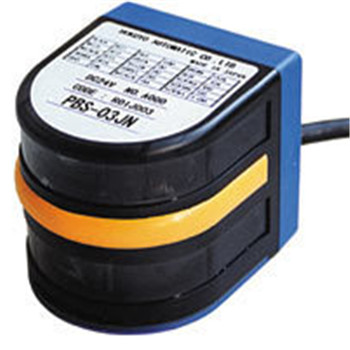

HOKUYO PBS-03JN 2D LED lighting, distance measurement detection sensors

호쿠요 LED 거리 측정 감지 센서 신품 수입

HOKUYO의 PBS-03JN 2D 제품은 적외선 LED 조명, 거리 측정 감지 센서, 편리한 모니터링 영역, 반사형 광전 센서보다 안정적인 성능, 180° 측정 범위, DC24V 입력입니다. 무인밴, 환승차량, 보행자, 낙하물 감지에 적용하여 사고를 예방합니다. 스캐닝 영역을 설정할 수 있으며 3가지 출력(경보, 감속, 비상정지)이 있습니다.

Special

product name

PBS-03JN, LED area obstacle detection sensor

Supply voltage

24VDC (18-30VDC)

Supply current

<250ma (<100ma, lighting off)

Laser light source

Infrared LED

Monitoring object and scope

300×300mm white paper; 0.2 to 3m×2m (the origin is the scanning center position), scanning angle 180°

Locale output 1

0-10m free setting (10m is not guaranteed)

Locale output 2, 3

Rectangular setting / sector setting / percentage setting

Two scanning modes

Output can be set individually for each area

Hysteresis

< 10% of monitoring distance

Output

Photocoupler/NPN open collector output (30VDC <50mA);

Output 1,2,3:OFF= Detected object;

Fault Output: ON= Normal Operation

Input (1-4)

Optocoupler input (common anode, each input current >4mA),

Can be used to switch monitoring areas

Monitoring area settings

Monitoring area conversion: Set the area by [input 1, 2, 3, 4];

Transmission stop: [input 1, 2, 3, 4] is ON at the same time;

Output response time

<180msec (scan speed 1rev./100msec>;

<280msec, 2 scan modes (except 100msec region conversion time)

Enter response time

Cycle: 1 scan time (100msec)

LED

Power (green): flashes on failure;

Output 1,2,3 (yellow): Lights indicate that the object was monitored

Cable length

1m

Environmental lighting

Halogen/mercury lamp: <10,000lx, Fluorescent: <6,000lx

Environmental temperature and humidity

-10 to +50 degrees C, < 85%RH (without condensation)

vibration

Dual amplitude 1.5mm 10 to 55Hz, 2 hours per axis

Impact

490m/s2, 10 Times, X, Y, Z Directions

Protection level

IP64 (IEC standard)

life

5 years (motor life)

material

Front: Polycarbonate, Rear: ABS

weight

About 500g



Application:

Applicable to the detection of unmanned vans, transfer vehicles, pedestrians and falling objects to prevent accidents.

​​
