[수입판매] EUCHNER Limit Switches N01R550-M pn 084903

(주)엠이티 M.E.T Co.,Ltd 2022. 2. 4. 16:41

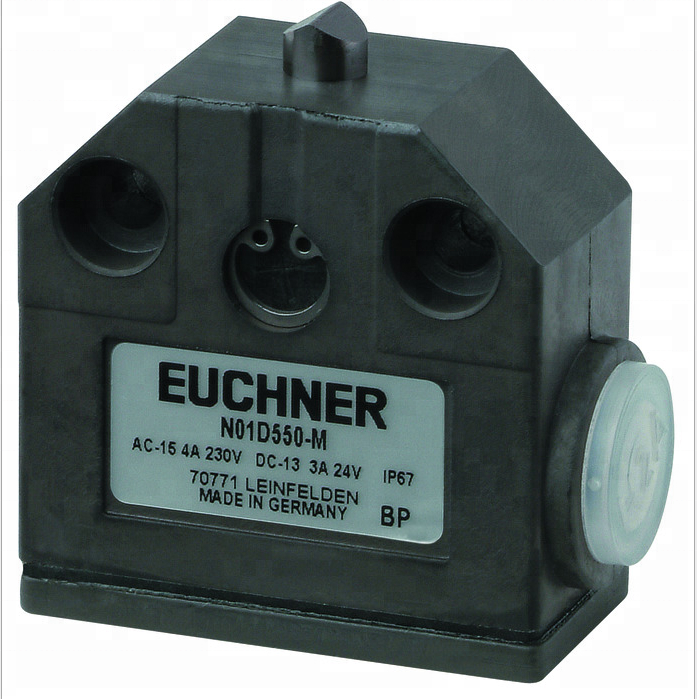

EUCHNER Limit Switches N01R550-M pn 084903 오히너 리미트 스위치 수입판매

Feature:



Housing material
Anodized die-cast alloy
Weight

Net
0,07 kg
Ambient temperature
-5 ... 80 °C
Degree of protection
IP67
Mechanical life
10 x 106
Contact material
Silver alloy, gold flashed
Switching principle
Changeover contact with snap-action function
Installation position
Any
Number of door position NC contacts
1 Changeover contact
Number of door position NO contacts
1 Changeover contact
Connection

1 x
M12 x 1.5
Approach speed

max.
0,01 ... 50 m/min
Actuating element

Plain bearing metal
Roller plunger
Actuating force
15 ... 20 N



Electrical connection ratings

rated thermal current Ith
6 A
Utilization category according to EN 60947-5-1

AC-15
2A 230V
DC-13
2A 24V
Short circuit protection according to IEC 60269-1

(Fuse)
6A gG
Rated insulation voltage Ui
250 V
Rated impulse withstand voltage Uimp
2,5 kV
Switching current

Min. at DC 24V
10 mA
Connection cross-section
0,14 ... 1 mm²

​​
