GIGAIPC 산업용 메인보드 iTXL-4500A

iTXL-4500A

Thin Mini-ITX Embedded Motherboard with Intel® Celeron® N4500 Processor, Dual Channel DDR4 memory, 4 x COM, 1 x SATA 6Gb/s, 10 x USB

​

GIGAIPC 산업용 메인보드 iTXL-4500A

기가아이피씨

산업용 메인보드, 미니 임베디드 마더보드

​

Key Features

Thin Mini-ITX form factor

Intel® Celeron® N4500 Processor

Dual Channel DDR4, 2 x SO-DIMMs

2 x GbE LAN Ports

1 x SATA 6Gb/s Port

HDMI, eDP/LVDS ports for Multiple Display

Realtek® Audio codec

1 x COM Port (RS-232/422/485 & RI/5V/12V)

3 x COM Ports (RS-232)

​

---

Specification

Form Factor	Thin Mini-ITX 170W x 170D(mm)
CPU	Intel® Celeron® N4500 Processor 10nm, 2 cores, 2 threads, up to 2.80 GHz TDP 6W
Socket	1 x FCBGA1338
Memory	2 x DDR4 SO-DIMM sockets, Max. Capacity 16 GB Support Dual channel DDR4 2933 MHz memory modules
Ethernet	2 x GbE LAN Ports (Realtek® RTL8118-CG)
Video	Integrated Graphics Processor - Intel® UHD Graphics: 2 x HDMI 2.0 port, supporting a maximum resolution of 3840x2160 @60Hz 1 x LVDS port, supporting a maximum resolution of 1920x1080 @60Hz 1 x eDP port, supporting a maximum resolution of 4096x2160 @60Hz ​ (3 independent display outputs)
Audio	Realtek® Audio Codec
Storage	1 x SATA 6Gb/s Port
Expansion Slots	1 x PCIe x1 (Gen3 x1) 1 x 2280 M.2 M-Key (SATA 6Gb/s) 1 x 2230 M.2 E-Key
Internal I/O	1 x 4-pin ATX main power connector 1 x ATX control header (For Standard ATX PSU use) 1 x SATA power connector 1 x System fan header 1 x Front panel header 1 x Front panel audio header 1 x 2W Speaker out header 6 x USB 2.0 headers 1 x COM header (RS-232/422/485 & RI/5V/12V) 3 x COM headers (RS-232) 1 x GPIO (8 bits) & SMBus header 1 x Backlight Control header 1 x AT/ATX mode select jumper

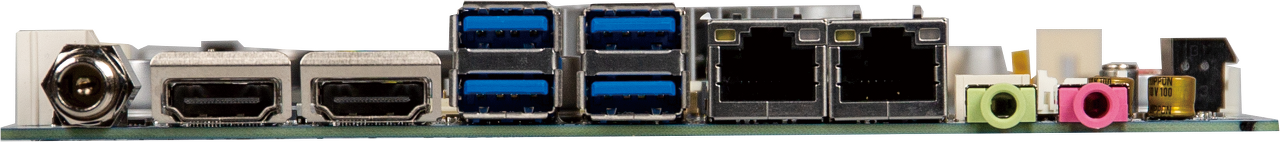

Rear I/O	2 x Audio Jacks (Line out, Mic in) 2 x HDMI 2 x RJ45 LAN Ports 4 x USB 3.2 Gen 1 1 x DC Jack (+12V~24VDC)
OS Compatibility	Windows 10 (x64)
Operating Properties	Operating temperature: 0°C to 60°C Operating humidity: 0-90% (non-condensing) Non-operating temperature: -40°C to 85°C Non-operating humidity: 0%-95% (non-condensing)
Packing Content	Carton size: 465 x 351 x 217 (mm) Packing Capacity: 10pcs ​ Single Box size: 221 x 178 x 65 (mm) Single Box weight: Approx. 0.55kg ​ Including: IO Shield x 1 (P/N: 12AIO-MJPLN0-00R) SATA Power cable x 1 (P/N: 25CRI-200B02-K1R)
Order Information	9MJPLNATMR-SI (Box Packing)

​
