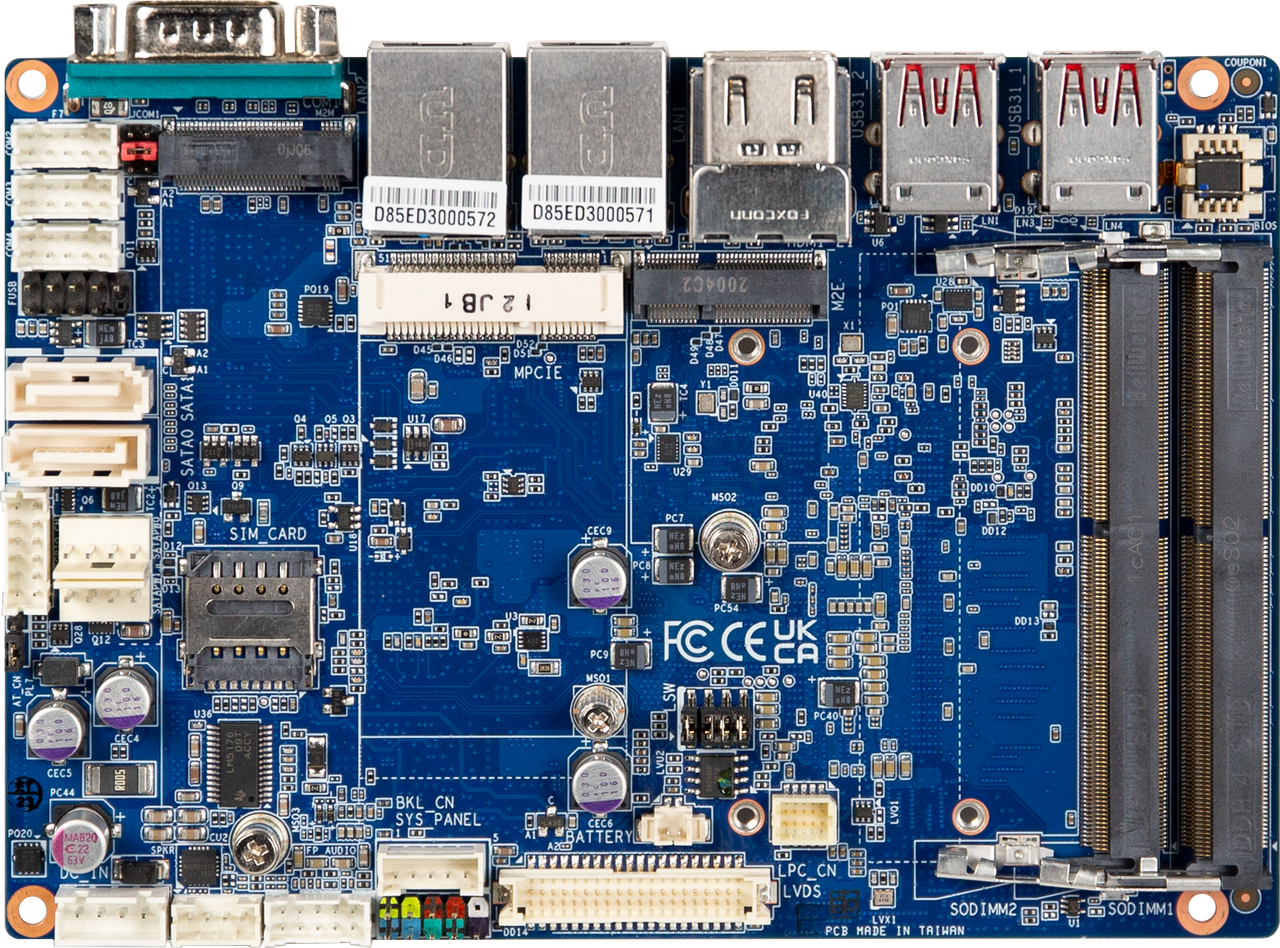

QBiP-8365A

3.5” SubCompact Board with 8th Generation Intel® Core™ i5-8365UE Processor, Dual Channel DDR4 memory, 4 x COM, 2 x SATA 6Gb/s, 4 x USB 3.2 Gen 2x1, 2 x USB 2.0

​

GIGAIPC 산업용 메인보드 QBiP-8365A

기가아이피씨

산업용 메인보드, 미니 임베디드 마더보드

​

---

Key Features

​

3.5’’ SBC

Intel® Core™ i5-8365UE Processor

Dual Channel DDR4, 2 x SO-DIMMs

2 x GbE LAN Ports

2 x SATA 6Gb/s Ports

Ultra-Fast M.2 with PCIe Gen3 x4 interface

2 x HDMI, LVDS ports for multiple display

1 x COM Port (RS-232/422/485 & RI/5V/12V)

3 x COM Ports (RS-232)

4 x USB 3.2 Gen 2x1

​

---

Specification

Form Factor	3.5" SBC 146W x 101.7D(mm)

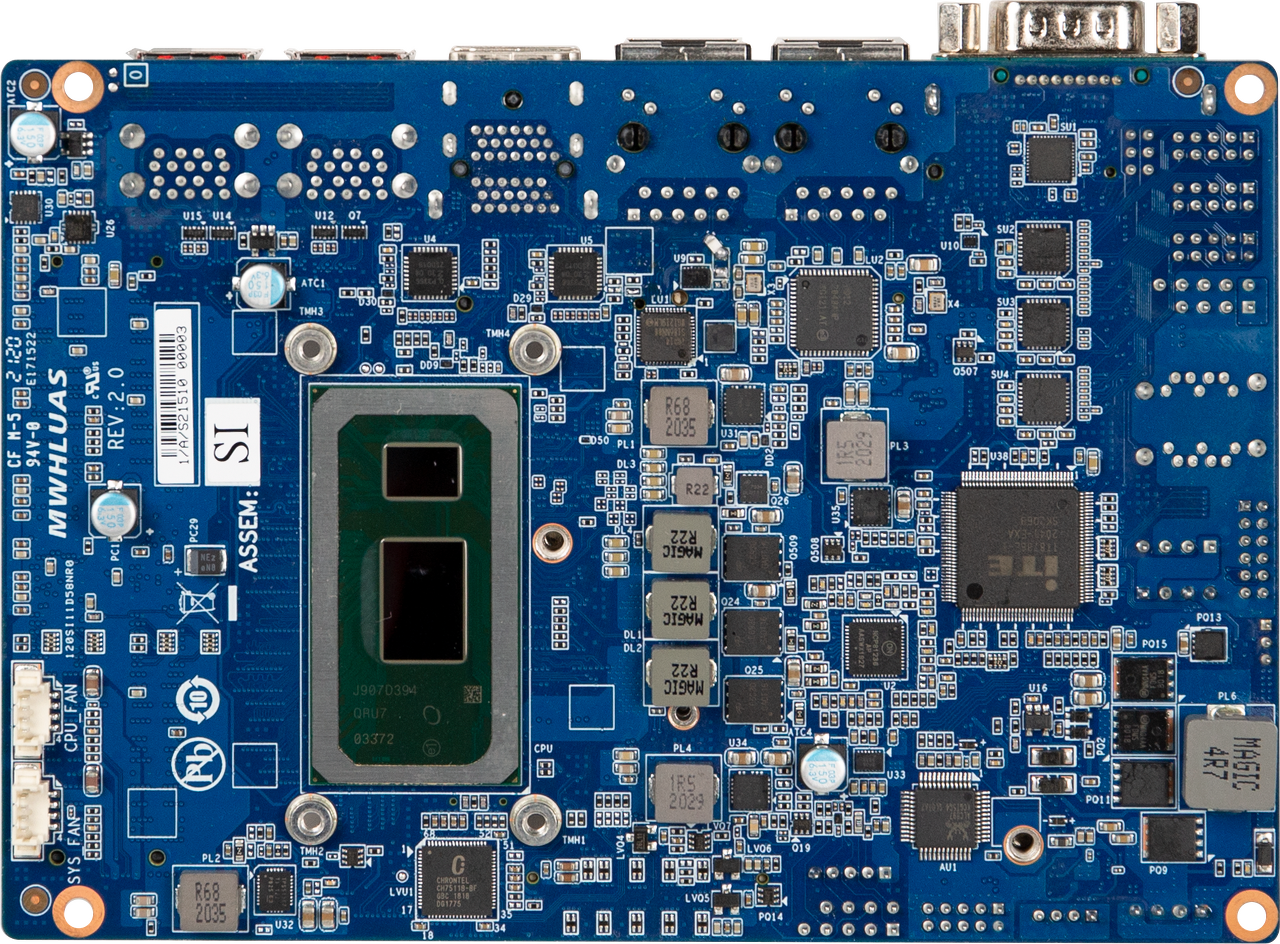

CPU	Intel® Core™ i5-8365UE Processor 14nm, 4 cores, 8 threads, up to 4.10 GHz vPro support, TDP 15W 6 MB Smart Cache
Socket	1 x FCBGA1528
Memory	2 x DDR4 SO-DIMM sockets, Max. Capacity 32 GB Support Dual Channel DDR4 2400 MHz memory modules
Ethernet	2 x GbE LAN Ports (Intel® I219LM and Intel® I211AT)
Video	Integrated Graphics Processor - Intel® UHD Graphics 620: 2 x HDMI 1.4 ports, supporting a maximum resolution of 4096x2304 @24Hz 1 x LVDS port, supporting a maximum resolution of 1920x1080 @60Hz ​ (3 independent display outputs)
Audio	Realtek® Audio Codec
Storage	2 x SATA 6Gb/s Ports (SATA RAID 0/1/5)
Expansion Slots	1 x 2280 M.2 M-Key (PCIe x4, SATA 6Gb/s) 1 x 2230 M.2 E-Key 1 x Full-size Mini PCIe with SIM slot (PCIe x1 + USB2.0) -- support 3G/4G module
Internal I/O	1 x 4-pin box power connector (DC in +9V~36VDC) (+48VDC for Optional) 2 x SATA Power headers 1 x CPU fan header 1 x System fan header 1 x Front panel header 1 x Front panel audio header 1 x 2W Speaker out header 2 x USB 2.0 headers 3 x COM headers (RS-232) 1 x Backlight Control header 1 x AT/ATX mode select jumper 1 x GPIO (8-bits) & SMBUS header

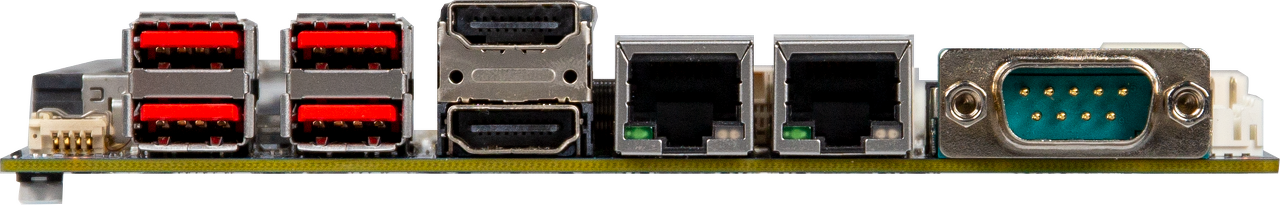

Rear I/O	1 x COM Port (RS-232/422/485 & RI/5V/12V) 2 x HDMI 2 x RJ45 LAN Ports 4 x USB 3.2 Gen 2x1
TPM	1 x TPM header
OS Compatibility	Windows 10 (x64)
Operating Properties	Operating temperature: 0°C to +60°C Operating humidity: 0-90% (non-condensing) Non-operating temperature: -40°C to +85°C Non-operating humidity: 0%-95% (non-condensing)
Packing Content	Carton size: 465 x 351 x 217 (mm) Packing Capacity: 10pcs ​ Single Box size: 221 x 178 x 65 (mm) Single Box weight: Approx. 0.4kg ​ Including: SATA power Cable x 1 (P/N: 25CRI-200B02-K1R)
Order Information	9MWHLUESMR-SI (Box Packing)
Optional Kit	Fanless Heatsink P/N: 25ST1-153108-A7R Fansink P/N: 25ST4-113100-A7R Heat spreader P/N: 25ST5-8265A0-A8R TPM 2.0 module P/N: 9CTM000NR-00 TPM Cable P/N: 25CRZ-100600-S9R
