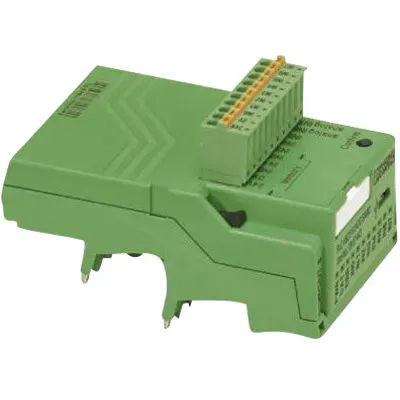

Phoenix Contact 2907446
PLC Basic Logic Module, Gen 2, 16 I/Os, Plug-in Conn to 8 Digital/Analog 24V
Overview
Phoenix Standalone Logic Module PLCs – Generation 2 with 16 I/Os:
For plug-in connection to 8 digital or analog PLC-INTERFACE terminal blocks. The PLC V8C logic modules are inserted into the bridge shafts of eight PLC-INTERFACE modules connected in series and mounted on a DIN rail. Use basic terminals for the channels you do not require in order to ensure mechanical stability. You can connect eight digital inputs to the connection (4) and can use the LOGIC+ software to configure the inputs IN6 and IN7 as well as the analog inputs (0 - 10 V). You can define a further eight signals as an input or output in accordance with the selection of PLC-INTERFACE terminals and per slot.
Features:
Push-in connection
Bluetooth adapter
Micro USB socket into Memory module
Micro USB Type B into Programming interface
Accommodates memory block
Cannot be extended
Integrated real-time clock
Standards: DIN EN 50178
