[수입판매] Advantech USB-4750-BE Isolated Digital I/O USB Module

(주)엠이티 M.E.T Co.,Ltd 2022. 3. 29. 16:12

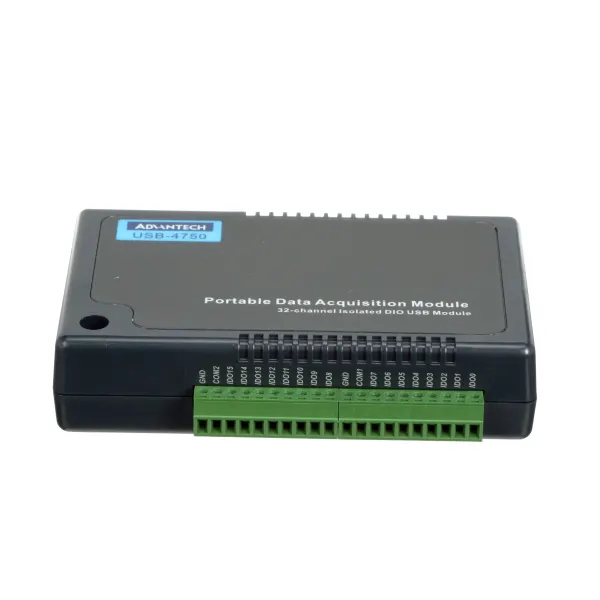

Advantech USB-4750-BE

Isolated Digital I/O USB Module, 32-Ch, 2500 VDC, Compatible USB 1.1/2.0

Overview

The USB-4700 series consists of true plug & play data acquisition devices. No more opening up your computer chassis to install boards-just plug in the module, then get the data. It's easy and efficient. USB-4750 is a 32-channel isolated digital I/O module. With isolation protection of 2,500 VDC, and dry contact support, USB-4750 is ideal for industrial applications where high-voltage protection is required. Each I/O channel of the USB-4750 corresponds to a bit in an I/O port. This makes USB-4750 very easy to program. This module also offers a counter or timer and one digital input interrupt lines to a PC. So users can then easily do configurations by software. Reliable and rugged enough for industrial applications, yet inexpensive enough for home projects, the USB-4750 is the perfect way to add measurement and control capability to any USB capable computer. The USB-4750 is fully USB plug & play and easy to use. It obtains all required power from the USB port, so no external power connection is ever required.

Features:

Compatible with USB 1.1/2.0

Bus-powered

16 isolated DI and 16 isolated DO channels

High voltage isolation on all channels (2500 VDC)

High sink current on isolated output channels (200 mA/Channels)

Supports 5 ~ 60 VDC isolated input channels

Interrupt handling capability

Timer/Counter capability

Suitable for DIN-rail mounting

One lockable USB cable for secure connection included

​​
