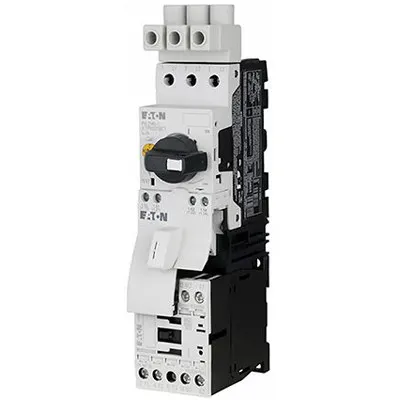

Eaton - Cutler Hammer XTFC004BBA
XT Motor Controller Combo,Type F FVNR 2.5-4A B-MMP B-Cont 1NO 110/50 120/60
Overview
Eaton XT IEC Power Control Family | XT Series - Combination Motor Controller | Power Control 580 to 2600 A:
The non-reversing and reversing enclosed Combination Motor Controllers (CMC) combine a Manual Motor Protector (MMP) with an XT Contactor to provide a complete motor protection solution by combining motor disconnect function, thermal overload protection, magnetic short circuit protection and remote control operation in one compact, assembled unit. Designed to meet International Standards, the Enclosed Control XT Line (ECX), carries CSA, UL and cUL certifications to support the IEC market. Available in both NEMA 1 and 12 enclosures, the enclosed CMC's are available with both pushbutton actuated MMPs (up to 25A) and rotary actuated MMPs (up to 63A) with voltages up to 600Vac.
Controllers Types:
XTFC and XTFR Combination Motor Controllers (CMC), UL 508 Type F Factory-Assembled Type F - Combination Motor Controller | Frame B MMP + Frame C Contactor
XTFC Non-Reversing Combination Motor Controller - Factory Assembled Manual Motor Protector + Contactor + Line Side Adapter
Combination Motor Controllers Short-Circuit Ratings for UL 508 Type F Application - XTFC and XTFR Combination Motor Controllers (CMC), UL 508 Type F
Features:
NEMA Type 1 (Conforms to IP40) - for indoor use suitable for most applications where unusual service conditions do not exist and where a measure of protection from accidental contact with enclosed equipment is required. Designed to meet tests for rod entry and rust resistance. Enclosure is sheet steel, treated to resist corrosion. Depending on the size, knock-outs are provided on the top, bottom and sometimes on the side.
NEMA Type 12 (Conforms to IP62) - for indoor use provides a degree of protection from dripping liquids (non-corrosive), falling dirt and dust. Designed to meet tests for drip, dust and rust resistance. Constructed of sheet steel. Hole plugs cover pilot device holes. There are no knockouts, hub cover plates or hubs installed. Many Eaton NEMA Type 12 enclosures are suitable for use in Class II, Division 2, Group G and Class III, Divisions 1 and 2 locations as defined in the National Electrical Code.
The XT Family line includes a large offering of power control components and accessories that cover a broad range of applications and ratings:
Three-pole contactors to 2000A
Four-pole contactors to 200A
Capacitor contactors to 680 kVAR
Mini contactors to 9A
Relays to 16A
Thermal overload relays to 630A
Electronic overload relays to 1500A
Manual motor protectors to 65A
Manual motor controllers and combination motor controllers to 65A
