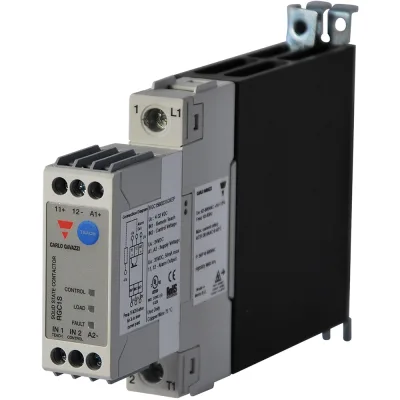

Carlo Gavazzi, Inc. RGC1S60D30GKEP
Solid-State Relay,with Monitoring,SPST,NO,30A,42-660VAC,4-32VDC,DIN,RGC Series
Overview
Carlo Gavazzi RGC Series - 1-Phase Integrated Heatsink Solid Sate Contactor Relays:
This new range of solid state contactors presents a unique opportunity to maximize efficiency in panel space and is an evolution of solid state switches for which Carlo Gavazzi is very well known. The nominal current ratings are at 40°C. The smallest width is 17.5mm and is rated at 20 AAC. Power and control teminals allow for safe looping of cables.
Features:
Product Width ranging from 17.5mm up to 70mm
Rated Operational voltage: Up to 600VAC
Rated Operational current: Up to 85AAC @ 40°C
Up to 18000A
2s for I2t and 1200Vp blocking voltage
Control voltages: 3-32 VDC, 20-275 VAC (24-190 VDC)
IP20 protection
Design according to EN/IEC60947-4-2, EN/IEC60947-4-3, EN/IEC62314, UL508, CSA 22-2 No. 14-10
Integrated voltage transient protection with varistor
RoHS compliant
Short circuit current rating: 100kA
VDE approval
Germanischer Lloyd approval
