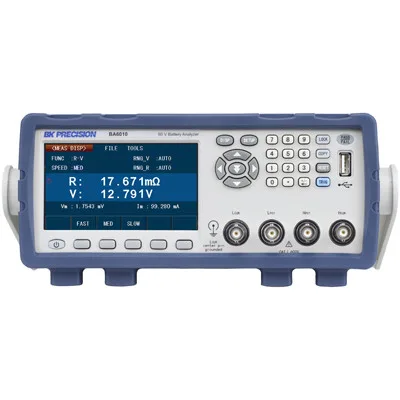

B&K Precision BA6010
Battery Analyzer 60V 4.3" Color LCD Display Rs232/USB Interface Series
Overview
B&K Precision BA6010 Series - Battery Analyzers:
The BA6010 Series battery analyzers measure voltage and resistance of modern battery technologies with high accuracy, resolution, and speed. Additionally, these instruments provide auxiliary measurement parameters inductance, capacitance, dissipation factor, impedance, quality factor, reactance, and phase angle in degrees and radians.
The BA6010 Series is suitable for characterizing battery chemistries that are responsive to a 1 kHz AC stimulus signal, including lead acid, lithium and alkaline type batteries used in consumer products, electric vehicles, power backup, security, and fire alarm systems. Model BA6011 supports voltage measurements of battery packs up to 300 V whereas the BA6010 features a 6 V
measurement range ideal for battery cell testing. The handler and remote interfaces expands the analyzer’s application to R&D and automated manufacturing environments.
Features
4.3 inch color LCD display
Trace function for graphical display of voltage and resistance with on-screen cursor measurements
4-wire kelvin test leads with monitoring of Hi / Low / High and Low drive open faults
Compare and sort using 9 bins with statistical evaluations
?% mode for quickly determining the percent difference between batteries
Pass/Fail indicator with audible tone
Fast test speed up to 50 measurements per second to increase manufacturing throughput
Trigger modes internal, manual, bus and external
100 internal and external storage locations for setup and screen save
Handler interface for easy integration with a component handler or integration with PLC
Standard RS232, USB (USBTMC and virtual COM) interfaces
