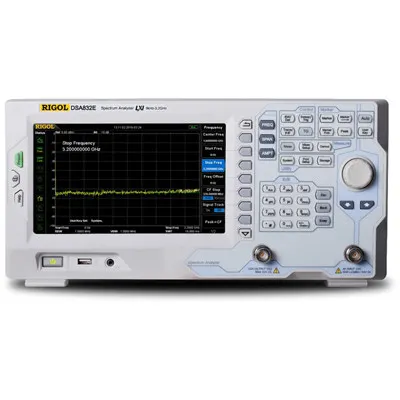

RIGOL Technologies DSA832E
Spectrum Analyzer, 9 kHz to 3.2 GHz, 8" Color TFT LCD Display, DSA1000 Series
Overview
Advantages and Characteristics:
All-Digital IF Technology
Frequency Range from 100 kHz up to 1 GHz
Min. -130 dBm Displayed Average Noise Level (Typ.)
Min. -80 dBc/Hz @ 10 kHz Offset Phase Noise
Level Measurement Uncertainty <1.5 dB
100 Hz Minimum Resolution Bandwidth
2FSK modulation signal measurement and analysis function in SSC mode
Optional EMI pre-compliance test function
Advanced Measurement Functions (Opt.)
EMI pre-compliance test function(Opt.)
EMI Filter & Quasi-Peak Detector Kit (Opt.)
VSWR Measurement Kit (Opt.)
Optional RF TX/RX Training Kit
Optional RF Accessories (Cable, Adaptor, Attenuator, Bridge ...)
Complete Connectivity: LAN (LXI), USB Host & Device, GPIB (Opt.)
8 Inch TFT LCD Display
Compact Size, Light Weight Design
Efficient ASK/FSK modulation analysis kit
EMI pre-compliance testing
VSWR and antenna resonant point testing
Use Built-in tracking source to perform economical and efficient incentive responsemeasurement
Channel power monitoring and pass/fail verification
Mass production requirements for the measurement and monitoring of spectral signals
Applicable to RF industrial region, such as R&D, lower cost manufacture industry etc
Measurement requirements for electronics fans of spectrum analyzer
Combined with the Microwave & RF education and training kit; applicable to RF education field; get to deeply understand the theories by practical operations
