[GIGAIPC] 산업용 임베디드 PC QBiX Series (10x10 Embedded Systems) QBiX-RPLA1315EH-A1
Key Features
Industrial system with Intel® Core™ i3-1315UE Processor / Lockable DC Connector/ 2 x HDMI / 1x DP 1.4 (USB type C – DP Alt. mode)/ 2 x LAN Ports
• System Size : 138W x 118D x 74.2H (mm)
• Intel® Core™ i3-1315UE Processor
• Dual Channel DDR5, 2 x SO-DIMMs
• 1 x COM Port (RS-232/422/485)
• 2 x HDMI, 1 x DP1.4 (USB type C – DP Alt. mode) for Triple Display
• 1 x 2.5GbE LAN Port
Specification
Dimension
138W x 118D x 74.2H(mm)
CPU
ntel® Core™ i3-1315UE Processor
Intel® 7, 6 cores, 2P+4E, 8 threads, up to 4.5 GHz
Chipset
SoC
Memory
2 x DDR5 SO-DIMM sockets, Max. Capacity 64 GB
Support Dual Channel DDR5 5200 MHz memory modules
Ethernet
1 x 2.5 GbE LAN Port (Intel® I226V)
1 x GbE LAN Port (Realtek RTL8111H)
Graphics Support
Integrated Graphics Processor - Intel® UHD Graphics for 13th Gen Intel® Processors:
2 x HDMI 2.0 ports, supporting a maximum resolution of 4096x2160 @60Hz
1 x DP 1.4 through USB Type C (DP Alt. mode), supporting a maximum resolution of 7680x4320 @30Hz, requires designated graphic driver
(3 independent display outputs)
Audio
Realtek® ALC269
Storage
1 x 2.5" HDD/SSD (SATA 6Gb/s)
Expansion-Slots
1 x 2280 M.2 M-Key (PCIe Gen 4x4, SATA 6Gb/s)
1 x 2230 M.2 E-Key (PCIe x1, USB 2.0)

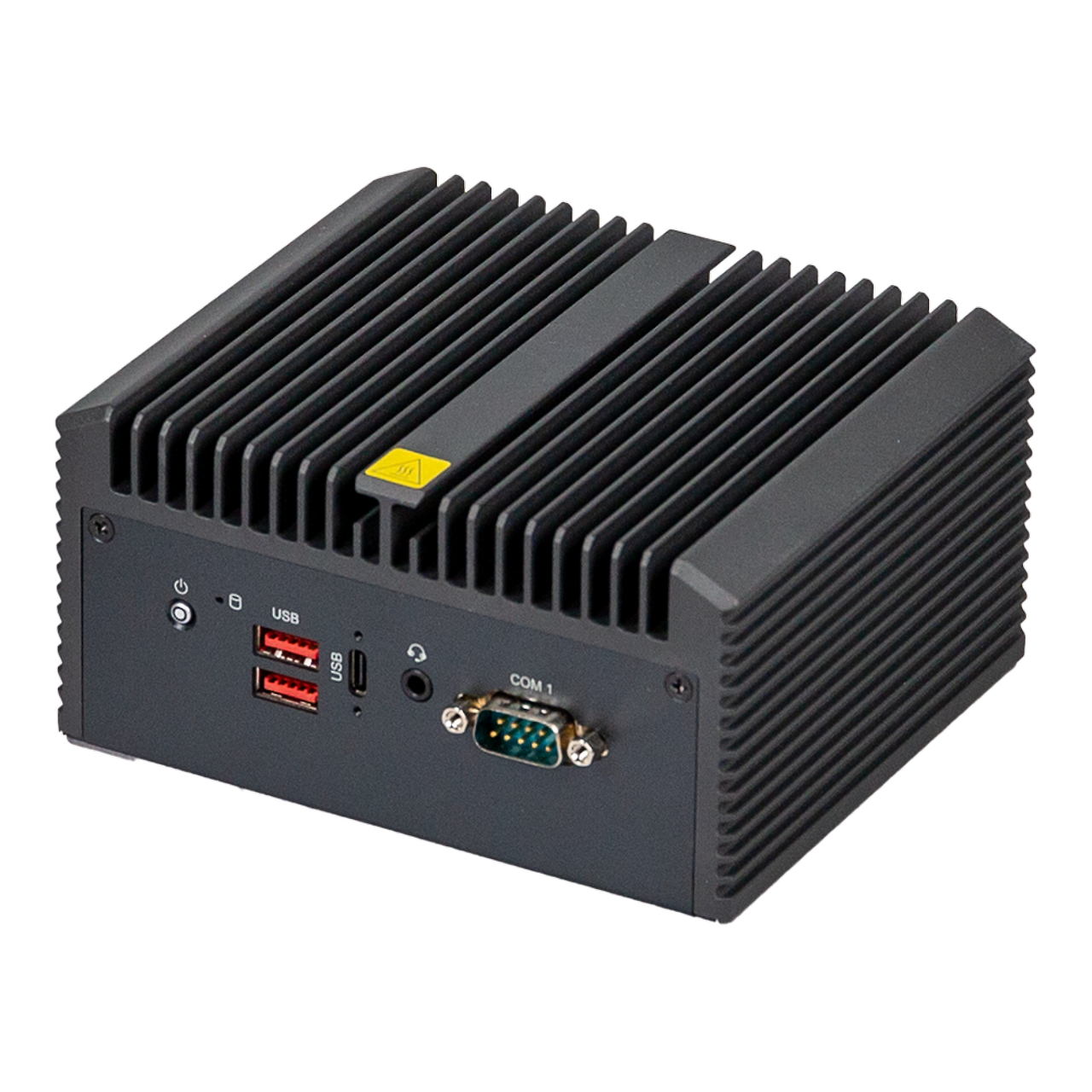

Front I/O
2 x USB 3.2 Gen 2x1
1 x USB 3.2 type C with DP 1.4b (DP Alt. mode)
1 x Power button with LED
1 x HDD LED
1 x COM Port (RS-232/422/485)
1 x Combo Audio Jack (Headphone & Headset)

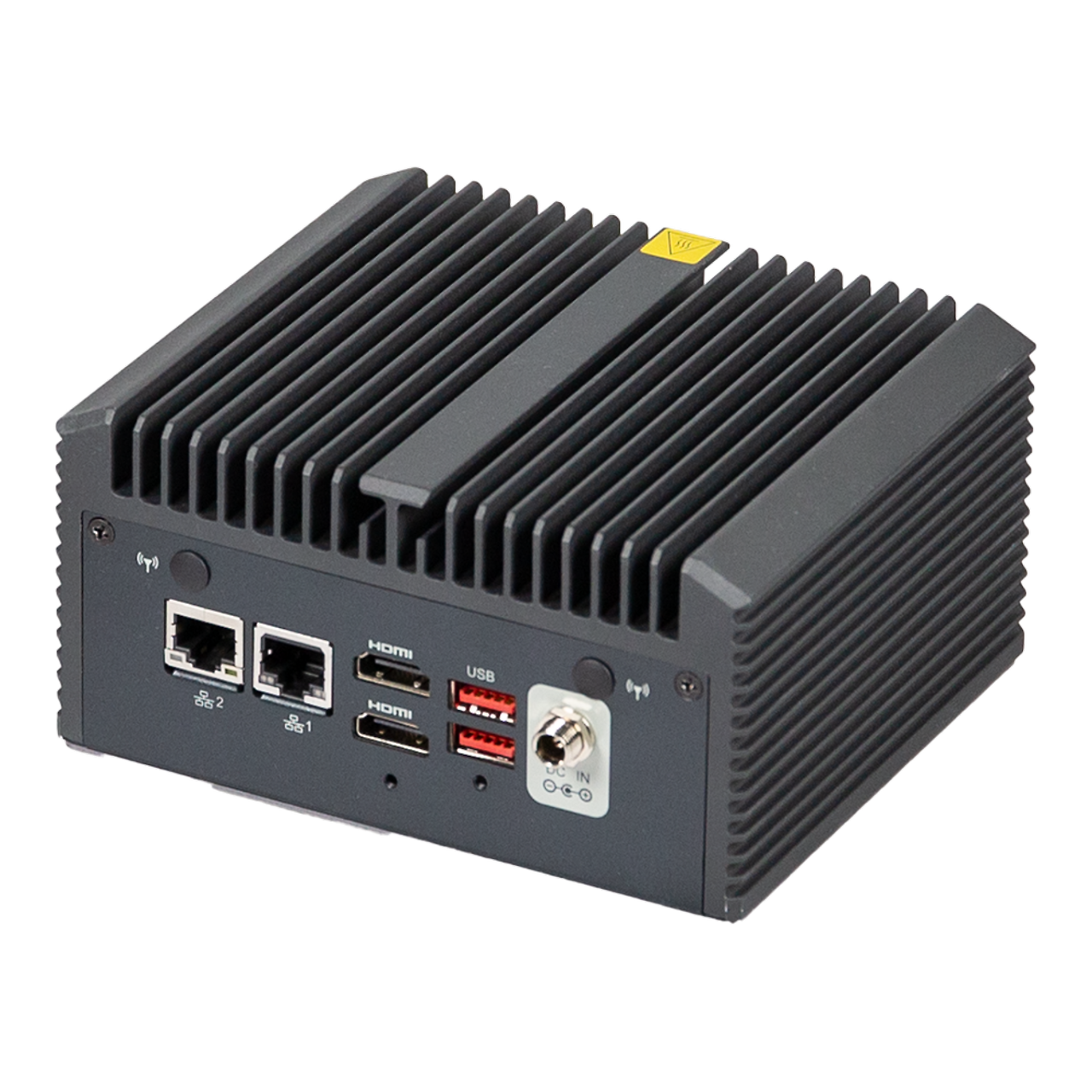

Rear l/O
2 x HDMI
2 x RJ45 LAN Ports
2 x External Antenna Holes (Optional)
2 x USB 3.2 Gen 2x1
1 x Screw type DC Jack
TPM
Onboard TPM 2.0 security chip
INFINEON SLB9672VU2.0
Power
+12V~24VDC (Adapter 19.5V/135W)
Operation Temperature
Operating temperature: 0°C to 50°C
Operating humidity: 0-90% (non-condensing)
Non-operating temperature:-40°C to 85°C
Non-operating humidity: 0%-95% (non-condensing)
Use wide temperature range memory and storage
Vibration During Operation
Operation: IEC 60068-2-64, 3 Grms, random, 5 ~ 500 Hz, 1 hr / Per Axis, With SSD
Non-operation: IEC 60068-2-6, 2 G, Sine, 10 ~ 500 Hz, 1 Oct/min, 1 hr / Per Axis
Shock During Operation
Operation: IEC 60068-2-27, 50 G, half sine, 11 ms duration, With SSD
Packing Content
Carton size: 416 x 409 x 296 (mm)
Packing Capacity: 6pcs
Single Box size: 258 x 191 x 130 (mm)
Single Box weight: Approx. 2.5kg
Including:
PSU ADP 19.5V 135W 100-240VAC x 1 (P/N: 25EP4-201352-C1S)
Power Cord : Optional (by region)
Wall Mount Bracket x 2 (P/N: 25HB2-CGAA20-CHR)
Screw I Head for 2.5" HDD M3x8L x 4 (P/N: 25KSG-130081-K1R)
Thermal PAD for DRAM2 x 1 (P/N: 25ST3-200086-T5R)
