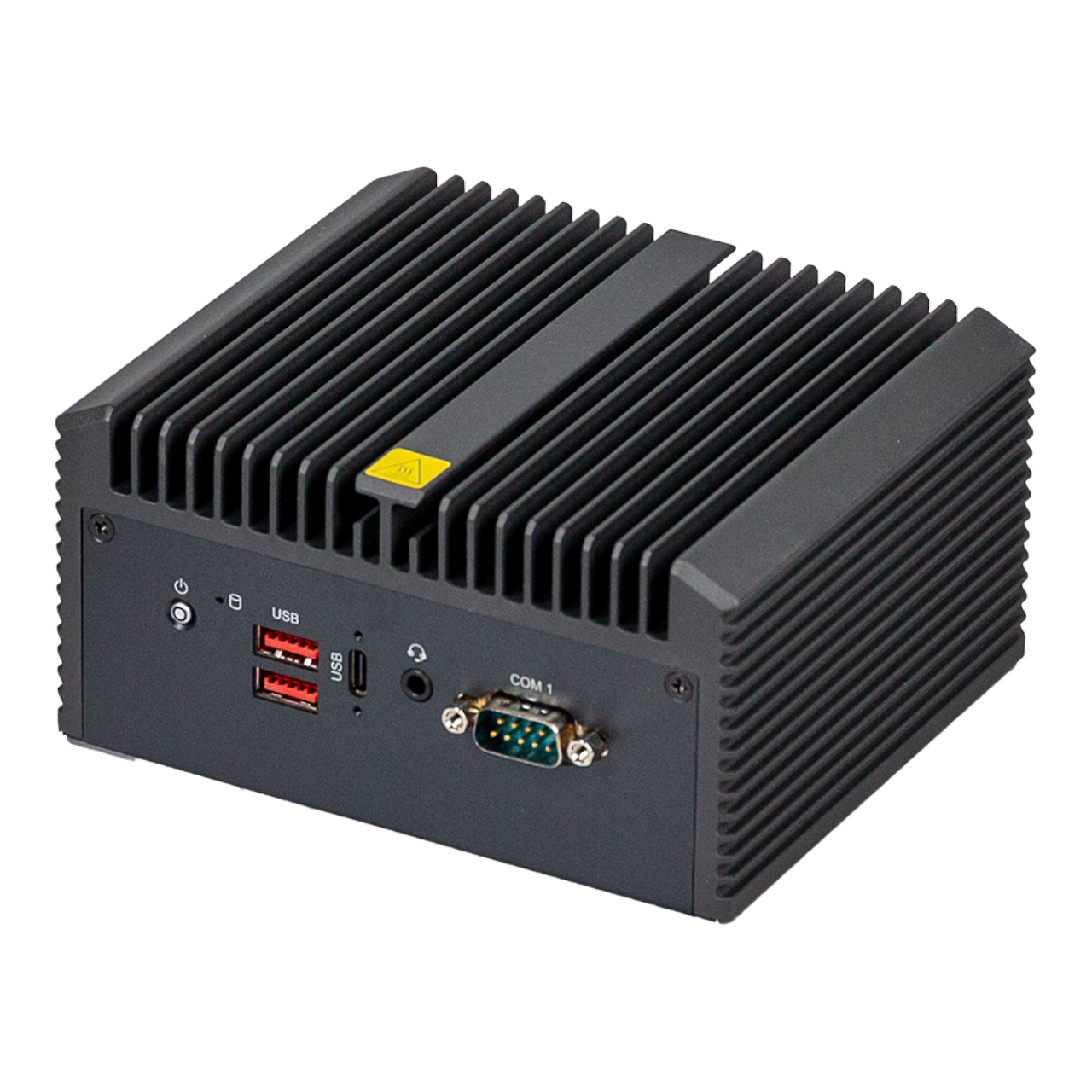

[GIGAIPC] 산업용 임베디드 PC QBiX Series (10x10 Embedded Systems) QBiX-RPLA1335H-A1

(주)엠이티 M.E.T Co.,Ltd 2024. 11. 4. 11:15

[GIGAIPC] 산업용 임베디드 PC QBiX Series (10x10 Embedded Systems) QBiX-RPLA1335H-A1

Key Features

Industrial system with Intel® Core™ i5-1335U Processor / Lockable DC Connector/ 2 x HDMI / 1x DP 1.4 (USB type C – DP Alt. mode)/ 2 x LAN Ports



• System Size : 138W x 118D x 74.2H (mm)

• Intel® Core™ i5-1335U Processor

• Dual Channel DDR5, 2 x SO-DIMMs

• 1 x COM Port (RS-232/422/485)

• 2 x HDMI, 1 x DP1.4 (USB type C – DP Alt. mode) for Triple Display

• 1 x 2.5GbE LAN Port

Specification


Dimension

138W x 118D x 74.2H(mm)


CPU

Intel® Core™ i5-1335U Processor

Intel® 7, 10 cores, 2P+8E, 12 threads, up to 4.6 GHz


Chipset

SoC


Memory

2 x DDR5 SO-DIMM sockets, Max. Capacity 64 GB

Support Dual Channel DDR5 5200 MHz memory modules


Ethernet

1 x 2.5 GbE LAN Port (Intel® I226V)

1 x GbE LAN Port (Realtek RTL8111H)


Graphics Support

Integrated Graphics Processor - Intel® Iris® Xe Graphics eligible:

2 x HDMI 2.0 ports, supporting a maximum resolution of 4096x2160 @60Hz

1 x DP 1.4 through USB Type C (DP Alt. mode), supporting a maximum resolution of 7680x4320 @30Hz, requires designated graphic driver

(3 independent display outputs)


Audio

Realtek® ALC269


Storage

1 x 2.5" HDD/SSD (SATA 6Gb/s)


Expansion-Slots

1 x 2280 M.2 M-Key (PCIe Gen 4x4, SATA 6Gb/s)

1 x 2230 M.2 E-Key (PCIe x1, USB 2.0)


Front I/O

2 x USB 3.2 Gen 2x1

1 x USB 3.2 type C with DP 1.4b (DP Alt. mode)

1 x Power button with LED

1 x HDD LED

1 x COM Port (RS-232/422/485)

1 x Combo Audio Jack (Headphone & Headset)


Rear l/O

2 x HDMI

2 x RJ45 LAN Ports

2 x External Antenna Holes (Optional)

2 x USB 3.2 Gen 2x1

1 x Screw type DC Jack


TPM

Onboard TPM 2.0 security chip

INFINEON SLB9672VU2.0


Power

+12V~24VDC (Adapter 19.5V/135W)


Operation Temperature

Operating temperature: 0°C to 50°C

Operating humidity: 0-90% (non-condensing)

Non-operating temperature:-40°C to 85°C

Non-operating humidity: 0%-95% (non-condensing)

Use wide temperature range memory and storage


Vibration During Operation

Operation: IEC 60068-2-64, 3 Grms, random, 5 ~ 500 Hz, 1 hr / Per Axis, With SSD

Non-operation: IEC 60068-2-6, 2 G, Sine, 10 ~ 500 Hz, 1 Oct/min, 1 hr / Per Axis


Shock During Operation

Operation: IEC 60068-2-27, 50 G, half sine, 11 ms duration, With SSD


Packing Content

Carton size: 416 x 409 x 296 (mm)

Packing Capacity: 6pcs

Single Box size: 258 x 191 x 130 (mm)

Single Box weight: Approx. 2.5kg

Including:

PSU ADP 19.5V 135W 100-240VAC x 1 (P/N: 25EP4-201352-C1S)

Power Cord : Optional (by region)

Wall Mount Bracket x 2 (P/N: 25HB2-CGAA20-CHR)

Screw I Head for 2.5" HDD M3x8L x 4 (P/N: 25KSG-130081-K1R)

Thermal PAD for DRAM2 x 1 (P/N: 25ST3-200086-T5R)
