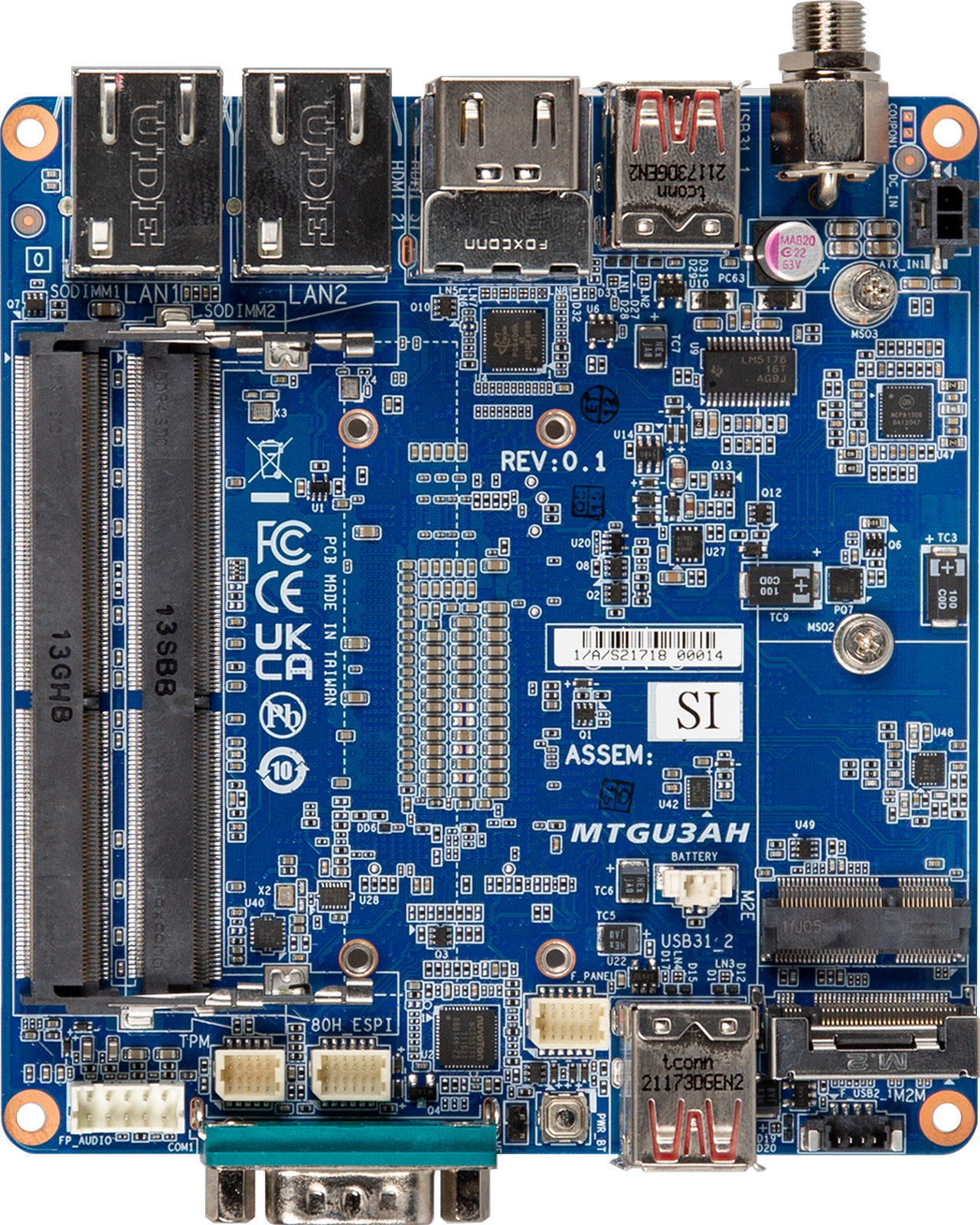

GIGAIPC 산업용 메인보드 QBi-1135G7A

(주)엠이티 M.E.T Co.,Ltd 2022. 2. 10. 17:25

QBi-1135G7A

Embedded Compact Board with Intel® Core™ i5-1135G7 Processor, Dual Channel DDR4 memory, 1 x COM, 4 x USB, 2 x HDMI

GIGAIPC 산업용 메인보드 QBi-1135G7A

기가아이피씨

산업용 메인보드, 미니 임베디드 마더보드


Key Features

Embedded IPC Motherboard

Intel® Core™ i5-1135G7 Processor

Dual Channel DDR4, 2 x SO-DIMMs

2 x GbE LAN ports

Ultra-Fast M.2 with PCIe Gen3 x4 interface

2 x HDMI ports

1 x RS-232/422/485 COM port


Specification

Form Factor
Embedded Compact Board
105W x 110D(mm)

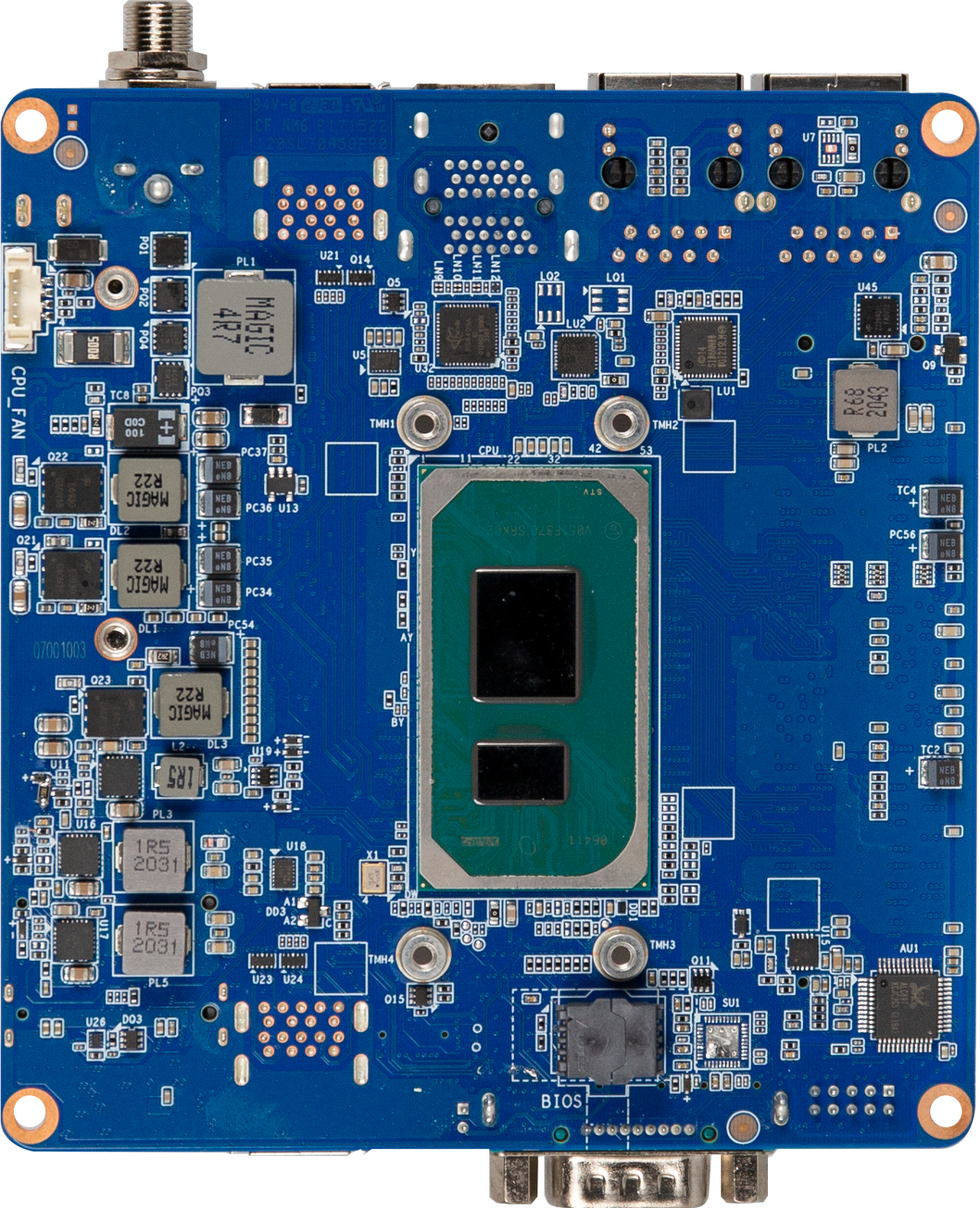

CPU
Intel® Core™ i5-1135G7 Processor
10nm SuperFin, 4 cores, 8 threads, up to 4.2 GHz
TDP 28W
Socket
1 x FCBGA1449
Memory
2 x DDR4 SO-DIMM sockets, Max. Capacity 64 GB
Support Dual Channel DDR4 3200 MHz memory modules
Ethernet
2 x GbE LAN Ports (Intel® I219V and Realtek® RTL8111HS)
Video
Integrated Graphics Processor - Intel® Iris® Xᵉ Graphics:
2 x HDMI 2.0 ports, supporting a maximum resolution of 4096x2304 @60Hz
(2 independent display outputs)
Audio
Realtek® Audio Codec
Storage
Expansion Slots
1 x 2280 M.2 M-Key (PCIe x4, SATA 6Gb/s)
1 x 2230 M.2 E-Key
Internal I/O
1 x 2-pin power connector
1 x CPU fan header
1 x Front panel header
1 x Front panel audio header
1 x USB 2.0 header

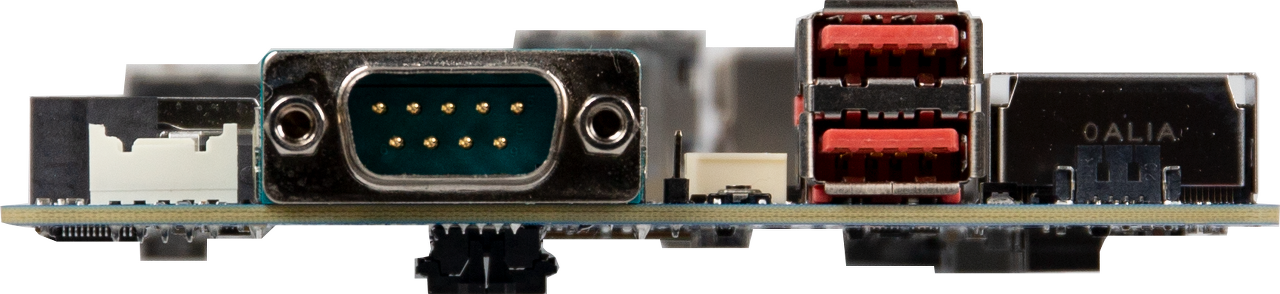

Front I/O
2 x USB 3.2 Gen 2x1
1 x Power button
1 x COM Port (RS-232/422/485)

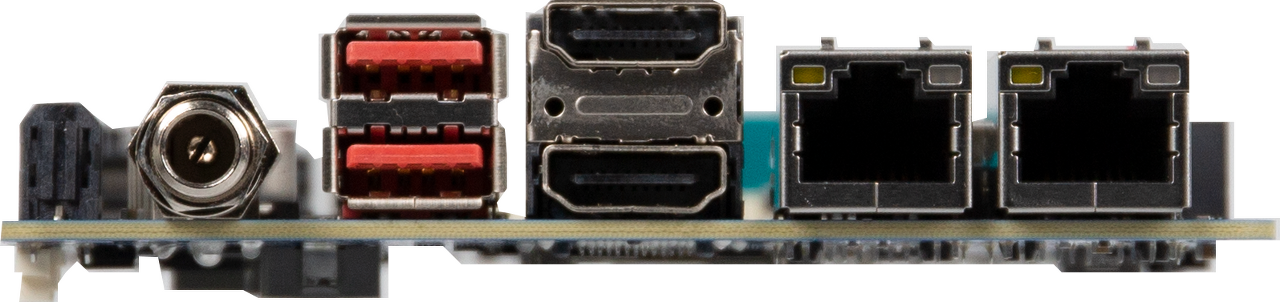

Rear I/O
2 x HDMI
2 x RJ45 LAN Ports
2 x USB 3.2 Gen 2x1
1 x Screw Type DC Jack (+9V~48VDC)
TPM
1 x TPM header
OS Compatibility
Windows 10 (x64)
Operating Properties
Operating temperature: 0°C to +60°C
Operating humidity: 0-90% (non-condensing)
Non-operating temperature: -40°C to +85°C
Non-operating humidity: 0%-95% (non-condensing)
Packing Content
Carton size: 465 x 351 x 217 (mm)
Packing Capacity: 10pcs
Order Information
9MTGU5AHMR-SI (Box packing)
Optional Kit
TPM 2.0 module P/N: 9CTM000NR-00
TPM Cable P/N: 25CRZ-100600-S9R
