uATX-H370A

Micro-ATX with 9th/8th Generation Intel® Core™ Processors, Dual channel DDR4 memory, PCIe, 4 x COM, 10 x USB, 6 x SATA 6Gb/s

GIGAIPC 산업용 메인보드 Micro ATX uATX-H370A

기가아이피씨

산업용 메인보드, 미니 임베디드 마더보드



드라이버 & 매뉴얼 다운로드



GIGAIPC CO, LTD

Checkbox uATX-H370A pro-sub-title Micro-ATX with 9th/8th Generation Intel® Core™ Processors, Dual channel DDR4 memory, PCIe, 4 x COM, 10 x USB, 6 x SATA 6Gb/s

www.gigaipc.com


Key Features

Micro ATX form factor

Supports 9th/8th Generation Intel® Core™ Processors

Intel® H370 Express Chipset

Dual Channel Non-ECC Unbuffered DDR4, 4 x DIMMs

2 x GbE LAN ports

6 x SATA 6Gb/s ports

Ultra-Fast M.2 with PCIe Gen3 x4 interface

HDMI 1.4, DVI-D, VGA ports for multiple displays

Up to 4 x PCIe Gen3 expansion slots

1 x USB 3.1 Gen2 port with 10Gb/s speed

4 x RS232 COM ports

Onboard TPM 2.0 security chip

Specification

Form Factor Micro ATX
244W x 244D(mm)
CPU Support for 9/8th Generation
Intel® Core™ i7/i5/i3 processors, Pentium® & Celeron® processors in the LGA1151 package
TDP under 65W
L3 cache varies with CPU
Socket 1 x LGA 1151
Chipset Intel® H370 Express Chipset
Memory 4 x DDR4 DIMM sockets, Max. Capacity 64GB
Support Dual channel DDR4 2666/2400 MHz memory modules
Ethernet 2 x GbE LAN ports (Intel® I219V and Realtek® RTL8111HS)
Video Integrated Graphics Processor - Intel® HD Graphics support:
1 x HDMI 1.4 port, supporting a maximum resolution of 4096x2160 @30Hz
1 x DVI-D port, supporting a maximum resolution of 1920x1200 @60Hz
1 x VGA port, supporting a maximum resolution of 1920x1200 @60Hz
* The DVI-D port does not support VGA connection by adapter
(3 independent display outputs)
Audio Realtek® Audio Codec
Storage 6 x SATA 6Gb/s ports (RAID 0/1/5/10)
Expansion Slots 1 x PCIe x16 (Gen3 x16)
1 x PCIe x4 (Gen3 x4)
2 x PCIe x1 (Gen3 x1)
1 x 2280/2260 M.2 M-Key (PCIe x4)
Internal I/O 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
2 x System fan headers
1 x Front panel header
1 x Front panel audio header
4 x USB 2.0 headers
2 x USB 3.0 headers
3 x COM headers (RS232)
1 x Clear CMOS jumper
1 x Buzzer

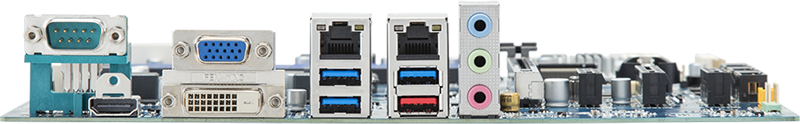

Rear I/O 3 x Audio jacks (Line in, Line out, Mic in)
1 x COM port (RS232)
1 x HDMI
1 x DVI-D
1 x VGA
2 x RJ45 LAN ports
3 x USB 3.0
1 x USB 3.1 Gen2
TPM Onboard TPM 2.0 security chip
INFINEON SLB9665VQ2.0
OS Compatibility Windows 10 (x64)
Operating Properties Operating temperature: 0°C to 60°C
Operating humidity: 0-90% (non-condensing)
Non-operating temperature: -20°C to 70°C
Non-operating humidity: 0%-95% (non-condensing)
Packing Content Bulk Packing Capacity: 20pcs
Carton size: 609 x 581 x 362(mm)
Content:
IO Shield x 1 (P/N: 12AIO-MDH112-00R)
SATA CABLE x 2 (P/N: 12CF1-2SAT1B-01R)
Order information 9MCH37AMNR-SI (Bulk Packing)
