GIGAIPC 산업용 메인보드 Mini ITX mITX-1605A

(주)엠이티 M.E.T Co.,Ltd 2021. 8. 5. 15:01

자세한 견적 문의는

TEL : 1670-8257 내선) 441,442

H.P : 010-3039-3013, 010-9831-8257

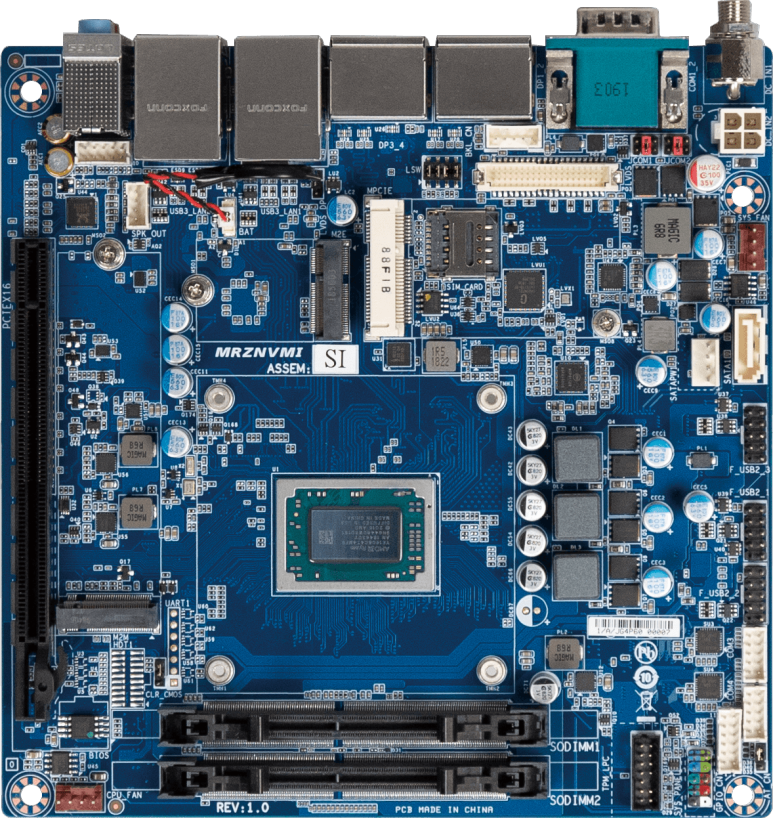

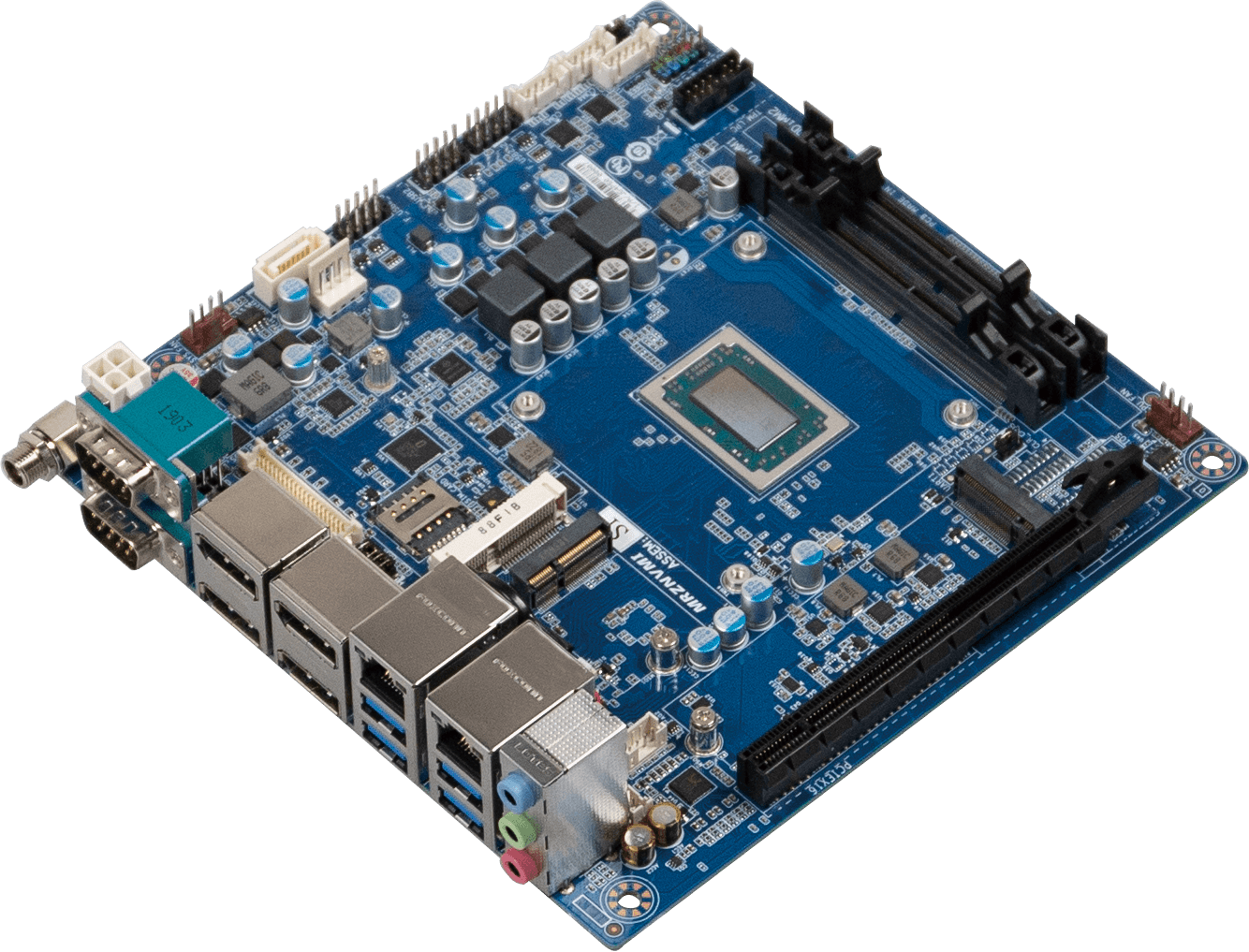

mITX-1605A

Mini-ITX Embedded Motherboard with AMD Ryzen™ V1605B Embedded Processor, Dual Channel DDR4 memory, PCIe, 4 x COM, 1 x SATA 6Gb/s, 10 x USB

GIGAIPC 산업용 메인보드 Mini ITX mITX-1605A

기가아이피씨

산업용 메인보드, 미니 임베디드 마더보드

드라이버 & 매뉴얼 다운로드



GIGAIPC CO, LTD

Checkbox mITX-1605A pro-sub-title Mini-ITX Embedded Motherboard with AMD Ryzen™ V1605B Embedded Processor, Dual Channel DDR4 memory, PCIe, 4 x COM, 1 x SATA 6Gb/s, 10 x USB

www.gigaipc.com


Key Features

Mini-ITX form factor

AMD Ryzen™ V1605B Embedded Processor

Dual Channel DDR4, 2 x SO-DIMMs

2 x GbE LAN ports

1 x SATA 6Gb/s port

4 x DP 1.4, LVDS (Switch from DP) ports for multiple display

1 x PCIe x16 (x8 signal) expansion slot

2 x RS-232/422/485, 5V/12V COM ports

2 x RS-232 COM ports


Specification

Form Factor Mini-ITX
170W x 170D(mm)
CPU AMD Ryzen™ V1605B Embedded Processor
14nm, 4 cores, 8 threads, 2.0 GHz, up to 3.6GHz
TDP 25W
Socket 1 x FP5 BGA
Memory 2 x DDR4 SO-DIMM sockets, Max. Capacity 32GB
Support Dual channel DDR4 2400 MHz memory modules
Ethernet 2 x GbE LAN ports (Realtek® RTL8111HS)
Video Integrated Graphics Processor - AMD Radeon™ Vega 8 Graphics:
4 x DP ports, supporting a maximum resolution of 4096x2160 @60Hz
1 x LVDS port, supporting a maximum resolution of 1080P (switch from DP)
(4 independent display outputs)
Audio Realtek® Audio Codec
Storage 1 x SATA 6Gb/s port
Expansion Slots 1 x PCIe x16 (Gen3 x8)
1 x 2280 M.2 M-Key (SATA 6Gb/s)
1 x 2230 M.2 E-Key
1 x Full-size Mini PCIe with SIM slot
Internal I/O 1 x 4-pin ATX power connector
1 x SATA power connectors
1 x CPU fan header
1 x System fan header
1 x Front panel header
1 x Front panel audio header
1 x 2W Speaker out header
6 x USB 2.0 headers
2 x COM headers (RS-232)
1 x GPIO (8 bits) & SMBUS header
1 x Backlight Control header
1 x LVDS/ DP Jumper
1 x AT/ATX mode jumper
1 x Clear CMOS jumper

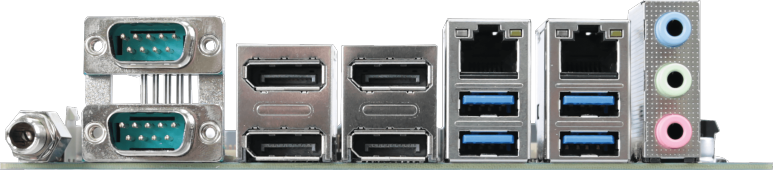

Rear I/O 3 x Audio jacks (Line in, Line out, Mic in)
2 x COM ports (RS-232/422/485 and RI/5V/12V)
4 x Display Ports
2 x RJ45 LAN ports
4 x USB 3.0
1 x DC Jack (+12V~24VDC)
TPM 1 x TPM Header
OS Compatibility Windows 10 (x64)
Operating Properties Operating temperature: 0°C to 60°C
Operating humidity: 0-90% (non-condensing)
Non-operating temperature: -40°C to 85°C
Non-operating humidity: 0%-95% (non-condensing)
Packaging Content Capacity: 10pcs
Carton size: 556 x 476 x 244(mm)
Content:
IO Shield x 1 (P/N: 12AIO-MRZNV0-00R)
SATA Power cable x 1 (P/N: 25CRI-200B02-K1R)
FANSINK x 1 (P/N: 12SF2-01A077-00R)
Order Information Fan version: 9MRZNVMIMR-SI (Box packing)
Optional Kit TPM 2.0 module: 9CTM000NR-00
