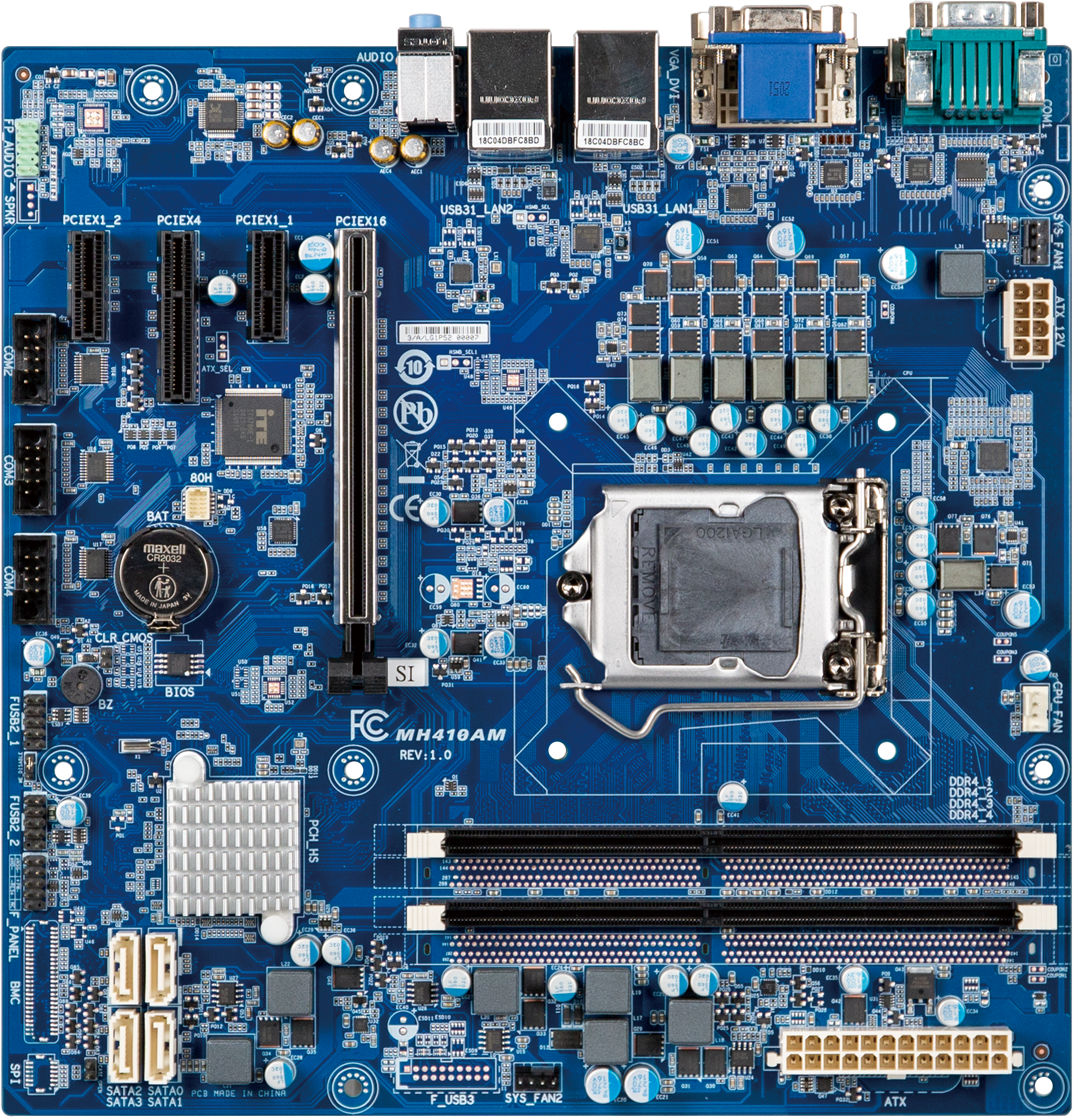

uATX-H410A
Micro-ATX with 10th Generation Intel® Core™ Processors, Dual channel DDR4 memory, PCIe, 4 x COM, 8 x USB, 4 x SATA 6Gb/s
GIGAIPC 산업용 메인보드 Micro ATX uATX-H410A (Intel H410 Chipset)
기가아이피씨
산업용 메인보드, 미니 임베디드 마더보드
Key Features
Micro ATX form factor
Supports 10th Generation Intel® Core™ Processors
Intel® H410 Express Chipset
Dual Channel DDR4, 2 x DIMMs
2 x GbE LAN ports
4 x SATA 6Gb/s ports
Ultra-Fast M.2 with PCIe Gen3 x4 interface
HDMI 1.4, DVI-D, VGA ports for multiple displays
Up to 4 x PCIe Gen3 expansion slots
4 x USB 3.0 ports
4 x RS232 COM ports
Onboard TPM 2.0 security chip
Specification
Form Factor | Micro ATX 244W x 244D(mm) |
CPU | Support for 10th Generation Intel® Core™ i7/i5/i3 processors, Pentium® & Celeron® processors in the LGA1200 package TDP under 65W |
Socket | 1 x LGA 1200 |
Chipset | Intel® H410 Express Chipset |
Memory | 2 x DDR4 DIMM sockets, Max. Capacity 64GB Support Dual channel DDR4 2933/2666 MHz memory modules |
Ethernet | 2 x GbE LAN ports (Intel® I219V and Realtek® RTL8111HS) |
Video | Integrated Graphics Processor - Intel® HD Graphics support: 1 x HDMI 1.4 port, supporting a maximum resolution of 4096x2160 @30Hz 1 x DVI-D port, supporting a maximum resolution of 1920x1200 @60Hz 1 x VGA port, supporting a maximum resolution of 1920x1200 @60Hz (2 independent display outputs) |
Audio | Realtek® Audio Codec |
Storage | 4 x SATA 6Gb/s ports |
Expansion Slots | 1 x PCIe x16 (Gen3 x16) - CPU 1 x PCIe x4 (Gen3 x2) 2 x PCIe x1 (Gen3 x1) |
Internal I/O | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x System fan headers 1 x Front panel header 1 x Front panel audio header 4 x USB 2.0 headers 3 x COM headers (RS232) 1 x Clear CMOS jumper 1 x Buzzer |

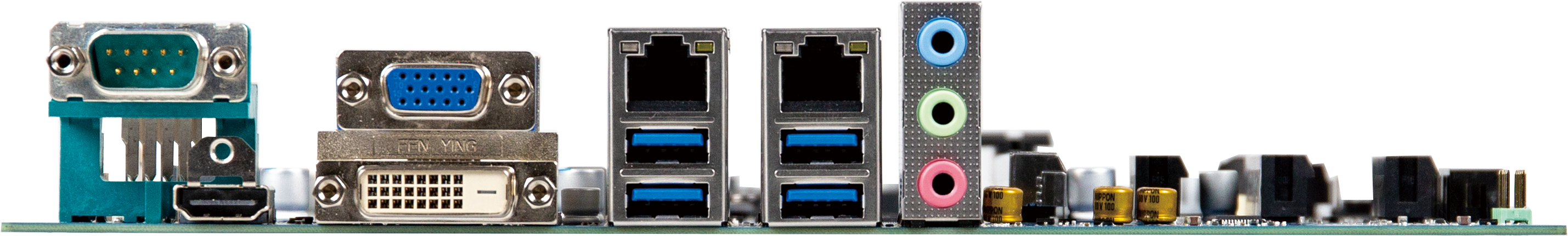

Rear I/O | 3 x Audio jacks (Line in, Line out, Mic in) 1 x COM port (RS232) 1 x HDMI 1 x DVI-D 1 x VGA 2 x RJ45 LAN ports 4 x USB 3.0 |
TPM | Onboard TPM 2.0 security chip INFINEON SLB9670VQ2.0 |
OS Compatibility | Windows 10 (x64) Linux |
Operating Properties | Operating temperature: 0°C to 60°C Operating humidity: 0-90% (non-condensing) Non-operating temperature: -20°C to 70°C Non-operating humidity: 0%-95% (non-condensing) |
Packing Content | Bulk Packing Capacity: 20pcs Carton size: 609 x 581 x 362(mm) Content: IO Shield x 1 (P/N: 12AIO-MH4100-00R) CABLE SATA Power x 2 (P/N: 25CRI-300B01-K1R) |
Order information | 9MH410AMNR-SI (Bulk packing) |
