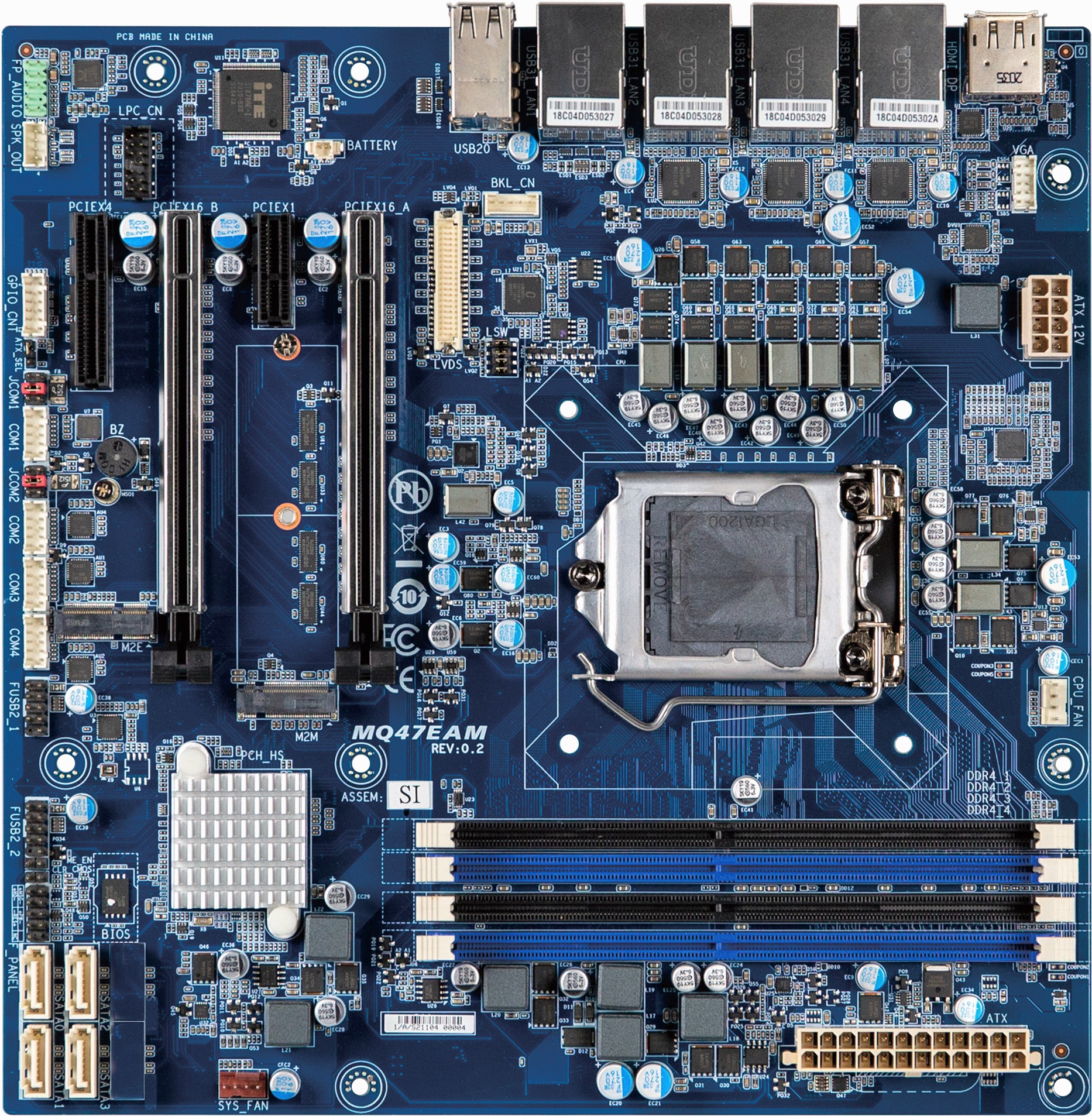

uATX-Q47EA
Micro-ATX with 10th Generation Intel® Core™ Processors, Dual channel DDR4 memory, PCIe, 4 x COM, 16 x USB, 4 x SATA 6Gb/s
GIGAIPC 산업용 메인보드 Micro ATX uATX-Q47EA (Intel Q470E Chipset)
기가아이피씨
산업용 메인보드, 미니 임베디드 마더보드
Key Features
Micro ATX form factor
Supports 10th Generation Intel® Core™ Processors
Intel® Q470E Express Chipset
Dual Channel Non-ECC Unbuffered DDR4, 4 x DIMMs
4 x GbE LAN ports
4 x SATA 6Gb/s ports
Ultra-Fast M.2 with PCIe Gen3 x4 interface
HDMI 1.4, Display port, VGA, LVDS for multiple displays
Realtek® Audio Codec
Up to 4 x PCIe Gen3 expansion slots
16 x USB ports
1 x COM headers (RS-232/422/485 & RI/5V/12V)
1 x COM headers (RS-232 & RI/5V/12V)
2 x COM headers (RS-232)
Specification
Form Factor | Micro ATX 244W x 244D(mm) |
CPU | Support for 10th Generation Intel® Core™ i9/i7/i5/i3, Pentium® & Celeron® processors in the LGA1200 package TDP under 95W |
Socket | 1 x LGA 1200 |
CHIPSET | Intel® Q470E Express Chipset |
MEMORY | 4 x DDR4 DIMM sockets, Max. Capacity 128GB Support Dual channel DDR4 2933 MHz memory modules |
ETHERNET | 4 x GbE LAN ports (Intel® i219LM and Intel® i211AT) |
VIDEO | Integrated Graphics Processor - Intel® HD Graphics support: 1 x HDMI 1.4 port, supporting a maximum resolution of 4096x2160 @30Hz 1 x Display port, supporting a maximum resolution of 4096x2160 @60Hz 1 x VGA port, supporting a maximum resolution of 1920x1200 @60Hz 1 x LVDS port, supporting a maximum resolution of 1920x1080 @60Hz (3 independent display outputs) |
AUDIO | Realtek® Audio Codec |
STORAGE | 4 x SATA 6Gb/s ports (RAID 0/1/5/10) |
EXPANSION SLOTS | 2 x PCIe Gen3 x8 (or only 1 x PCIe Gen3 x16 on PCIe x16_A slot as optional) 1 x PCIe x4 (Gen3 x4) 1 x PCIe x1 (Gen3 x1) 1 x 2230 M.2 E-Key (PCIe x1 + USB2.0) 1 x 2280/2242 M.2 M-Key (PCIe x4, SATA 6Gb/s) |
INTERNAL I/O | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 4 x SATA 6Gb/s connectors 1 x CPU fan header 1 x System fan header 1 x Front panel header 1 x Front panel audio header 4 x USB 2.0 headers 1 x COM header (RS232/422/485 & RI/5V/12V) 1 x COM header (RS232 & RI/5V/12V) 2 x COM headers (RS232) 1 x VGA header 1 x Backlight header 1 x LVDS header 1 x AT/ATX mode select jumper 1 x GPIO (8 bits) & SMBUS header 1 x Buzzer 1 x Clear CMOS jumper |

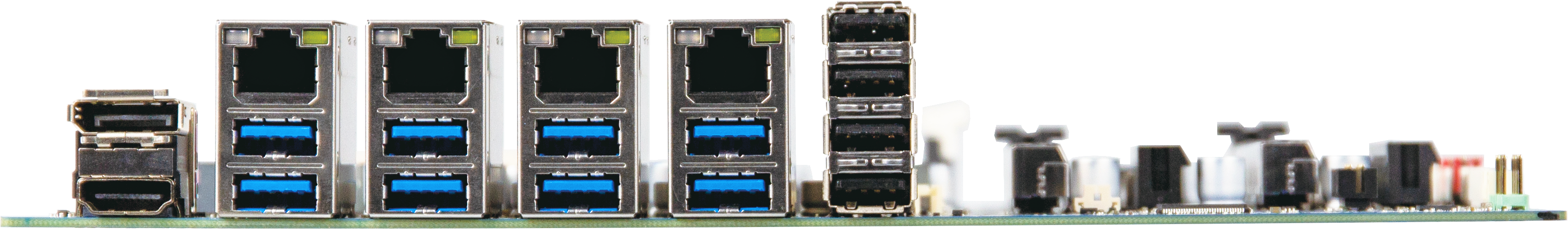

REAR I/O | 1 x HDMI 1 x Display Port 4 x RJ45 LAN ports 8 x USB3.0 4 x USB2.0 |
TPM | 1 x TPM header |
OS COMPATIBILITY | Windows 10 (x64) |
OPERATING PROPERTIES | Operating temperature: 0°C to 60°C Operating humidity: 0-90% (non-condensing) Non-operating temperature: -40°C to 85°C Non-operating humidity: 0%-95% (non-condensing) |
PACKING CONTENT | Bulk Packing Capacity: 20pcs Carton size: 609 x 581 x 362(mm) Content: IO Shield x 1 (P/N: 12AIO-MQ47EA-00R) CABLE SATA x 2 (P/N: 12CF1-2SAT1B-01R) |
ORDER INFORMATION | 9MQ47EAMNR-SI (Bulk packing) |
