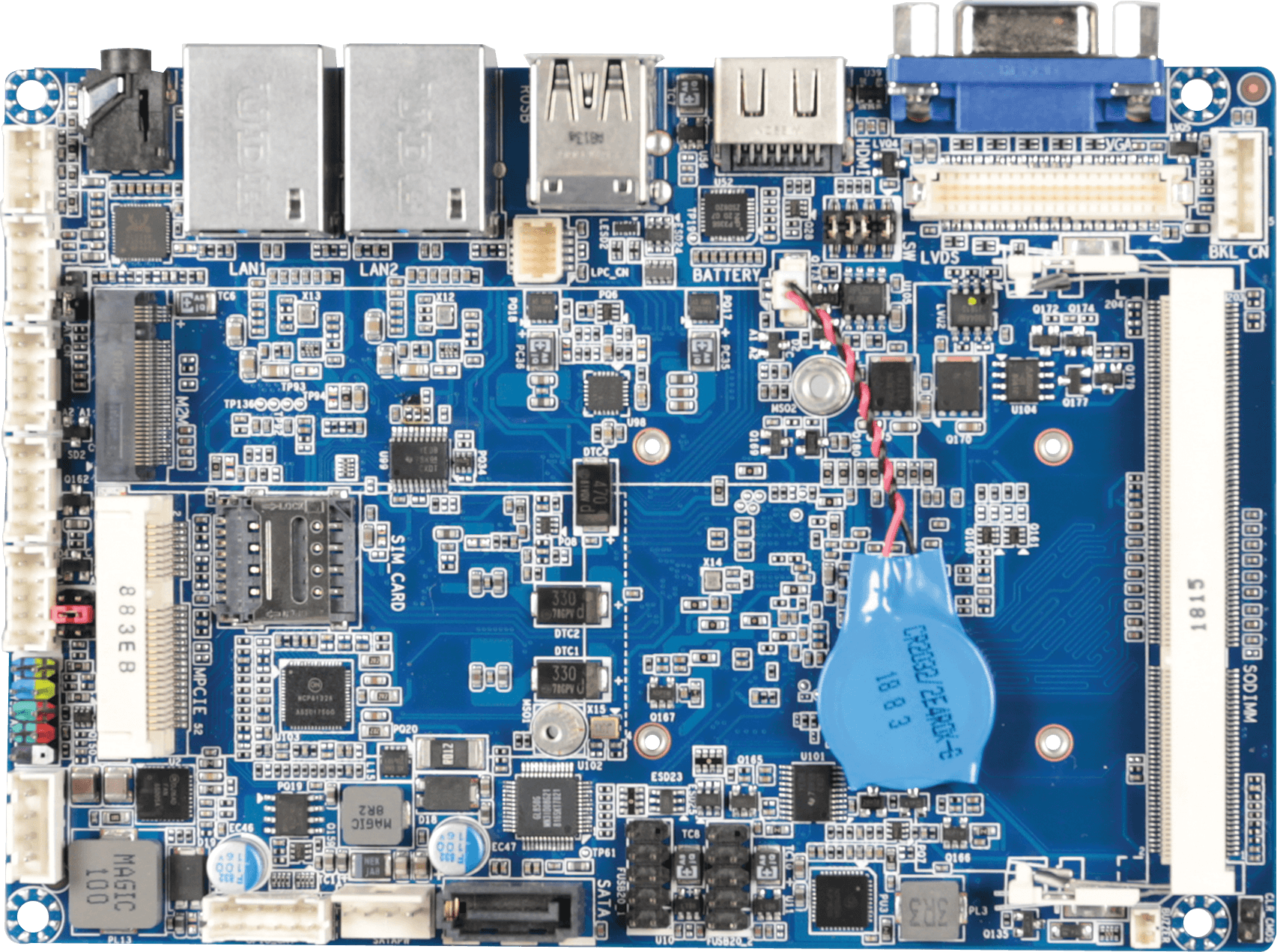

QBiP-1900A
3.5” SubCompact Embedded Motherboard with Intel® J1900 Processor, Single Channel DDR3L memory, 4 x COM, 1 x SATA 3Gb/s, 6 x USB
GIGAIPC 산업용 메인보드 3.5 inch SBC QBiP-1900A
기가아이피씨
산업용 메인보드, 미니 임베디드 마더보드
Key Features
3.5’’ SBC
Intel® Celeron® Processor J1900
Single Channel DDR3L, 1 x SO-DIMM
2 x GbE LAN ports
1 x SATA 3Gb/s port
M.2 with SATA 3Gb/s
HDMI, VGA, LVDS ports for multiple display
1 x RS232/422/485/5V/12V/RI COM port
2 x RS232 COM ports
1 x RS232/422/485 COM port
Specification
Form Factor | 3.5'' SBC 146W x 101.7D(mm) |
CPU | Intel® Celeron® J1900 Processor 22nm, 4 cores, 4 threads, up to 2.42 GHz TDP 10W |
Socket | 1 x FCBGA1170 |
Memory | 1 x DDR3L SO-DIMM sockets, Max. Capacity 8GB Support Single channel DDR3L 1333 MHz memory module |
Ethernet | 2 x GbE LAN ports (Intel® i211AT) |
Video | Integrated Graphics Processor -Intel® HD Graphics 500: 1 x HDMI 1.4 port, supporting a maximum resolution of 3840x2160 @30Hz 1 x VGA port, supporting a maximum resolution of 2560x1600 @60Hz (with compatible displays) 1 x LVDS port, supporting a maximum resolution of 1920x1080 @60Hz (2 independent display outputs) |
Audio | Realtek® Audio Codec |
Storage | 1 x SATA 3Gb/s port |
Expansion Slots | 1 x 2280 M.2 M-Key (SATA 3Gb/s) 1 x Full-size Mini PCIe with SIM slot (PCIe x1 + USB2.0) -- support 3G/4G module |
Internal I/O | 1 x 4 pin box power connector (DC in +9V~36VDC) (+48VDC optional) 1 x SATA Power header 1 x System fan header 1 x Front panel header 1 x Front panel audio header 1 x 2W Speaker out header 4 x USB 2.0 headers 2 x COM headers (RS-232) 1 x COM header (RS-422/485/232 and RI/5V/12V) 1 x COM header (RS-422/485/232) 1 x Backlight control header 1 x AT/ATX mode select jumper 1 x GPIO (8-bits) & SMBUS header 1 x Buzzer |

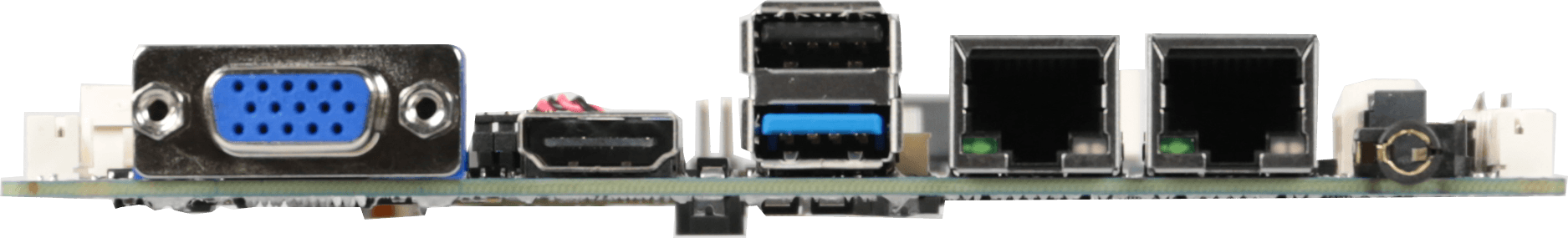

Rear I/O | 1 x Headphone jack 1 x HDMI 1 x VGA 2 x RJ45 LAN ports 1 x USB 2.0 1 x USB 3.0 |
TPM | 1 x TPM Header |
OS Compatibility | Windows 10 (x64) |
Operating Properties | Operating temperature: 0°C to 60°C Operating humidity: 0-90% (non-condensing) Non-operating temperature: -40°C to +85°C Non-operating humidity: 0%-95% (non-condensing) |
Packing Content | Capacity: 10pcs Carton size: 465 x 351 x 217(mm) Content: SATA Power cable x 1 (P/N: 25CRI-200B02-K1R) |
Order information | 9MBAYTASMR-SI (Box Packing) |
Optional Kit | Fanless Heatsink P/N: 25ST1-153107-A7R Heat spreader P/N: 25ST5-CBAB00-A8R TPM 2.0 module P/N: 9CTM000NR-00 TPM Cable P/N: 25CRZ-100600-S9R |
