QBiP-1605A
3.5” SubCompact Embedded Motherboard with AMD Ryzen™ V1605B Embedded Processor, Dual Channel DDR4 memory, 4 x COM, 1 x SATA 6Gb/s, 6 x USB
GIGAIPC 산업용 메인보드 3.5 inch SBC QBiP-1605A
기가아이피씨
산업용 메인보드, 미니 임베디드 마더보드
Key Features
3.5’’ SBC
AMD Ryzen™ V1605B Embedded Processor
Dual Channel DDR4, 2 x SO-DIMMs
2 x GbE LAN ports
1 x SATA 6Gb/s port
M.2 with SATA 6Gb/s or PCIe X4
4 x HDMI 2.0, eDP ports for multiple display
2 x RS-232/422/485 and 5V/12V/RI COM ports
2 x RS-232 COM ports
Specification
Form Factor | 3.5'' SBC 146W x 101.7D(mm) |
CPU | AMD Ryzen™ V1605B Embedded Processor 14nm, 4 cores, 8 threads, 2.0 GHz, up to 3.6 GHz TDP 25W 2MB of shared L2 plus 4MB of shared L3 total |
Socket | 1 x FP5 type 1 BGA |
Memory | 2 x DDR4 SO-DIMM sockets, Max. Capacity 32GB Support Dual channel DDR4 2400 MHz memory modules |
Ethernet | 2 x GbE LAN ports (Realtek RTL8111HS) |
Video | Integrated Graphics Processor - AMD Radeon™ Vega 8 Graphics: 4 x HDMI 2.0 ports, supporting a maximum resolution of 4096x2160 @ 60Hz 1 x eDP port, supporting a maximum resolution of 3840x2160 @60Hz (Share from HDMI) (4 independent display outputs) |
Audio | Realtek® Audio Codec |
Storage | 1 x SATA 6Gb/s port |
Expansion Slots | 1 x 2280 M.2 M-Key (PCIe x4, SATA 6Gb/s) 1 x 2230 M.2 E-Key 1 x Full-size Mini PCIe with SIM slot (PCIe x1 + USB2.0) -- support 3G module |
Internal I/O | 1 x 4 pin box power connector (DC in +9V~36VDC) 1 x SATA Power header 1 x CPU fan header 1 x System fan header 1 x Front panel header 1 x Front panel audio header 1 x 2W Speaker out header 4 x USB 2.0 headers 2 x COM headers (RS-232) 2 x COM headers (RS-422/485/232 and RI/5V/12V) 1 x Backlight control header 1 x AT/ATX mode select jumper 1 x eDP/HDMI jumper 1 x GPIO (8-bits) & SMBUS header 1 x Buzzer |

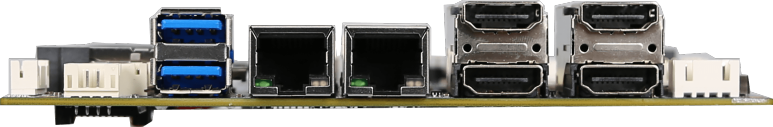

Rear I/O | 4 x HDMI 2 x RJ45 LAN ports 2 x USB 3.0 |
TPM | Onboard TPM 2.0 security chip INFINEON SLB9665TT2.0 |
OS Compatibility | Windows 10 (x64) |
Operating Properties | Operating temperature: 0°C to 60°C Operating humidity: 0-90% (non-condensing) Non-operating temperature: -40°C to +85°C Non-operating humidity: 0%-95% (non-condensing) |
Packaging Content | Capacity: 10pcs Carton size: 465 x 351 x 217(mm) Content: SATA Power cable x 1 (P/N: 25CRI-200B02-K1R) |
Order Information | 9MRZNVMSNR-SI (Bulk Packing) 9MRZNVMSMR-SI (Box Packing) |
Optional Kit | Fanless Heatsink P/N:25ST1-113104-A7R Fansink P/N: 12SF2-01A073-00R Heat spreader P/N: 25ST5-QP1600-A8R |
