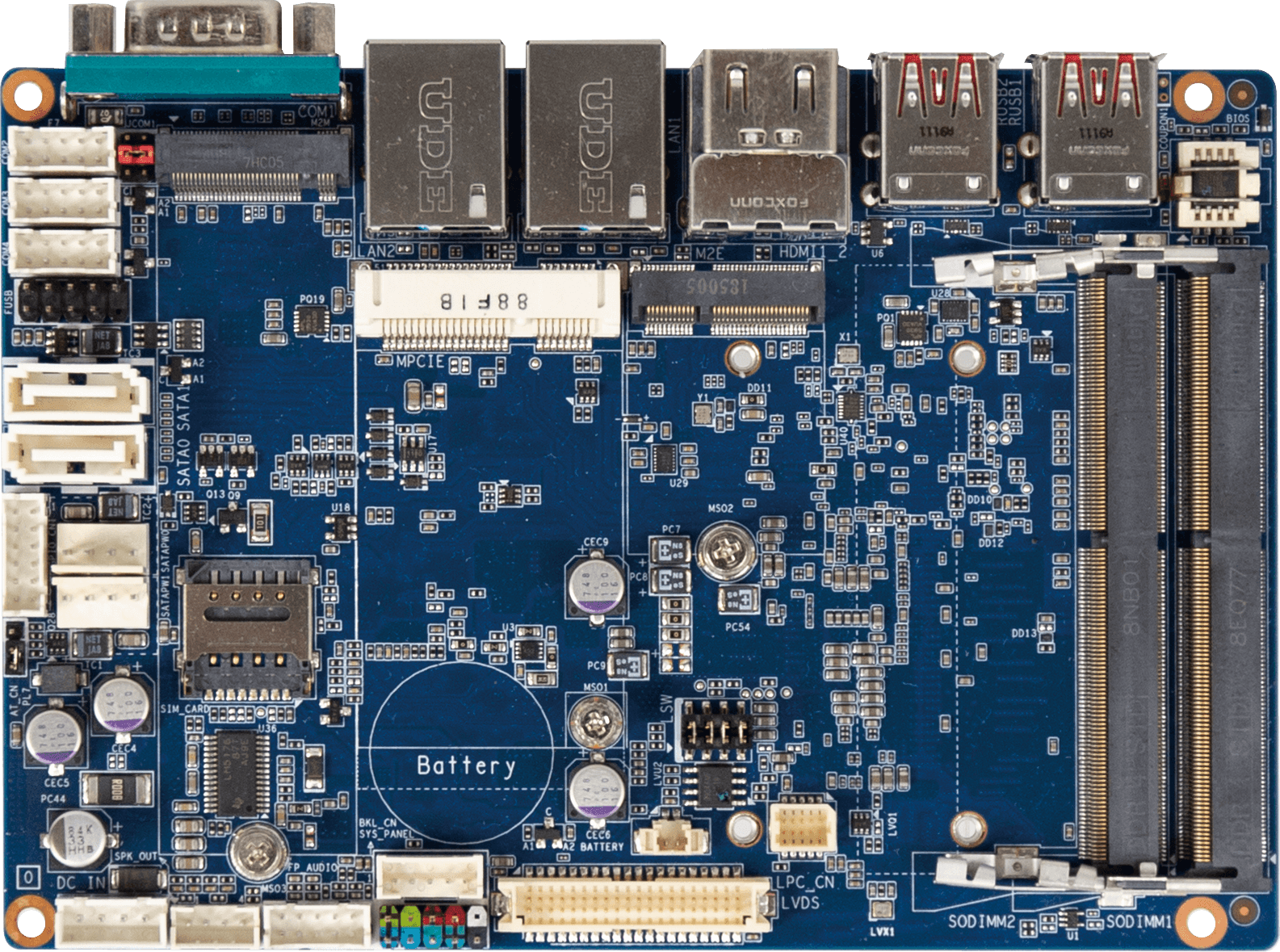

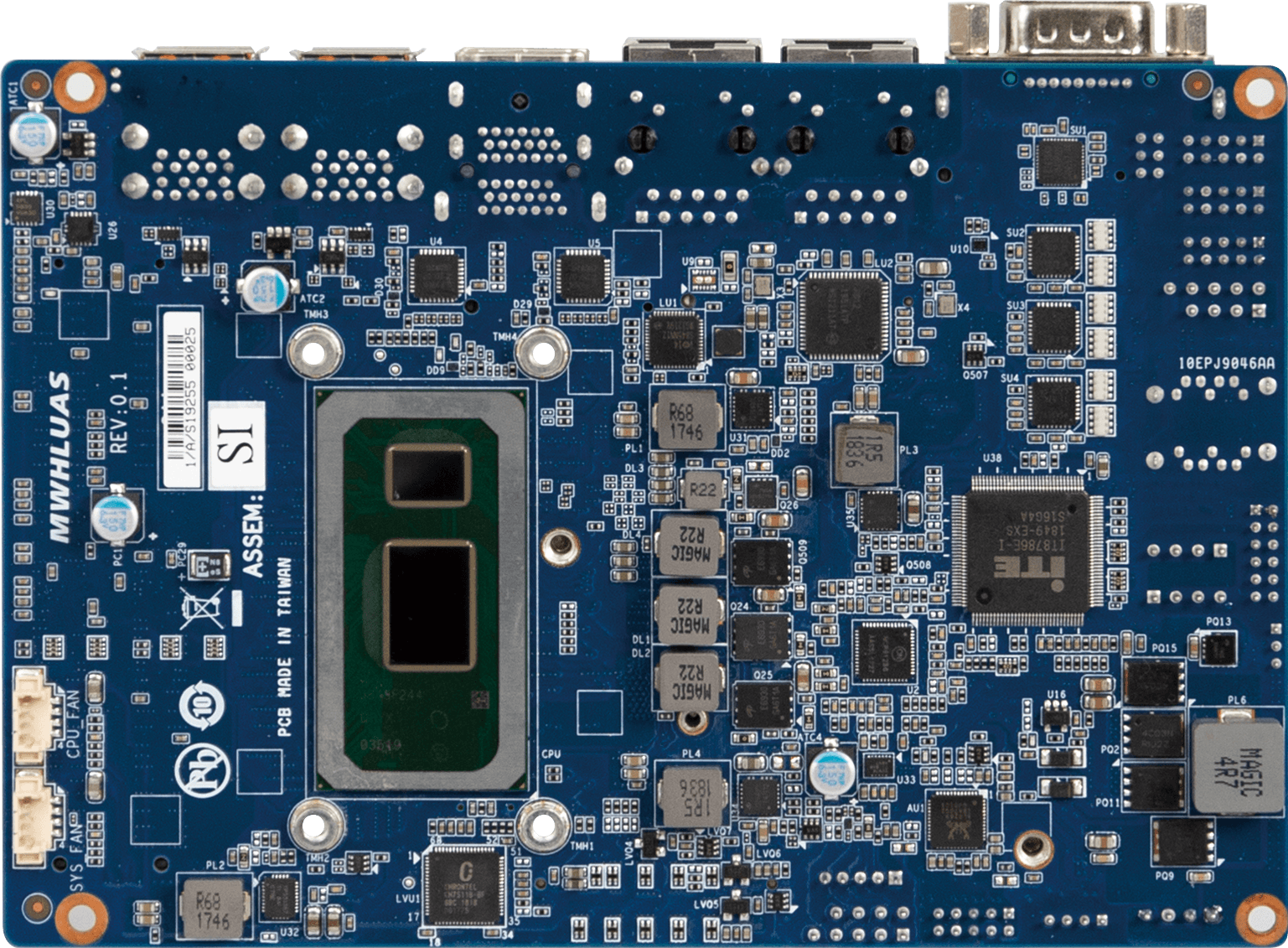

GIGAIPC 산업용 메인보드 3.5 inch SBC QBiP-8565A

(주)엠이티 M.E.T Co.,Ltd 2021. 8. 12. 13:53



자세한 견적 문의는

TEL : 1670-8257 내선) 441,442

H.P : 010-3039-3013, 010-9831-8257

QBiP-8565A

3.5” SubCompact Board with 8th Generation Intel® Core™ i7-8565U Processor, Dual Channel DDR4 memory, 4 x COM, 2 x SATA 6Gb/s, 4 x USB 3.1 Gen2, 2 x USB 2.0

GIGAIPC 산업용 메인보드 3.5 inch SBC QBiP-8565A

기가아이피씨

산업용 메인보드, 미니 임베디드 마더보드

드라이버 & 매뉴얼 다운로드


Key Features

3.5’’ SBC

Intel® Core™ i7-8565U Processor

Dual Channel DDR4, 2 x SO-DIMMs

2 x GbE LAN ports

2 x SATA 6Gb/s ports

Ultra-Fast M.2 with PCIe Gen3 x4 interface

2 x HDMI, LVDS ports for multiple display

1 x RS-232/422/485 and 5V/12V/RI COM port

3 x RS-232 COM ports

4 x USB 3.1 Gen 2


Specification

Form Factor 3.5" SBC
146W x 101.7D(mm)
CPU Intel® Core™ i7-8565U Processor
14nm, 4 cores, 8 threads, up to 4.6 GHz
TDP 15W
8 MB SmartCache
Socket 1 x FCBGA 1528
Memory 2 x DDR4 SO-DIMM sockets, Max. Capacity 32 GB
Support Dual Channel DDR4 2400 MHz memory modules
Ethernet 2 x GbE LAN ports (Intel® i219V and Intel® i211AT)
Video Integrated Graphics Processor - Intel® UHD Graphics 620:
2 x HDMI 1.4 ports, supporting a maximum resolution of 4096x2304 @24Hz
1 x LVDS port, supporting a maximum resolution of 1920x1080 @60Hz
(3 independent display outputs)
Audio Realtek® Audio Codec
Storage 2 x SATA 6Gb/s ports (SATA RAID 0/1/5)
Expansion Slots 1 x 2280 M.2 M-Key (PCIe x4, SATA 6Gb/s)
1 x 2230 M.2 E-Key
1 x Full-size Mini PCIe with SIM slot (PCIe x1 + USB2.0) -- support 3G/4G module
Internal I/O 1 x 4 pin box power connector (DC in +9V~36VDC) (+48VDC for optional)
2 x SATA Power headers
1 x CPU fan header
1 x System fan header
1 x Front panel header
1 x Front panel audio header
1 x 2W Speaker out header
2 x USB 2.0 headers
3 x COM headers (RS-232)
1 x Backlight control header
1 x AT/ATX mode select jumper
1 x GPIO (8-bits) & SMBUS header

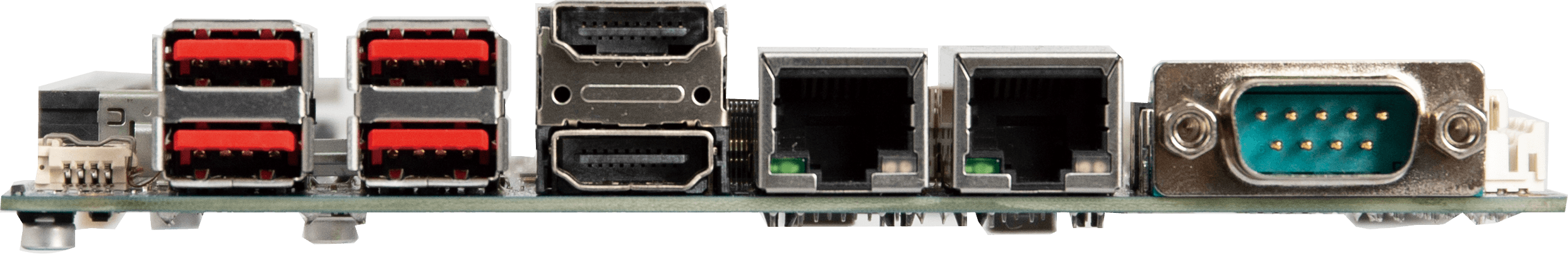

Rear I/O 1 x COM port (RS-232/422/485 and RI/5V/12V)
2 x HDMI
2 x RJ45 LAN ports
4 x USB 3.1 Gen2
TPM 1 x TPM Header
OS Compatibility Windows 10 (x64)
Operating Properties Operating temperature: 0°C to +60°C
Operating humidity: 0-90% (non-condensing)
Non-operating temperature: -40°C to +85°C
Non-operating humidity: 0%-95% (non-condensing)
Packing Content Capacity: 10pcs
Carton size: 465 x 351 x 217(mm)
Content:
SATA Power cable x 1 (P/N: 25CRI-200B02-K1R)
Order information 9MWHLUASMR-SI (Box Packing)
Optional Kit Fanless Heatsink P/N: 25ST1-153108-A7R
Fansink P/N: 25ST4-113100-A7R
Heat spreader P/N: 25ST5-8265A0-A8R
TPM 2.0 module P/N: 9CTM000NR-00
TPM Cable P/N: 25CRZ-100600-S9R
