QBiX-Pro-BYTA1900H-A1
Industrial system with Intel® Celeron® J1900 Processor
GIGAIPC 산업용 임베디드 QBiX-Pro-BYTA1900H-A1
기가아이피씨
헬스케어, 키오스크, 임베디드, IoT 시스템, 산업자동화
Key Features
System Size: 178W x 125D x 52.7H(mm)
Intel® Celeron® Processor J1900
Dual Channel DDR3L, 1 x SO-DIMM
HDMI, D-sub for Dual display
2 x GbE LAN ports
Application
Embedded & Industrial Applications
IoT System
Factory Automation
KIOSK / POS
Healthcare
Specification
QBiX Pro Series of GIGAIPC embedded system is implemented with GIGAIPC QBi Pro (3.5" SubCompact Board). Its fan-less design reduces the risk of fan failure and maintainance efforts. The aluminium heatsink and ruggedized chassis enhanced the ability to work in harsh environment. The Compact size can easily be designed in any applications in limited space, such as factory automation, industrial controller / Surveillance systems and IoT Gateway. Furthermore, it can be a computing solution dedicated to thin client, POS, KIOSK for commercial market.
QBiX-Pro-BYTA1900H-A1 is powered by Intel® Celeron® 1900 processor, to provide "low power but high performance" for energy-saving requests. It is designed with full range 9-36V DC power inputs for operating temperature of 0°C~50°C and rich I/O interfaces and expansion M.2 slots to fit in various applications. The system supports 2.5" HDD/SSD (SATA 3Gb/s) with vibration resistance of 5 Grms/5~500Hz and shock endurance to 50G/11ms, to meet industrial standard.
Dimension | 178W x 125D x 52.7H(mm) |
CPU | Intel® Celeron® Processor J1900 22nm, 4 cores, 4 threads, up to 2.42 GHz TDP 10W 2MB L2 cache |
Chipset | SoC |
Memory | 1 x DDR3L SO-DIMM sockets, Max. Capacity 8 GB Support Single Channel DDR3L 1333MHz memory modules |
Ethernet | 2 x GbE LAN ports (Intel® i211AT) |
Graphic support | Integrated Graphics Processor - Intel® HD Graphics 500: 1 x HDMI 1.4 port, supporting a maximum resolution of 3840x2160 @30Hz 1 x VGA port, supporting a maximum resolution of 2560x1600 @60Hz (with compatible displays) (2 independent display outputs) |
Audio | Realtek® Audio Codec |
Storage | 1 x 2.5” HDD/SSD (SATA 3Gb/s) |
Expansion Slots | 1 x 2280 M.2 M-Key (SATA 3Gb/s) 1 x Full-size Mini PCIe with SIM slot (PCIe x1 + USB2.0) -- support 3G/4G module |

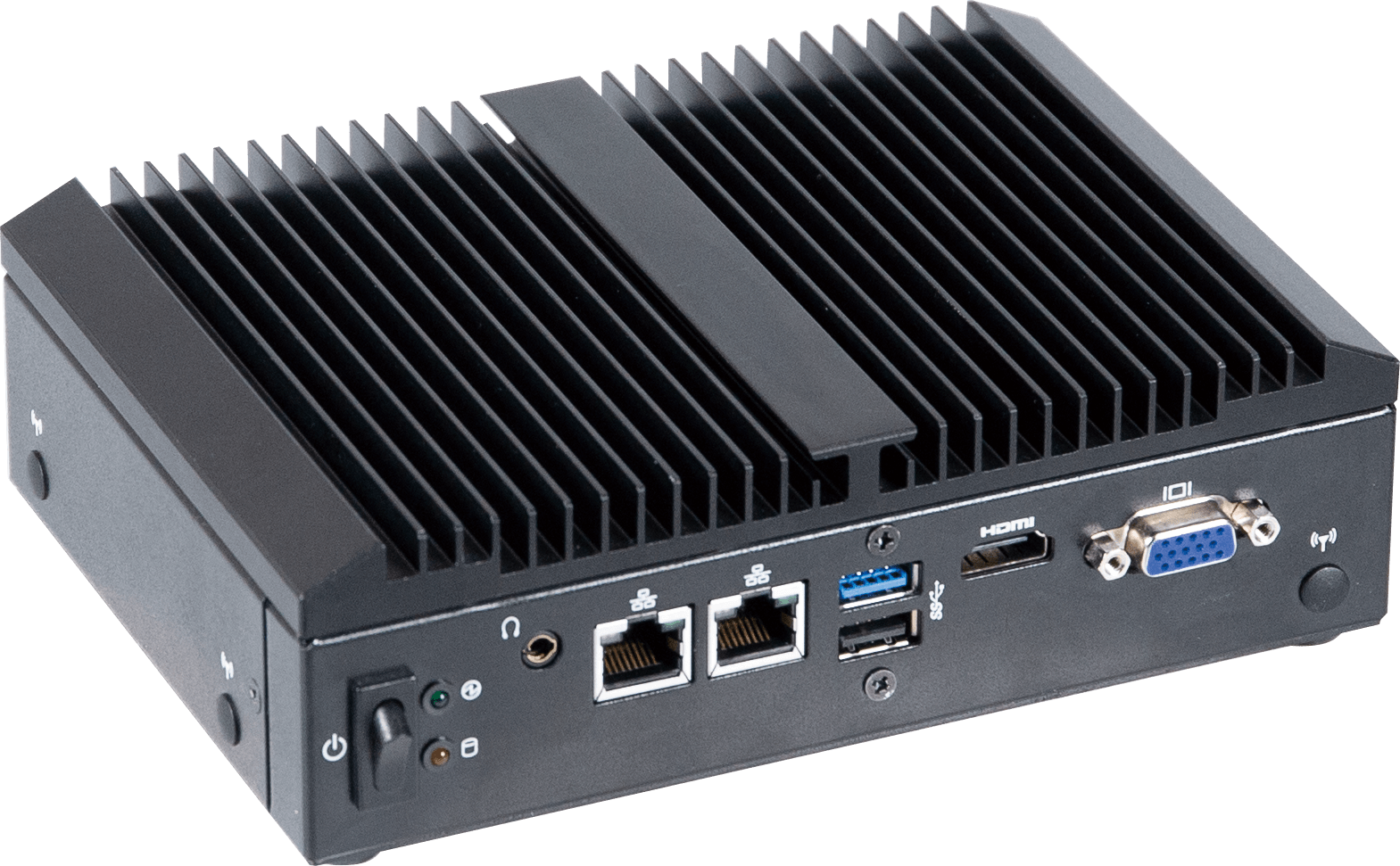

Front I/O | 2 x RJ45 LAN ports 1 x USB 3.0 1 x USB 2.0 1 x HDMI 1 x VGA 1 x Power switch 1 x Power & HDD LED 1 x Headphone jack |

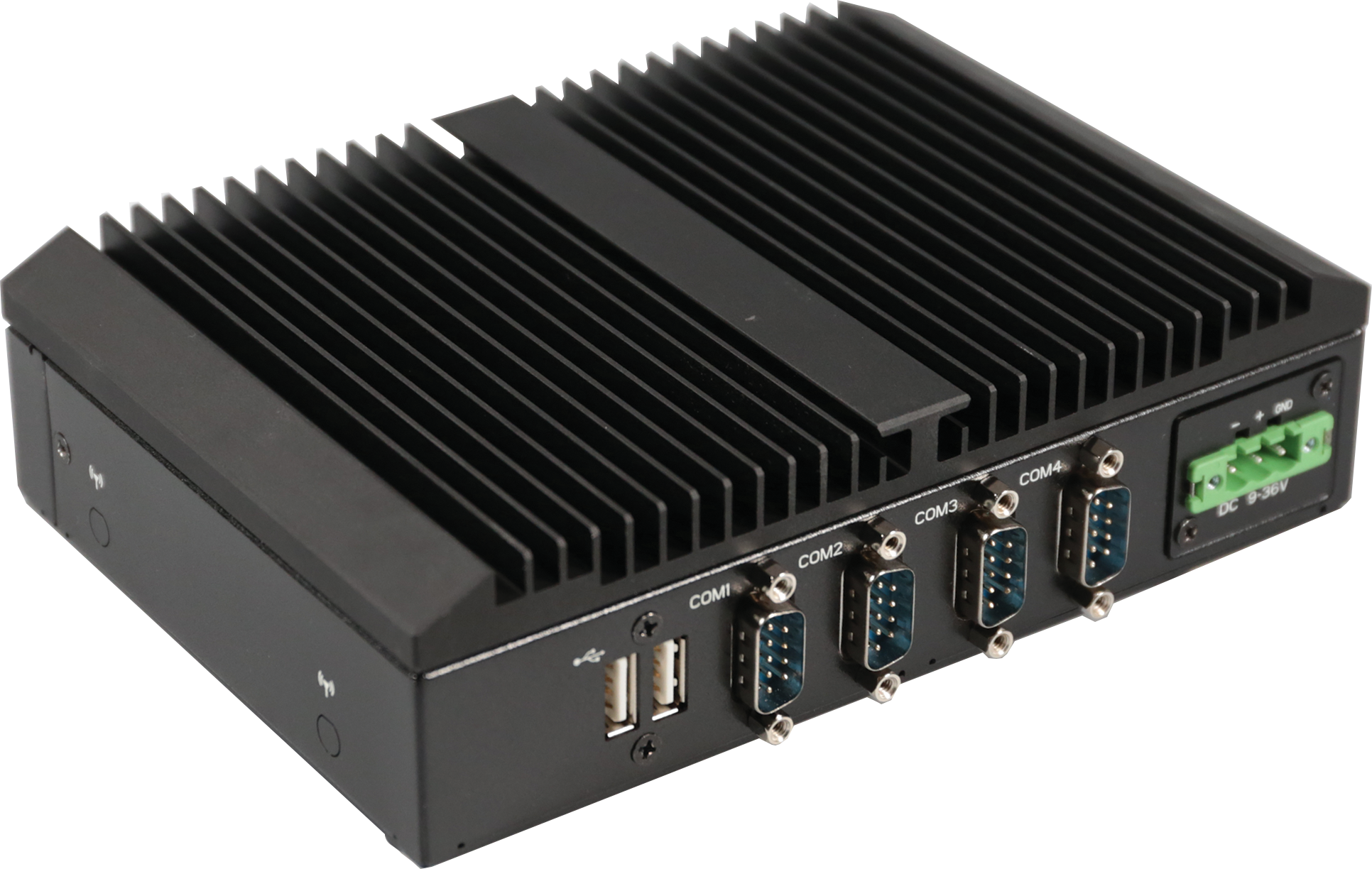

Rear I/O | 2 x USB 2.0 1 x COM port (RS422/485/232 and RI/5V/12V) 3 x COM ports (RS-232) 1 x 3 pin Terminal Block |
Side I/O | 2 x External Antenna (Optional) |
Power | +9~36VDC (Full Range) |
Operation temperature | Operating temperature: 0°C to 50°C Operating humidity: 0-90% (non-condensing) Non-operating temperature: -20°C to 70°C Non-operating humidity: 0%-95% (non-condensing) Use wide temperature range memory and storage |
Vibration During Operation | Operation: IEC 60068-2-64, 5 Grms, random, 5 ~ 500 Hz, 1 hr / Per Axis, With SSD/M.2 2242 Non-operation: IEC 60068-2-6, 2 G, Sine, 10 ~ 500 Hz, 1 Oct/min, 1 hr / Per Axis |
Shock During Operation | Operation: IEC 60068-2-27, 50 G, half sine, 11 ms duration, With SSD |
Packaging Content | Box Packing Capacity: 5pcs Carton size: 505x333x231(mm) Content: SCREW I HEAD FOR 25HDD M3x8L x 4 (P/N: 25KSG-130081-K1R) THERMAL PAD x 2 (P/N: 25ST3-200052-T5R) CABLE SATA x 1 (P/N: 25CF4-170020-S9R) TERMINAL BLOCKS MALE PLUG x 1 (P/N: 25IO0-5ESDV0-D2R) |
Mounting | Wall mount (Optional) |
Order Information | 6BQP1900AMR-SI (Box packing) |
Optional kit | TPM 2.0 module P/N: 9CTM000NR-00 TPM Cable P/N: 25CRZ-100600-S9R |
