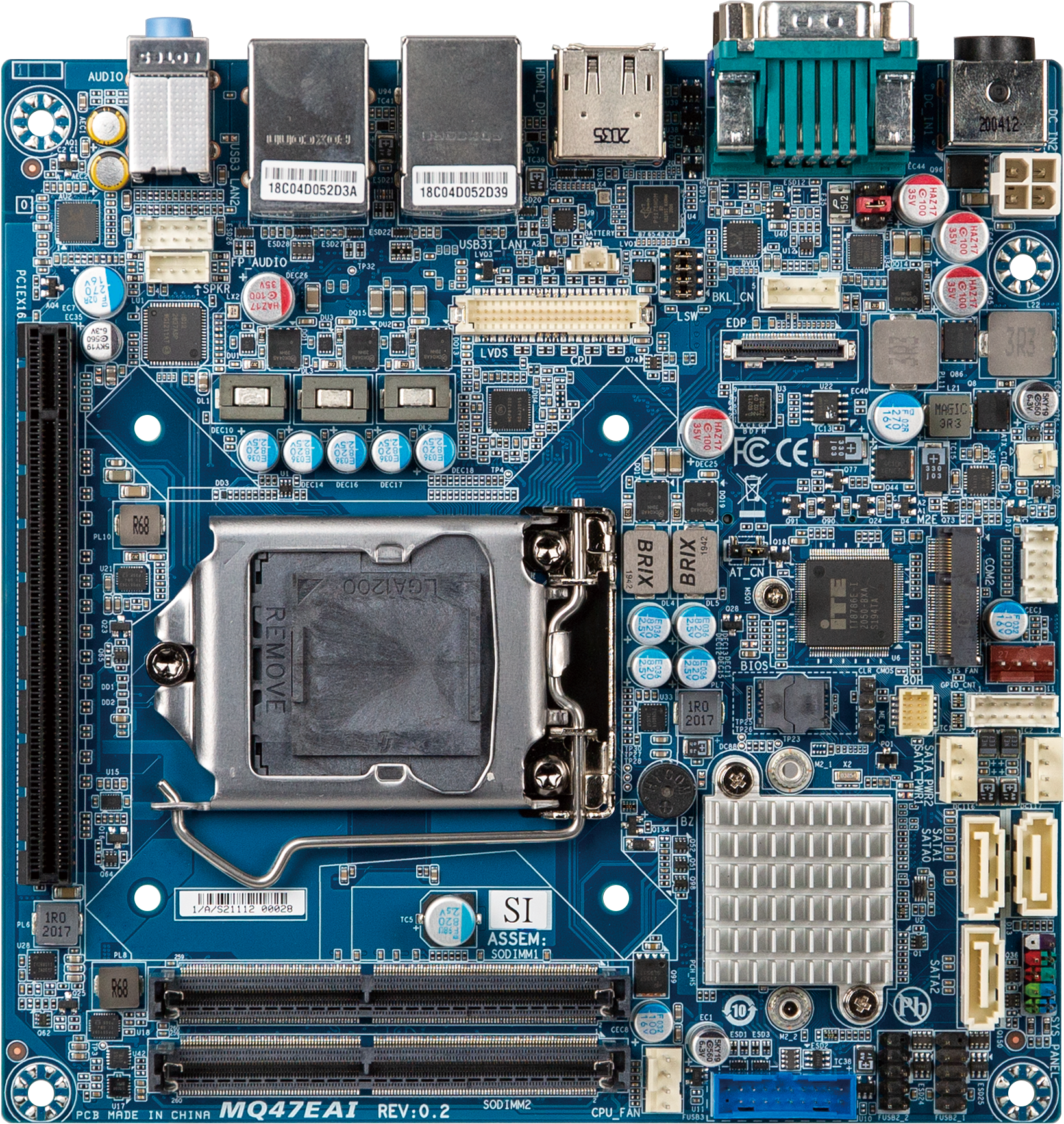

mITX-Q47EA

Mini-ITX with 10th Generation Intel® Core™ Processor, Dual Channel DDR4 memory, PCIe, 2 x COM, 10 x USB, 3 x SATA 6Gb/s

​

GIGAIPC 산업용 메인보드 Mini ITX mITX-Q47EA

기가아이피씨

산업용 메인보드, 미니 임베디드 마더보드

드라이버 & 매뉴얼 다운로드

---

Key Features

​

Mini-ITX Form Factor

Supports 10th Generation Intel® Core™ Processors

Intel® Q470E Express Chipset

Dual Channel DDR4, 2 x SO-DIMMs

2 x GbE LAN ports

3 x SATA 6Gb/s ports

HDMI, Display Port, D-Sub, LVDS/eDP Ports for Multiple Display

Realtek® ALC897 Audio Codec

1 x USB3.2 Gen2 x1 port with 10Gb/s Speed

1 x RS232/422/485 & 5V/12V/RI COM Port

1 x RS232 COM Port

---

Specification

Form Factor	Mini-ITX 170W x 170D (mm)
CPU	Support for 10th Generation Intel® Core™ i9/ i7/ i5/ i3, Pentium® and Celeron® processors in the LGA1200 package TDP under 65W L3 cache varies with CPU
Socket	1 x LGA 1200
CHIPSET	Intel® Q470E Express Chipset
MEMORY	2 x DDR4 SO-DIMM sockets, Max. Capacity 64GB Support Dual channel DDR4 2933/2666/2400 MHz memory modules
ETHERNET	2 x GbE LAN ports (Intel® i219LM and Intel® i211AT)
Video	Integrated Graphics Processor - depends on CPU: 1 x HDMI 2.0a port, supporting a maximum resolution of 4096x2160 @60Hz 1 x DP 1.4 port, supporting a maximum resolution of 4096 x 2160 @60Hz 1 x D-Sub port, supporting a maximum resolution of 1920 x 1200 @60Hz 1 x eDP port, supporting a maximum resolution of 4096 x 2160 @60Hz 1 x LVDS port, supporting a maximum resolution of 1920 x 1080 @60Hz (3 independent display outputs)
Audio	Realtek® ALC897 High Definition Audio
Storage	3 x SATA 6Gb/s ports(RAID 0/1/5/10)
EXPANSION SLOTS	1 x PCIe x16 (Gen3 x16) 1 x 2280 M.2 M-Key (PCIe Gen3 x4, SATA 6Gb/s) 1 x 2230 M.2 E-Key (PCIe x1 + USB2.0)
INTERNAL I/O	1 x 4-pin ATX main power connector 3 x SATA 6Gb/s connectors 2 x SATA power connectors 1 x CPU fan header 1 x System fan header 1 x Front panel header 1 x Front panel audio header 1 x 2W Speaker out header 4 x USB 2.0/1.1 headers 2 x USB3.0 headers 1 x COM header (RS-232) 1 x Clear CMOS jumper 1 x GPIO (8 bits) & SMBUS header 1 x Backlight Control header 1 x eDP connector 1 x PSU on header (Support ATX PSU PSU_ON) 1 x LVDS connector 1 x AT/ATX mode select jumper

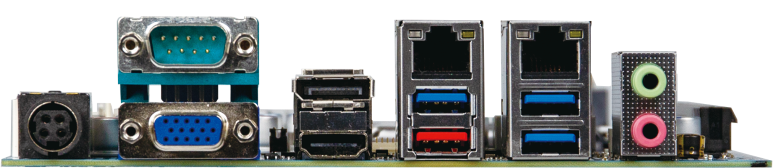

REAR I/O	2 x Audio jacks (Line out, Mic in) 1 x COM (RS-232/422/485 and RI/5V/12V) 1 x HDMI 1 x Display Port 1 x D-Sub 2 x RJ45 3 x USB3.0 1 x USB 3.2 Gen2 x1 type A 1 x DC Jack (+12V/+19V~+24VDC)
TPM	1 x TPM Header (LPC)
OS COMPATIBILITY	Windows® 10 (x64)
OPERATING PROPERTIES	Operating temperature: 0°C to 60°C Operating humidity: 0-90% (non-condensing) Non-operating temperature: -40°C to 85°C Non-operating humidity: 0%-95% (non-condensing)
Packing Content	Bulk Packing Capacity: 10pcs Carton size: 550 x 451 x 330 (mm) Content: IO Shield x 1 (12AIO-MQ47EA-10R) SATA Power cable x 2 (25CRI-300B01-K1R)
Order information	9MQ47EAINR-SI (Bulk Packing)
Optional Kit	TPM 2.0 Module: 9CTM000NR-00 TPM Cable: 25CRZ-100600-S9R
