QBiX-Pro-KBLB3965H-A1
QBiX-Pro-KBLB3965H-A1
Industrial system with Intel® Celeron® 3965U Processor/ DDR4 2133MHz up to 32G / M.2 slots / 2.5" HDD/SSD (SATA 6Gb/s)
GIGAIPC 산업용 임베디드 QBiX-PLUS-KBLA7100-A1
기가아이피씨
헬스케어, 키오스크, 산업 자동화 IoT 시스템
Key Features
System Size : 178W x 125D x 52.7H (mm)
Intel® Celeron® 3965U Processor
Dual Channel DDR4, 2 x SO-DIMMs
HDMI, Display port for Dual display
2 x GbE LAN ports
Application
Embedded & Industrial Applications
Factory Automation
KIOSK / POS
Healthcare
Specification
QBiX Pro Series of GIGAIPC embedded system is implemented with GIGAIPC QBi Pro (3.5" SubCompact Board). Its fan-less design reduces the risk of fan failure and maintainance efforts. The aluminium heatsink and ruggedized chassis enhanced the ability to work in harsh environment. The Compact size can easily be designed in any applications in limited space, such as factory automation, industrial controller / Surveillance systems and IoT Gateway. Furthermore, it can be a computing solution dedicated to thin client, POS, KIOSK for commercial market.
QBiX-Pro-KBLB3965H-A1 is powered by Intel® Celeron® 3965 processor, to support DDR4 2133MHz up to 32G. It is designed with full range 9-36V DC power inputs for operating temperature of 0°C~50°C and rich I/O interfaces and expansion M.2 slots to fit in various applications. The system supports 2.5" HDD/SSD (SATA 6Gb/s) with vibration resistance of 5 Grms/5~500Hz and shock endurance to 50G/11ms, to meet industrial standard.
Dimension | 178W x 125D x 52.7H(mm) |
CPU | Intel® Celeron® Processor 3965U 14nm, 2 cores, 2 threads, up to 2.2 GHz TDP 15W 2 MB SmartCache |
CHIPSET | SoC |
Memory | 2 x DDR4 SO-DIMM sockets, Max. Capacity 32 GB Support Dual Channel DDR4 2133MHz memory modules |
Ethernet | 2 x GbE LAN ports (Intel® i219V and Intel® i211AT) |
Graphic support | Integrated Graphics Processor - Intel® HD Graphics 610: 1 x HDMI 2.0 port, supporting a maximum resolution of 4096x2160 @24Hz 1 x DP port, supporting a maximum resolution of 4096x2160 @60Hz (2 independent display outputs) |
Audio | Realtek® Audio Codec |
Storage | 1 x 2.5” HDD/SSD (SATA 6Gb/s) |
Expansion Slots | 1 x 2280 M.2 M-Key (SATA 6Gb/s) 1 x 2230 M.2 E-Key (WiFi/BT) 1 x Full-size Mini PCIe with SIM slot (PCIe x1 + USB2.0) -- support 3G/4G module |

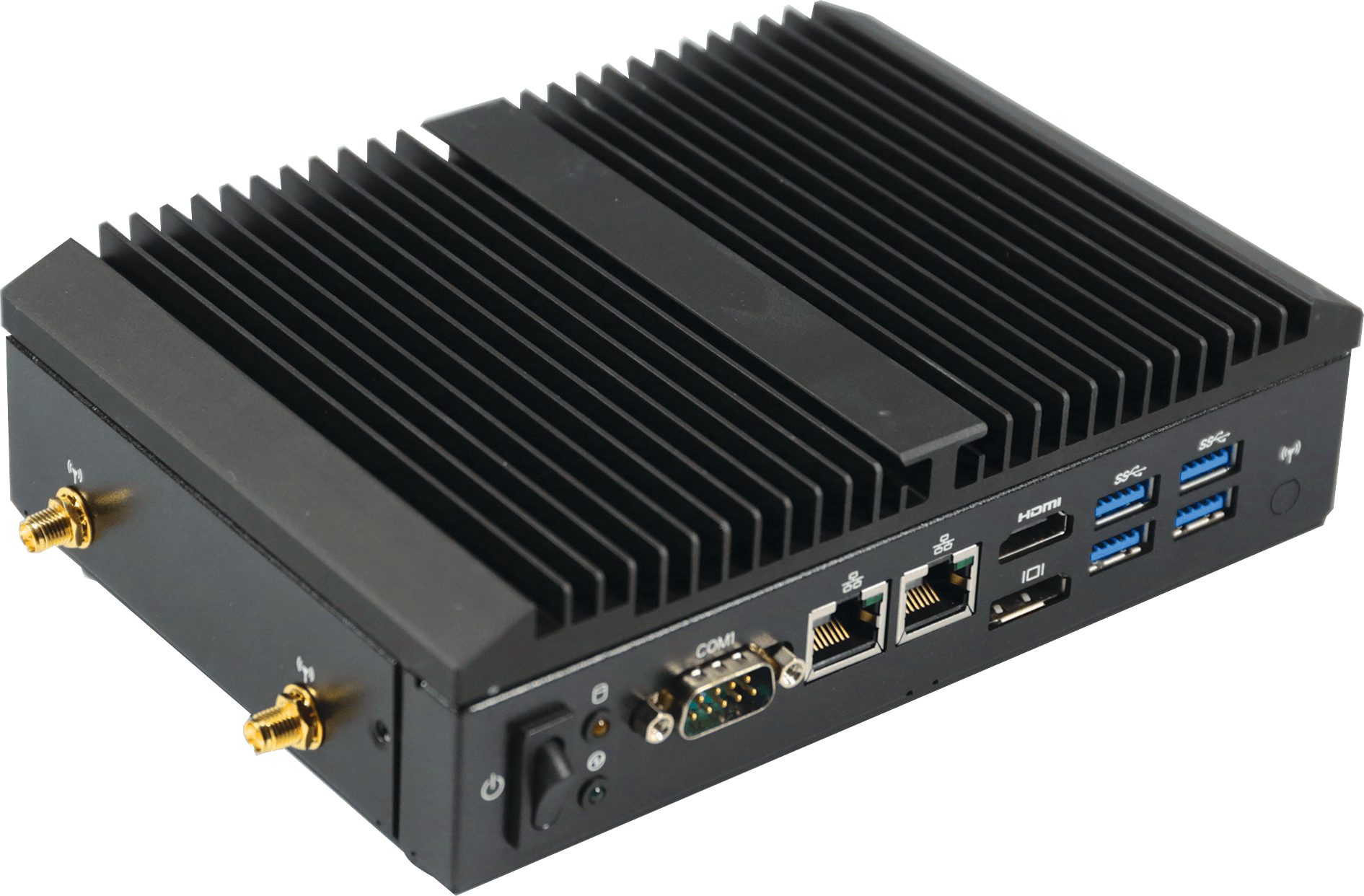

Front I/O | 2 x RJ45 LAN ports 4 x USB 3.0 1 x HDMI 1 x Display Port 1 x Power switch 1 x Power & HDD LED 1 x COM port (RS-422/485/232 and RI/5V/12V) |

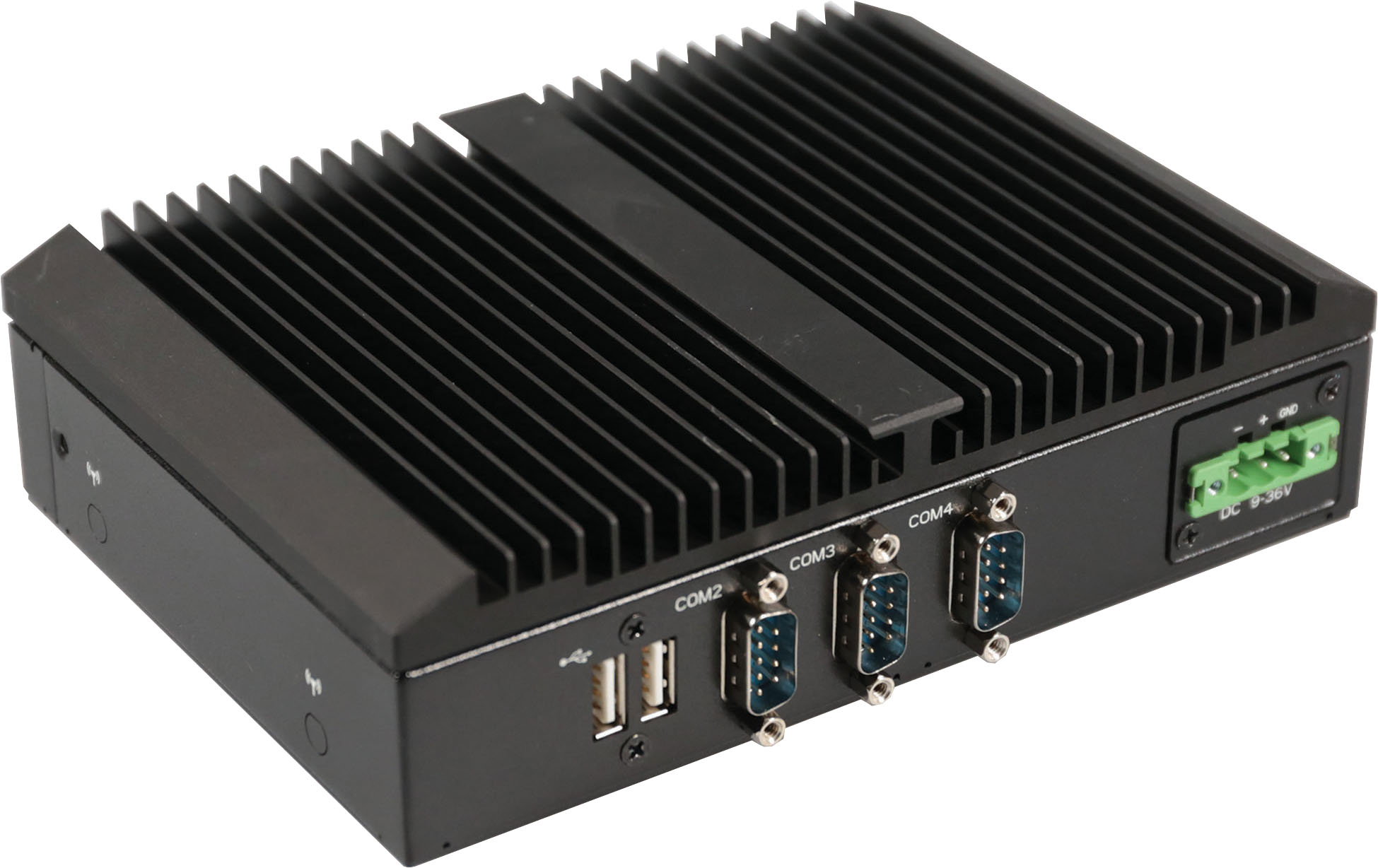

Rear I/O | 2 x USB 2.0 3 x COM Ports (RS-232) 1 x 3 pin Terminal Block |
Side I/O | 2 x External Antenna Hole (Optional) |
POWER | +9~36VDC Full Range |
Operation temperature | Operating temperature: 0°C to 50°C Operating humidity: 0-90% (non-condensing) Non-operating temperature: -20°C to 70°C Non-operating humidity: 0%-95% (non-condensing) Use wide temperature range memory and storage |
Vibration During Operation | Operation: IEC 60068-2-64, 5 Grms, random, 5 ~ 500 Hz, 1 hr / Per Axis, With SSD/M.2 2280 Non-operation: IEC 60068-2-6, 2 G, Sine, 10 ~ 500 Hz, 1 Oct/min, 1 hr / Per Axis |
Shock During Operation | Operation: IEC 60068-2-27, 50 G, half sine, 11 ms duration, With SSD |
Packaging Content | Box Packing Capacity: 5pcs Carton size: 505x333x231(mm) Content: SCREW I HEAD FOR 25HDD M3x8L x 4 (P/N: 25KSG-130081-K1R) THERMAL PAD x 2 (P/N: 25ST3-200052-T5R) THERMAL PAD x 1 (P/N: 25ST3-200053-T5R) THERMAL PAD x 1 (P/N: 25ST3-200051-T5R) CABLE SATA x 1 (P/N: 25CF4-070020-S9R) TERMINAL BLOCKS MALE PLUG x 1 (P/N: 25IO0-5ESDV0-D2R) |
Mounting | Wall mount (Optional) |
Order Information | 6BQP3965AMR-SI (Box packing) |
Optional kit | TPM 2.0 module P/N: 9CTM000NR-00 TPM Cable P/N: 25CRZ-100600-S9R |
