QBi-8665A
Embedded Compact Board with Intel® i7-8665UE Processor, Dual Channel DDR4 memory, 1 x COM , 1 x SATA 6Gb/s, 6 x USB
GIGAIPC 산업용 메인보드 QBi-8665A
기가아이피씨
산업용 메인보드, 미니 임베디드 마더보드
Key Features
Embedded IPC Motherboard
Intel® Core™ i7-8665UE Processor
Dual Channel DDR4, 2 x SO-DIMMs
2 x GbE LAN Ports
1 x SATA 6Gb/s Port
Ultra-Fast M.2 with PCIe Gen3 x4 Interface
2 x HDMI, eDP ports for multiple display
1 x COM Port (RS-232/422/485)
Specification
|
Form Factor
|
Embedded Compact Board
105W x 110D (mm)
|
|
CPU
|
Intel® Core™ i7-8665UE Processor
14nm, 4 cores, 8 threads, up to 4.40 GHz
vPro support, TDP 15W
|
|
Socket
|
1 x FCBGA1528
|
|
Memory
|
2 x DDR4 SO-DIMM sockets, Max. Capacity 32 GB
Support for DDR4 2400 MHz memory modules
|
|
Ethernet
|
2 x GbE LAN Ports
(Intel® I219LM and Realtek® RTL8111HS)
|
|
Video
|
Integrated Graphics Processor - Intel® UHD Graphics 620 :
2 x HDMI 1.4 port, supporting a maximum resolution of 4096x2304 @24Hz
1 x eDP port, supporting a maximum resolution of 4096x2304 @60Hz
*Support up to 3 displays at the same time
|
|
Audio
|
Realtek® Audio Codec
|
|
Storage
|
1 x SATA 6Gb/s Port (RAID 0/1)
|
|
Expansion Slots
|
1 x 2280 M.2 M-Key (PCIe x4, SATA 6Gb/s)
1 x 2230 M.2 E-Key
|
|
Internal I/O
|
1 x 2-pin power connector
1 x SATA Power header/optional for eDP Power
1 x CPU fan header
1 x Front panel header
1 x Front panel audio header/optional for GPIO (8 bits) & SMBUS header
1 x USB 2.0 header
1 x Vertical USB 3.2 Gen 1
|
|
Front I/O
|
2 x USB 3.2 Gen 2x1
1 x Power button
1 x COM Port (RS-232/422/485)
|
|

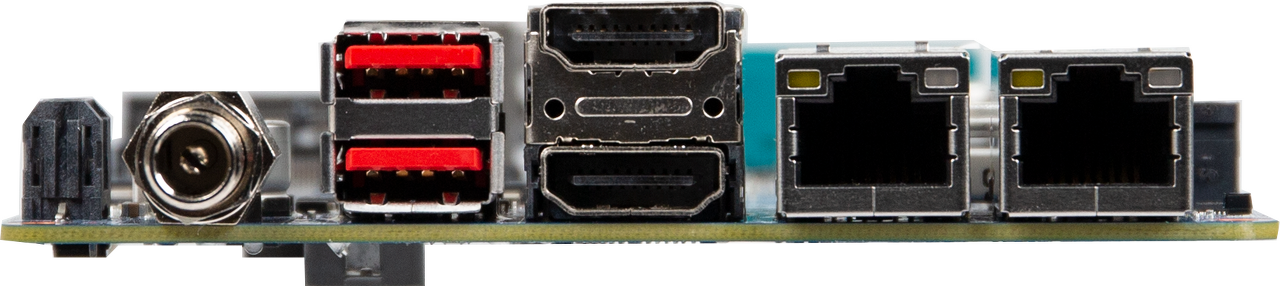

Rear I/O
|
2 x HDMI
2 x RJ45 LAN Ports
2 x USB 3.2 Gen 2x1
1 x Screw type DC Jack (+9~36VDC)
|
|
OS Compatibility
|
Windows 10 (x64)
|
|
Operating Properties
|
Operating temperature: 0°C to +60°C
Operating humidity: 0-90% (non-condensing)
Non-operating temperature: -40°C to +85°C
Non-operating humidity: 0%-95% (non-condensing)
|
|
Packing Content
|
Carton size: 465 x 351 x 217 (mm)
Packing Capacity: 10pcs
Single Box size: 221 x 178 x 65 (mm)
Including:
SATA power cable 150mm x 1 (P/N: 25CRI-150621-K1R)
|
|
Order Information
|
9MWHLUDHMR-SI (Box Packing)
|
|
Optional Kit
|
Fanless Heatsink P/N: 25ST1-123118-AFR
TPM 2.0 module P/N: 9CTM000NR-00
TPM Cable P/N: 25CRZ-100600-S9R
|
